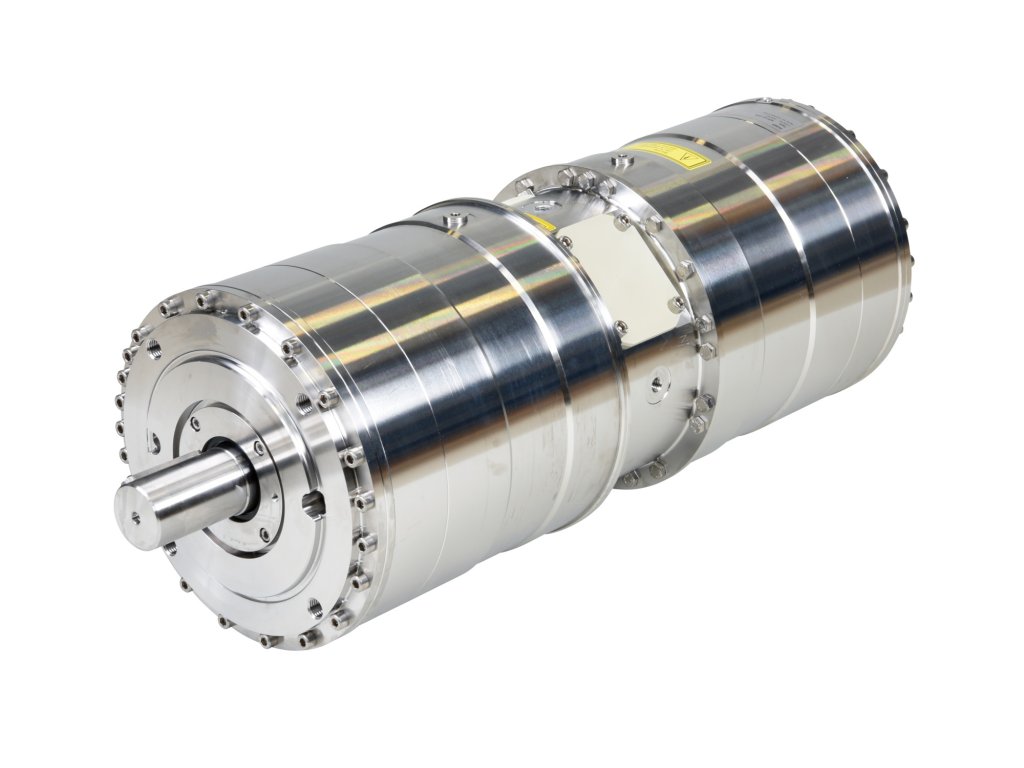

APP 65/1500
Kód: 180B7807Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | APP 53-92 |
|---|---|
| Hmotnost: | 178.36 kg |
| EAN: | 5715162669839 |
| Flow [gpm] [Min]: | 124.000 |
| Outlet connection standard: | Flange |
| Inlet connection standard: | Flange |
| Outside dimensions of packaging LxWxH [in]: | 35,2x16,7x19,5 |
| Outlet pressure [barg] [Max]: | 83 |
| Outside dimensions of packaging LxWxH [mm]: | 897x426x496 |
| Outlet connection type: | Flange |
| Cable length (EF000536): | 0 |
| Outlet pressure [barg] [Min]: | 30 |
| UL mark: | No |
| Media temperature [°F] [Max]: | 122 |
| Media temperature [°F] [Min]: | 36 |
| Displacement [in³/rev]: | 47.30 |
| Drain connection size [in]: | 0.250 |
| Speed [rpm] [Max]: | 1500 |
| Speed continuous [rpm] [Min]: | 700 |
| Speed [rpm] [Min]: | 700 |
| Outlet pressure [psig] [Max]: | 1200 |
| Weight (EF000167): | 230.50 |
| Flow [l/min] [Max]: | 1133.33 |
| Outlet pressure [psig] [Min]: | 435 |
| Flow [l/min] [Min]: | 533.33 |
| Flow [gpm] [Max]: | 299.000 |
| Seal Material: | NBR |
| Drain connection standard: | BSPP |
| Country of origin: | Denmark |
| Ambient temperature [°C] [max]: | 50 |
| Body material: | Duplex |
| Drain connection type: | Thread |
| Media temperature [°C] [Min]: | 2 |
| Flow [m³/h] [Min]: | 32.00 |
| Outlet connection size [in]: | 3 in |
| Product description: | APP pumps |
| Inlet pressure [psig] [Max]: | 72.5 |
| China RoHS compliance: | Out of scope |
| Inlet pressure [psig] [Min]: | 29.0 |
| Ambient temperature [°C] [min]: | 0 |
| In scope of WEEE: | No |
| Approval: | CE |
| Type designation: | APP 65/1500 |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 3 in |
| Contains batteries: | No |
| CE mark: | Yes |
| Ambient temperature [°F] [min]: | 32 |
| EU RoHS compliance: | Out of scope |
| Media temperature [°C] [Max]: | 50 |
| Flow [m³/h] [Max]: | 68.00 |
| Medium temperature (continuous) (EF023182): | 50-50 |
| Inlet pressure peak [psig] [Max]: | 145 |
| Inlet pressure peak [barg] [Max]: | 10 |
| Inlet pressure [barg] [Max]: | 5.0 |
| Inlet pressure [barg] [Min]: | 2.0 |
| ATEX compliance: | No |
| Displacement [cm³/rev]: | 778.00 |
| Inlet connection type: | Flange |
| Explosion-proof (EF004663): | FALSE |
| Ambient temperature [°F] [max]: | 122 |
-
Suez and Danfoss retrofit containerized SWRO unit in Aruba to save energy and maintenance: Popis řešení
-
APP and iSave overload protection: Konstrukční příručka
-
Data sheet APP 53-92 pumps: Datový list
-
Mount and pump assembly APP 53-86: Instalační příručka
-
Pump instruction APP 53-92: Instalační příručka
-
Piping connections: Konstrukční příručka
-
Trouble shooting APP and iSave in a SWRO plant: Servisní příručka
-
Veolia Water Technologies and Danfoss retrofit municipal water plant to save 57 in energy: Popis řešení
-
Pressure Safety Valve in a seawater RO system: Konstrukční příručka
-
APP 53-92 and APP S 53-86 and APP S 674 53-86 Disassembling and assembling: Servisní příručka
-
APP pumps APP 53 / APP 65 / APP 78 / APP 86 / APP 92 Installation, Operation and Maintenance Manual: Provozní příručka
-
APP Pumps APP 53 / APP 65 / APP 78 / APP 86 / APP 92 Parts list: Servisní příručka
