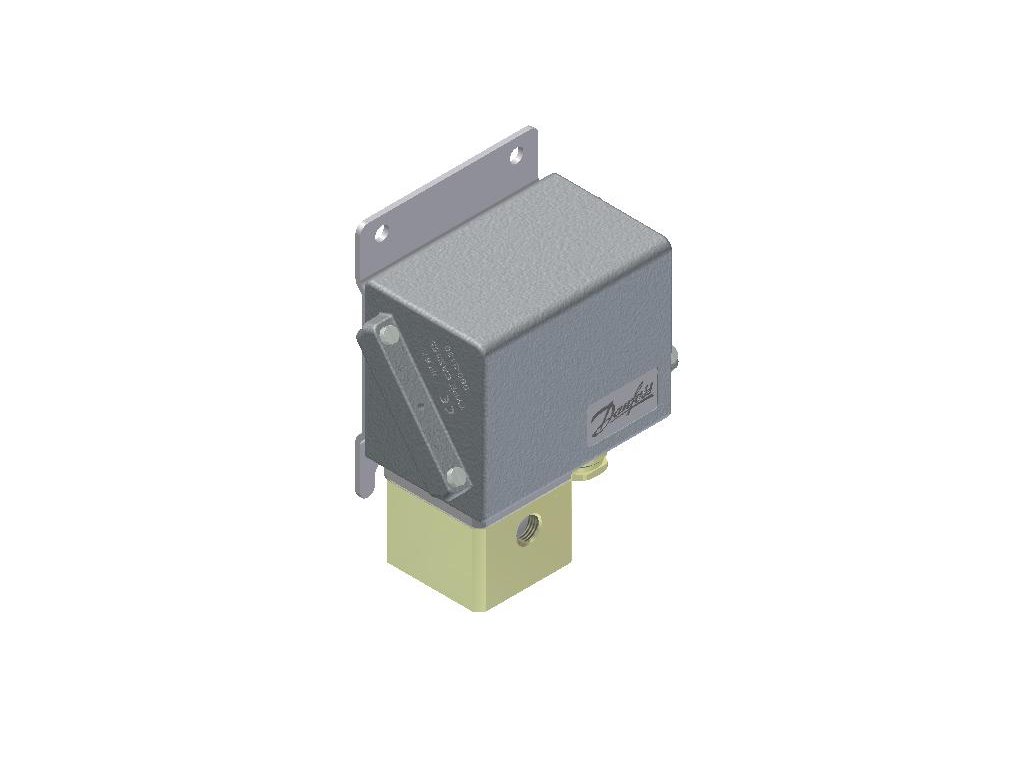

Diferenční presostat, CAS155
Kód: 060-313066Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | CAS |
|---|---|
| Hmotnost: | 1.55 kg |
| EAN: | 5702423151646 |
| Burst pressure [bar]: | 42.0 |
| Electrical conn. comments: | Metal cable gland |
| Diff.press.setting range [bar] [max]: | 2.50 |
| Ambient temperature range [°F] [min]: | -13 |
| Operat. range LP side [bar] Pe [max]: | 8 |
| Electrical connection size: | Pg 13.5 |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Height (EF000040): | 93 |
| Contact function: | SPDT |
| SCIP dossier no.: | f4e4e76b-9bf8-4e7b-bd0f-832fce3375ac |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 319.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 141 |
| Contact differential [bar]: | 0.10 |
| Electrical connection: | Screwed cable entry |
| Max. operating pressure (EF020449): | 22.0 |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -25 |
| Max. test pressure [bar] Pe: | 22.0 |
| Product accessories: | Generic accessories |
| Pressure Male/Female: | Female |
| Operat. range LP side [psig]Pe [max]: | 115 |
| Depth (EF000049): | 192 |
| Contact rating: | AC15=0.1 A, 220 V, DC13=12 W, 125 V |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/4 inch |
| Diff.press.setting range [MPa] [min]: | 0.02 |
| Operat. range LP side [psig]Pe [min]: | 0 |
| Product description: | Diff. Pressure Switch |
| China RoHS compliance: | Out of scope |
| Operat. range LP side [bar] Pe [min]: | 0 |
| Packing format: | Multi pack |
| Approval: | ABS, BV, CCC, CE, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK |
| Diff.press.setting range [bar] [min]: | 0.20 |
| Diff.press.setting range [MPa] [max]: | 0.25 |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 22.0 |
| Diff.press.setting range [psi] [max]: | 36.2 |
| Ambient temperature range [°C] [max]: | 70 |
| Diff.press.setting range [psi] [min]: | 2.9 |
| Degree of protection (IP) (EF005474): | IP67 |
| SCIP dossier product name: | CAS Pressure Switch |
| Relay release time [s]: | 0 |
| Quantity per packing format: | 8 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 319 |
| Explosion-proof (EF004663): | FALSE |
-
Pressure switch and Thermostat, type CAS: Datový list
-
EPD for Pressure Switch. CAS 133- CAS 155: Informace o životním prostředí produktu
-
Differencial pressure switch, type CAS 155: Instalační příručka
