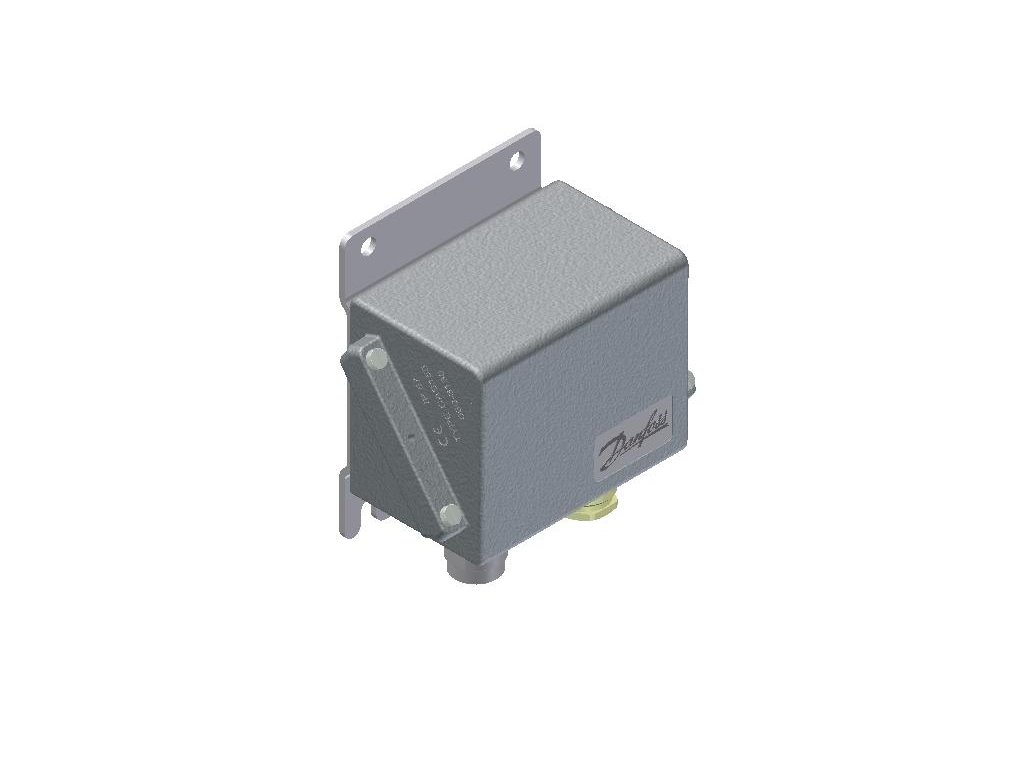

Presostat, CAS136
Kód: 060-315166Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Tlakové spínače CAS |
|---|---|
| Hmotnost: | 0.93 kg |
| EAN: | 5702423151639 |
| Burst pressure [bar]: | 40.0 |
| Differential [psi]: | 2.90 |
| Electrical conn. comments: | Metal cable gland |
| Ambient temperature range [°F] [min]: | -40 |
| Electrical connection size: | Pg 13.5 |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Height (EF000040): | 93 |
| Contact function: | SPDT |
| SCIP dossier no.: | f4e4e76b-9bf8-4e7b-bd0f-832fce3375ac |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 319.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 141 |
| Electrical connection: | Screwed cable entry |
| Max. operating pressure (EF020449): | 22.0 |
| Serviceable: | No |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Regulation range [psig] Pe [min]: | 0.00 |
| Regulation range [bar] Pe [max]: | 10.00 |
| Max. test pressure [bar] Pe: | 22.0 |
| Product accessories: | Switches accessories |
| Regulation range [bar] Pe [min]: | 0.00 |
| Pressure Male/Female: | Female |
| Depth (EF000049): | 192 |
| Contact rating: | AC15=0.1 A, 220 V, DC13=12 W, 125 V |
| Differential [bar]: | 0.20 |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/4 inch |
| Product description: | Pressure Switch |
| China RoHS compliance: | Yes |
| Packing format: | Multi pack |
| Approval: | ABS, BV, CCC, CE, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 22.0 |
| Pressure sensing element: | Bellows |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP) (EF005474): | IP67 |
| SCIP dossier product name: | CAS Pressure Switch |
| Regulation range [psig] Pe [max]: | 145.00 |
| Quantity per packing format: | 8 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 319 |
| Explosion-proof (EF004663): | FALSE |
-
