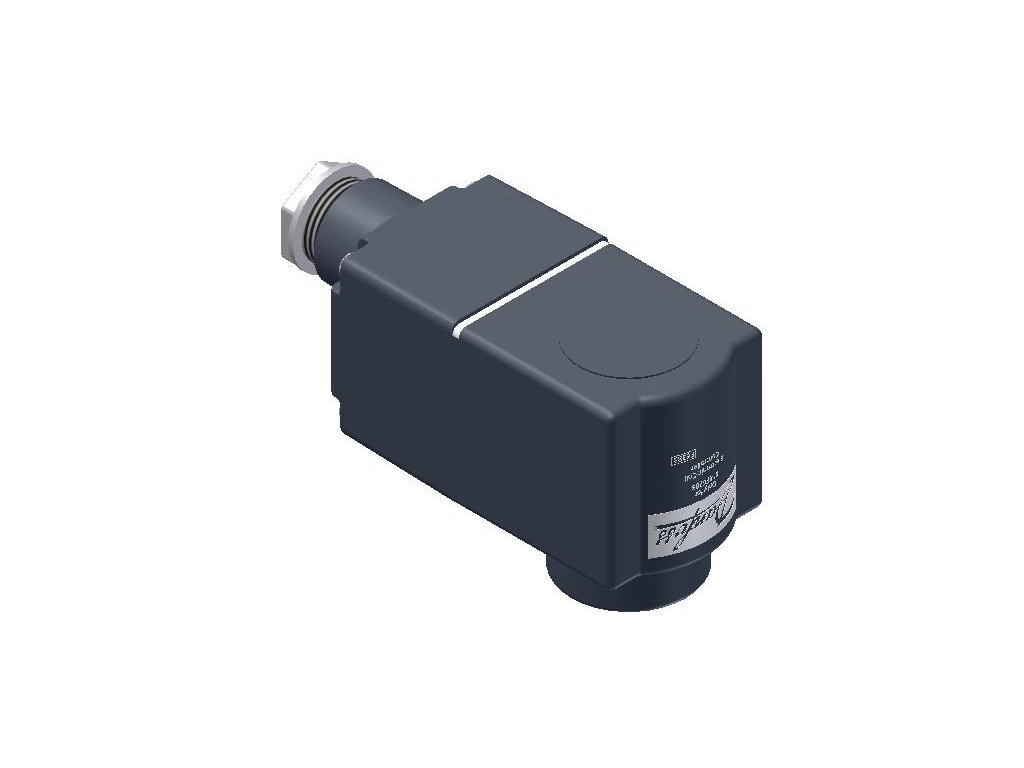

Cívka solenoidu, BE240CS, Svorkovnice, Napájecí napětí [V] AC: 208 - 240, Multi balení

Kód: 018F6783

Neohodnoceno

1 600 Kč 1 322 Kč bez DPH

Momentálně nedostupné

Zobrazit všechny související produkty

Popis produktu není dostupný

Kategorie:	BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP
Hmotnost:	0.37 kg
EAN:	5702428490207
Colour:	Blue
Type of accessory/spare part (EF000215):	Other
Ambient temperature range [°F] [min]:	-13
Actuator size:	13.5 mm
China RoHS exemption clause:	No
Electrical connection size:	Pg 13.5
China RoHS compliance:	Out of scope
Supply voltage 60Hz Max [V]:	240
Spare part number:	018F6783
Packing format:	Multi pack
In scope of WEEE:	Yes
Approval:	CE, EAC, LLC CDC TYSK
Supply voltage [V] AC [max]:	240
Power consumption [W] 50Hz:	4.0
Type designation:	BE240CS
Power consumption [W] 60Hz:	4.0
REACH Candidate List substances:	No
Coil fastening:	Clip-on
Supply voltage 50Hz Max [V]:	240
Contains batteries:	No
CE mark:	Yes
Frequency [Hz]:	50/60 Hz
EU RoHS exemption clause:	No
Supply voltage 60Hz Min [V]:	208
EU RoHS compliance:	Yes
Electrical connection:	Terminal box
Supply voltage 50Hz Min [V]:	208
Spare part (EF013237):	TRUE
Enclosure rating IP:	IP67
Ambient temperature range [°C] [min]:	-25
Supply voltage [V] AC [min]:	208
Ambient temperature range [°C] [max]:	55
Used for product:	AKV10, AKVH10
Accessory (EF013236):	TRUE
SCIP dossier product name:	AKV 20/EVR 32-40/EVRH 40
Parts Program name:	EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV227B, EV250B, EV251B
EEE category:	5 small equipment (any external dimension <lt/> 50 cm)
Quantity per packing format:	30
Ambient temperature range [°F] [max]:	130
