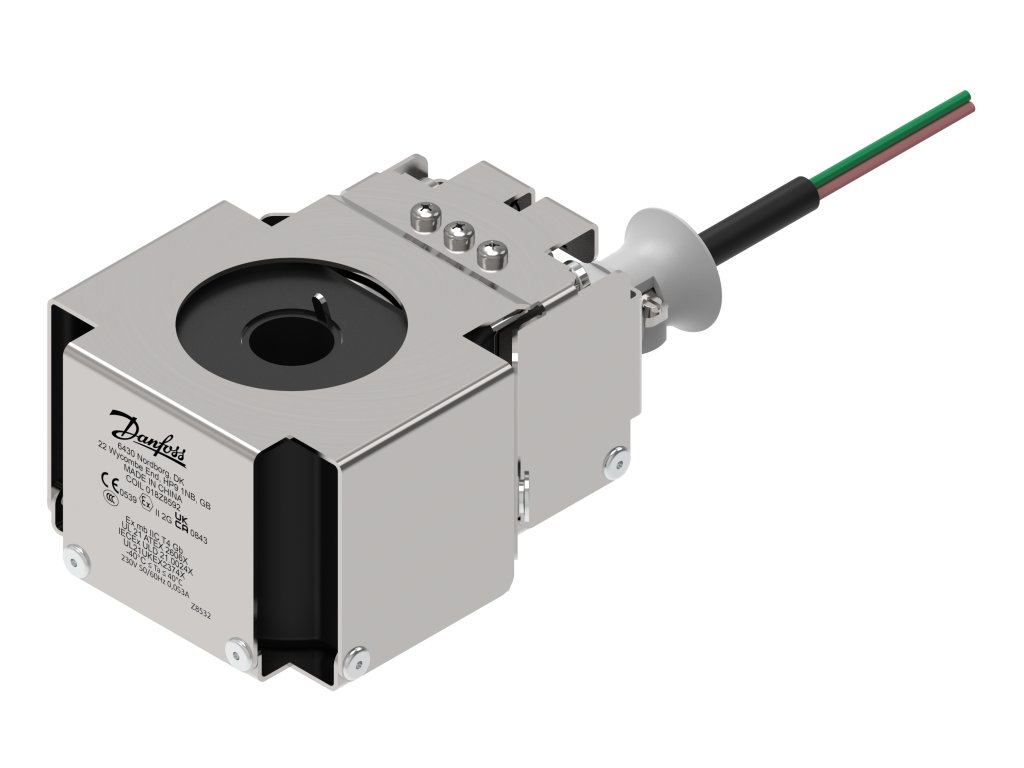

Cívka solenoidu, BI230C, Kabel, Napájecí napětí [V] AC: 230, Multi balení
Kód: 018Z8586Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BI |
|---|---|
| Hmotnost: | 1.07 kg |
| EAN: | 5702424618506 |
| Electrical conn. comments: | Earth conn. wiring <gt/> 4 mm2 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | Cable |
| Supply voltage [V] AC: | 230 |
| Supply voltage 60Hz Max [V]: | 230 |
| Enclosure rating Nema (~): | 6 |
| Coil fastening: | Finger screw |
| Rel. Humidity [% RH] [max]: | 97 |
| Supply voltage 50Hz Max [V]: | 230 |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Class H to IEC 85 |
| Electrical connection: | Cable |
| Serviceable: | No |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Cable length [in]: | 196.00 |
| Electrical connector: | 3 core cable |
| Product accessories: | Solenoid coil accessories |
| Parts included: | IP67 seal kit |
| Parts Program name: | AKV10P/PS, AKV15, AKV20, AKVA, EV210B 1,5 - 25, EV210BW 1,5 - 25, EV220B 6 - 100, EV220BW 15 -50, EV221BW 6 - 22, EV222B 15 - 50, EV250B 6 - 22, EV250BW 6 - 22, EV251B 10 - 22, EVM, EVM NO and NC, EVR NC 2 - 40, EVR NO 3 - 40, EVRA(T) 3 - 40, EVRB, EVRF, EVRP, EVRS(T) 3 - 20, ICF 15-65, VDH 2 - 120, VDHT xx, VPH 15 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Conductor area [mm2]: | 3 x 0.75 mm2 |
| Colour: | Black |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 13.5 mm |
| Cable length [m]: | 5.000 |
| EX Sales text: | -40C<lt/>ta<lt/>+40C, DEMKO 01 ATEX127938X, Ex mb IIC T4 Gb, IECEx ULD 21.0024X, UL 21 ATEX 2606X, UL21UKEX2374X |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | ATEX - Cat. 2 - Zone 1 |
| Power consumption [W] 50Hz: | 12.5 |
| Type designation: | BI230C |
| Power consumption [W] 60Hz: | 12.5 |
| REACH Candidate List substances: | No |
| Duty rating: | Continuous |
| Contains batteries: | No |
| Frequency [Hz]: | 50/60 Hz |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Spare part (EF013237): | TRUE |
| Ambient temperature range [°C] [max]: | 40 |
| Accessory (EF013236): | TRUE |
| Earth connection: | Ext. Terminal, Green/yellow wire |
| Quantity per packing format: | 10 |
| Ambient temperature range [°F] [max]: | 104 |
-
Solenoid coil Type BI: Datový list
-
Solenoid coil for control in potentially explosive areas Type BI: Instalační příručka
