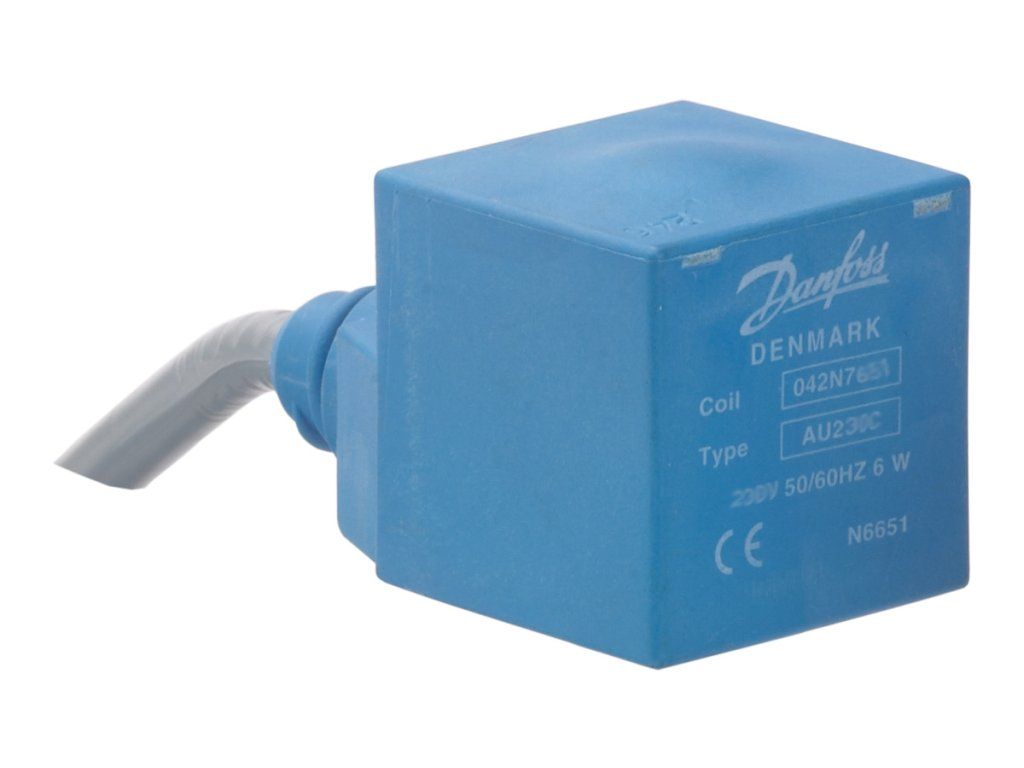

Cívka solenoidu, AU230CS, Kabel, 1 m, Napájecí napětí [V] AC: 230, Multi balení
Kód: 042N7651Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | AU |
|---|---|
| Hmotnost: | 0.16 kg |
| EAN: | 5702428023955 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | Cable |
| Supply voltage [V] AC: | 230 |
| Supply voltage 60Hz Max [V]: | 230 |
| Spare part number: | 042N7651 |
| Power consumption 60Hz [VA]: | 10.0 |
| Coil fastening: | Clip-on |
| Rel. Humidity [% RH] [max]: | 100 |
| Supply voltage 50Hz Max [V]: | 230 |
| Rel. Humidity [% RH] [min]: | 0 |
| Identical product: | 042N8651 |
| Electrical connection: | Cable |
| Serviceable: | No |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Cable length [in]: | 40.00 |
| Electrical connector: | 3 core cable |
| Product accessories: | Solenoid coil accessories |
| Power consumption 50Hz [VA]: | 14.0 |
| Parts Program name: | EV220S |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Conductor area [mm2]: | 3 x 0.75 mm2 |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 9 mm |
| Cable length [m]: | 1.000 |
| Compliance: | EN 60730-1 |
| China RoHS compliance: | Yes |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | LLC CDC TYSK |
| Power consumption [W] 50Hz: | 7.0 |
| Type designation: | AU230CS |
| Power consumption [W] 60Hz: | 5.0 |
| REACH Candidate List substances: | No |
| Contains batteries: | No |
| Frequency [Hz]: | 50/60 Hz |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Spare part (EF013237): | TRUE |
| Ambient temperature range [°C] [max]: | 50 |
| Accessory (EF013236): | TRUE |
| Quantity per packing format: | 24 |
| Ambient temperature range [°F] [max]: | 122 |
