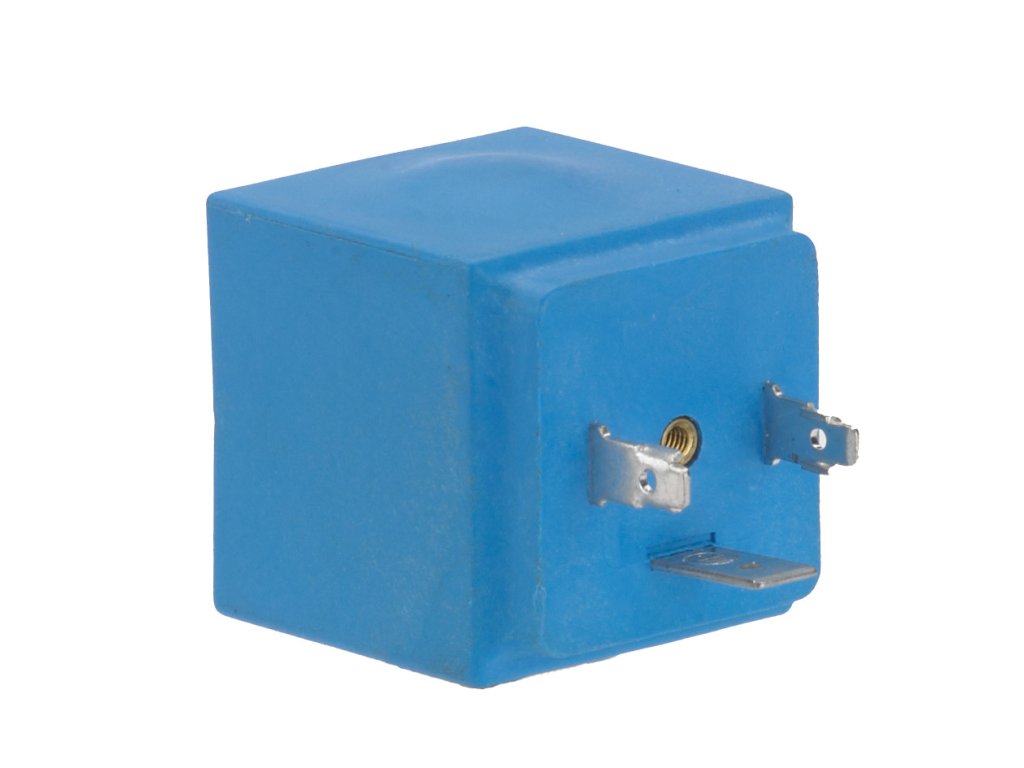

Cívka solenoidu, AZ240CS, Štítek DIN, Napájecí napětí [V] AC: 208 - 240, Průmyslové balení
Kód: 042N8201Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.11 kg |
| EAN: | 5702428053945 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | DIN Spade |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| Supply voltage 60Hz Max [V]: | 240 |
| Spare part number: | 042N4201 |
| UL mark: | Yes |
| Power consumption 60Hz [VA]: | 14.0 |
| Coil fastening: | Clip-on |
| Rel. Humidity [% RH] [max]: | 97 |
| Supply voltage 50Hz Max [V]: | 230 |
| Rel. Humidity [% RH] [min]: | 0 |
| Identical product: | 042N4201 |
| Electrical connection: | DIN Spade |
| Serviceable: | No |
| Enclosure rating IP: | IP00 |
| Ambient temperature range [°C] [min]: | -40 |
| Supply voltage [V] AC [min]: | 208 |
| Electrical connector: | 3 x spades |
| Product accessories: | Solenoid coil accessories |
| Power consumption 50Hz [VA]: | 16.0 |
| Parts Program name: | EV220S |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 9 mm |
| Compliance: | EN 60730-1 |
| China RoHS compliance: | Yes |
| Packing format: | Industrial pack |
| In scope of WEEE: | Yes |
| Approval: | LLC CDC TYSK, cURus |
| Supply voltage [V] AC [max]: | 240 |
| Power consumption [W] 50Hz: | 8.0 |
| Type designation: | AZ240CS |
| Power consumption [W] 60Hz: | 7.0 |
| REACH Candidate List substances: | No |
| Electrical connection standard: | EN175301-803 |
| Contains batteries: | No |
| Frequency [Hz]: | 50/60 Hz |
| EU RoHS exemption clause: | No |
| Supply voltage 60Hz Min [V]: | 208 |
| EU RoHS compliance: | Yes |
| Spare part (EF013237): | TRUE |
| Rel. Humidity conditions: | Non-condensation |
| Ambient temperature range [°C] [max]: | 50 |
| Accessory (EF013236): | TRUE |
| UL approval file name: | MH29671 |
| SCIP dossier product name: | Solenoid coils |
| Quantity per packing format: | 40 |
| Ambient temperature range [°F] [max]: | 120 |
-
