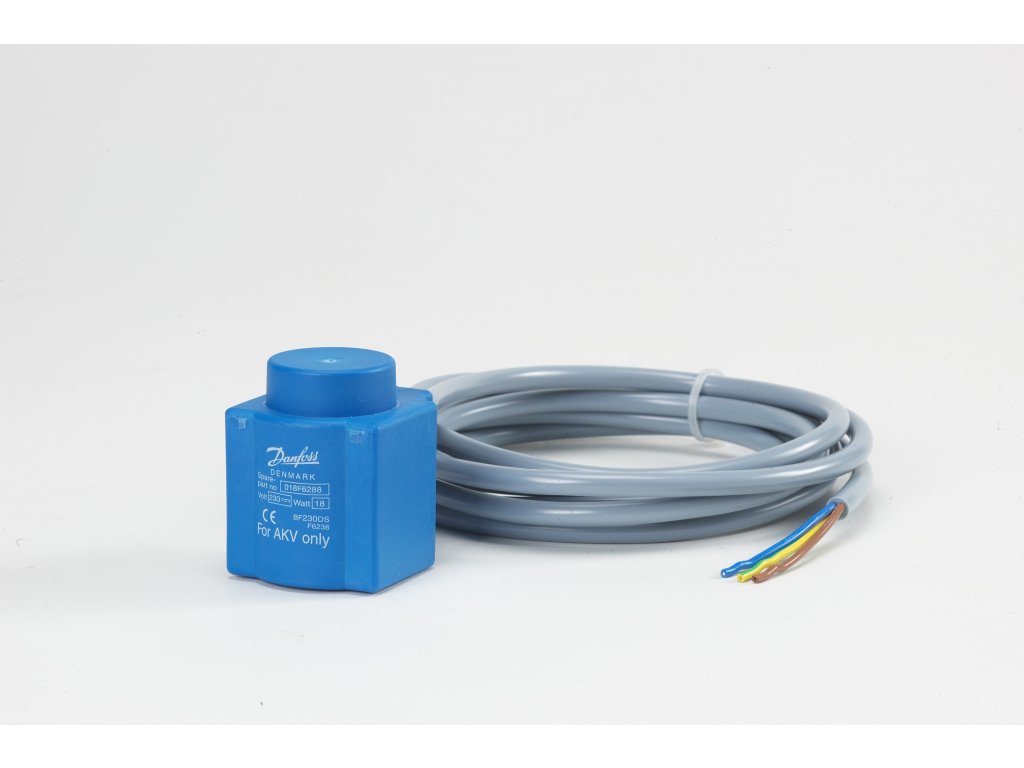

Cívka solenoidu, BF230DS, Kabel, 2.5 m, null: 230, Multi balení

Kód: 018F6288

Neohodnoceno

2 088 Kč 1 726 Kč bez DPH

Momentálně nedostupné

Popis produktu není dostupný

Kategorie:	BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP
Hmotnost:	0.39 kg
EAN:	5702428022958
Conductor area [mm2]:	3 x 0.75 mm2
Colour:	Blue
Type of accessory/spare part (EF000215):	Other
Ambient temperature range [°F] [min]:	-40
Actuator size:	13.5 mm
Cable length [m]:	2.500
China RoHS exemption clause:	No
Compliance:	EN 60730-1
Coil connection:	Cable
China RoHS compliance:	Out of scope
Spare part number:	018F6288
Packing format:	Multi pack
In scope of WEEE:	Yes
Approval:	LLC CDC TYSK
Type designation:	BF230DS
REACH Candidate List substances:	No
Coil fastening:	Clip-on
Duty rating:	Continuous
Rel. Humidity [% RH] [max]:	100
Contains batteries:	No
Rel. Humidity [% RH] [min]:	0
Coil winding insulation class:	Class H to IEC 85
Cable diameter [mm]:	6.6
EU RoHS exemption clause:	No
EU RoHS compliance:	Yes
Electrical connection:	Cable
Coil design standard:	VDE 0580
Spare part (EF013237):	TRUE
Serviceable:	No
Enclosure rating IP:	IP67
Ambient temperature range [°C] [min]:	-40
Cable length [in]:	100.00
Ambient temperature range [°C] [max]:	50
Power consumption [W] DC:	18.0
Electrical connector:	3 core cable
Accessory (EF013236):	TRUE
Product accessories:	Solenoid coil accessories
SCIP dossier product name:	Solenoid coils
Parts Program name:	EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV227B, EV250B, EV251B
EEE category:	5 small equipment (any external dimension <lt/> 50 cm)
Supply voltage [V] DC:	230.00
Quantity per packing format:	20
Ambient temperature range [°F] [max]:	120
