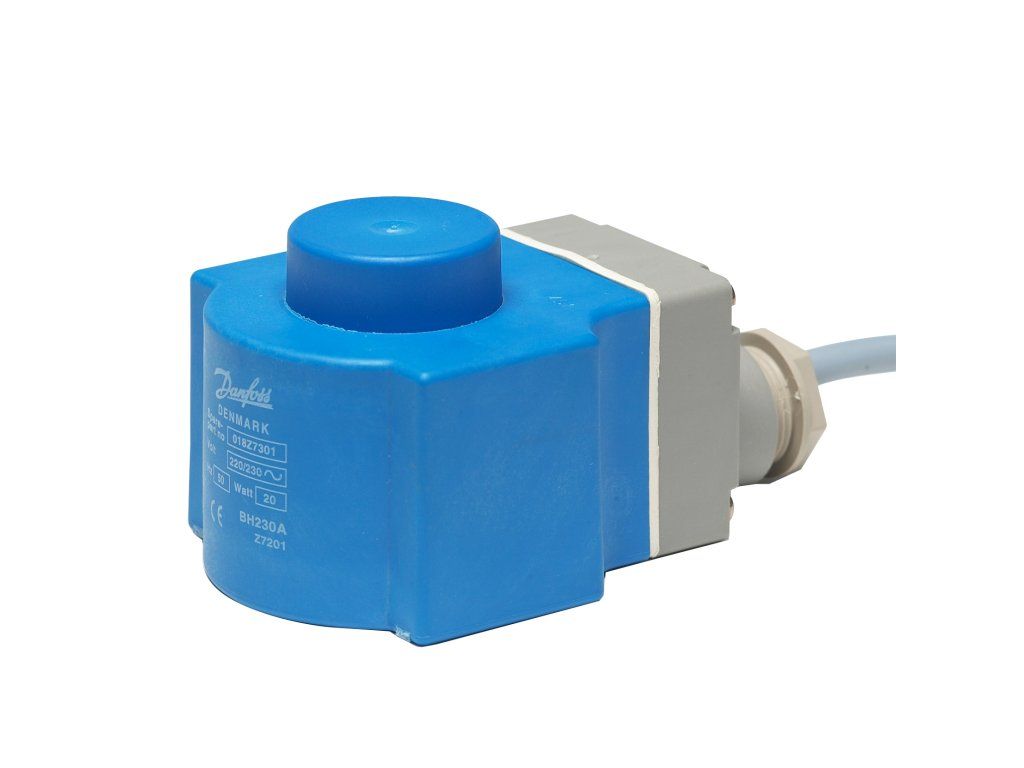

Cívka solenoidu, BN072DS, Svorkovnice, null: 72, Multi balení
Kód: 018F6959Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.57 kg |
| EAN: | 5702428026420 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | Connection Box |
| Electrical connection size: | Pg 13.5 |
| Spare part number: | 018F6959 |
| Coil fastening: | Clip-on |
| Rel. Humidity [% RH] [max]: | 100 |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Class H to IEC 85 |
| Cable diameter [mm] [max]: | 11.0 |
| Electrical connection: | Terminal box |
| Serviceable: | No |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Power consumption [W] DC: | 28.0 |
| Electrical connector: | Screwed cable entry |
| Product accessories: | Solenoid coil accessories |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Conductor area [mm2]: | 0.75 - 1.5 mm2 |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 13.5 mm |
| Compliance: | EN 60730-1 |
| Cable diameter [mm] [min]: | 6.0 |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | CE, EAC, LLC CDC TYSK |
| Type designation: | BN072DS |
| REACH Candidate List substances: | No |
| Duty rating: | Continuous |
| Contains batteries: | No |
| Frame design: | Frame: long flux sleeve (II) |
| CE mark: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Coil design standard: | VDE 0580 |
| Spare part (EF013237): | TRUE |
| Ambient temperature range [°C] [max]: | 50 |
| Coil type: | II |
| Accessory (EF013236): | TRUE |
| SCIP dossier product name: | Solenoid coils |
| Supply voltage [V] DC: | 72.00 |
| Quantity per packing format: | 24 |
| Ambient temperature range [°F] [max]: | 120 |
-
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP: Datový list
-
Solenoid coil Types BB, BE, BF, BG, and BN: Instalační příručka
-
Solenoid coil type BB, BE, BF, BG, and BN: Datový list
