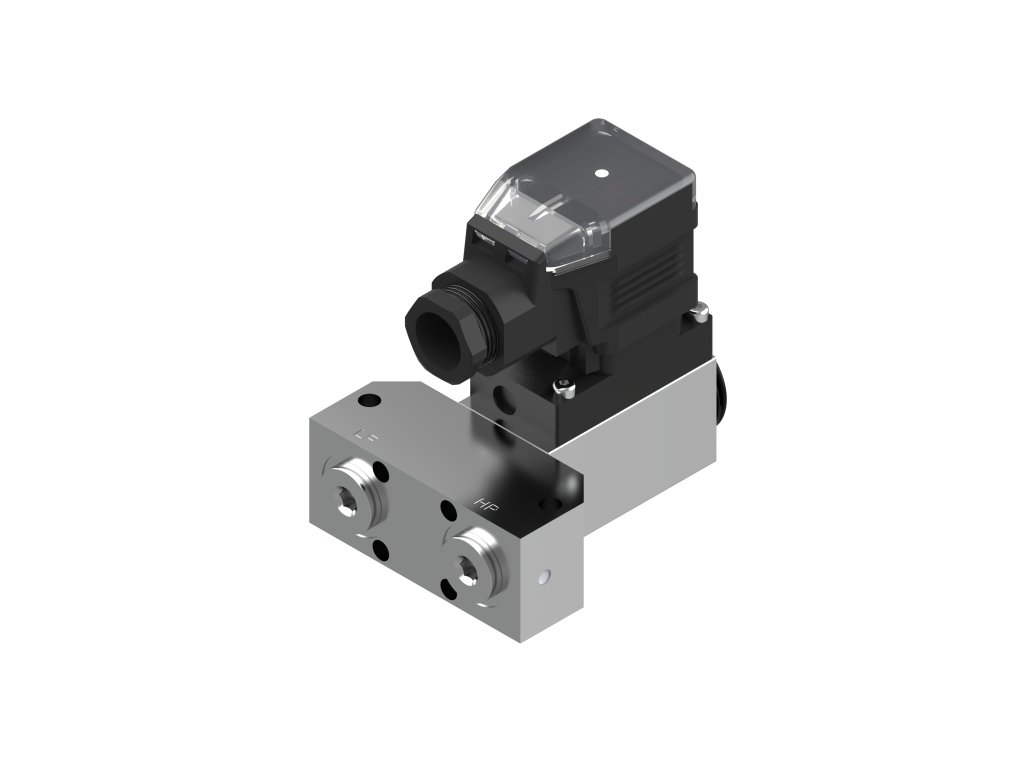

Diferenční presostat, MBC 5180
Kód: 061B129966Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | MBC 5180 |
|---|---|
| Hmotnost: | 0.29 kg |
| EAN: | 5702423296231 |
| Burst pressure [bar]: | 90.0 |
| Diff.press.setting range [bar] [max]: | 5.00 |
| Ambient temperature range [°F] [min]: | 14 |
| Operat. range LP side [bar] Pe [max]: | 30 |
| Electrical connection size: | M20 |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Specification key: | 2031-2DB04 |
| Height (EF000040): | 76 |
| Contact function: | SPDT |
| SCIP dossier no.: | 69958bd3-3b22-42dc-aa8a-888e92c5e7e8 |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 986.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 95 |
| Electrical connection: | DIN-plug |
| Max. operating pressure (EF020449): | 45.0 |
| Serviceable: | No |
| Pressure connection notes: | With flange |
| Reset function: | Auto |
| Enclosure rating IP: | IP65 |
| Ambient temperature range [°C] [min]: | -10 |
| Factory setting [bar]: | 0.30 |
| Max. test pressure [bar] Pe: | 68.0 |
| Product accessories: | Generic accessories |
| Pressure Male/Female: | Female |
| Other RoHS documentation: | Saudi Arabia RoHS |
| Operat. range LP side [psig]Pe [max]: | 435 |
| Depth (EF000049): | 137 |
| Contact rating: | AC15=0.5 A, 250 V, DC13=12 W, 125 V |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/4 inch |
| Diff.press.setting range [MPa] [min]: | 0.03 |
| Operat. range LP side [psig]Pe [min]: | 0 |
| Product description: | Diff. Pressure Switch |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-5 |
| Operat. range LP side [bar] Pe [min]: | 0 |
| Packing format: | Multi pack |
| Factory setting [MPa]: | 0.030 |
| Approval: | ABS, CCC, CCS, CE, EAC, GL, KRS, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RoHS, RoHS China, TYSK |
| Diff.press.setting range [bar] [min]: | 0.30 |
| Diff.press.setting range [MPa] [max]: | 0.50 |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 45.0 |
| Diff.press.setting range [psi] [max]: | 72.5 |
| Alarm Signal: | Rising |
| Ambient temperature range [°C] [max]: | 85 |
| Diff.press.setting range [psi] [min]: | 4.3 |
| Degree of protection (IP) (EF005474): | IP65 |
| SCIP dossier product name: | MBC 5100 5000 Pressure Switch |
| Relay release time [s]: | 0 |
| Quantity per packing format: | 10 |
| Ambient temperature range [°F] [max]: | 185 |
| Max. Working Pressure [psig]: | 653 |
| Explosion-proof (EF004663): | FALSE |
-
