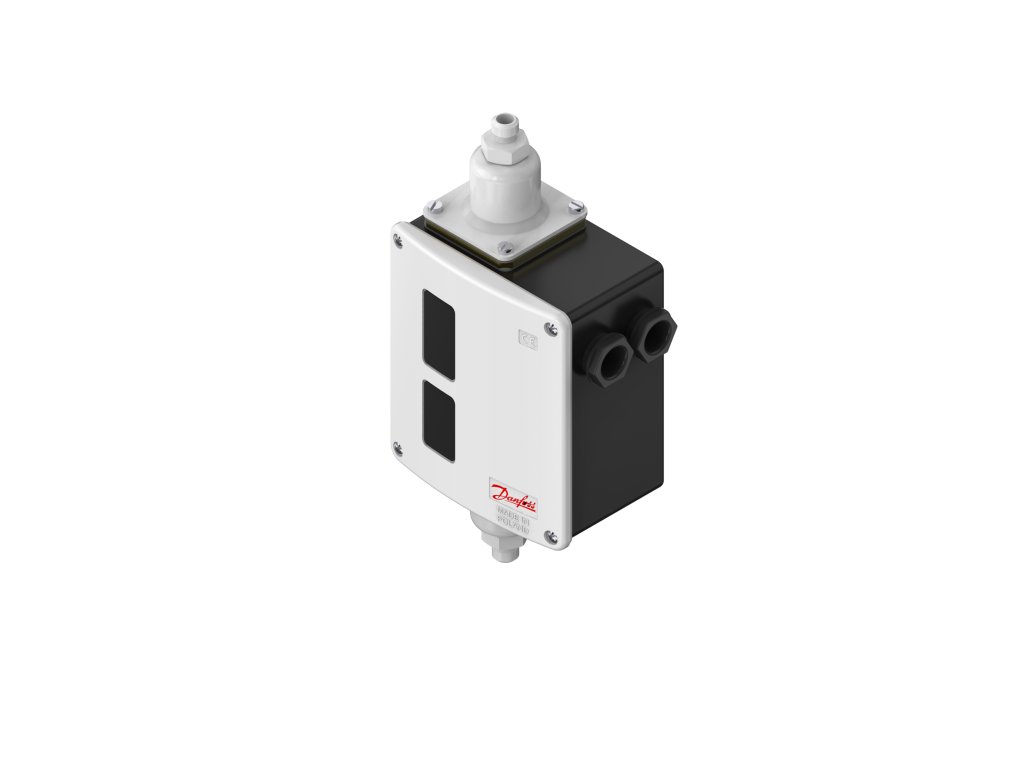

    Diferenční presostat, RT260A

    Kód: 017D001466
    Neohodnoceno
    ID322329692808 0101
    13 359 Kč 11 040 Kč bez DPH
    Momentálně nedostupné

    Detailní popis produktu

    Popis produktu není dostupný

    Doplňkové parametry

    Kategorie: RT
    Hmotnost: 0.88 kg
    EAN: 5702428042888
    Diff.press.setting range [bar] [max]: 4.00
    Ambient temperature range [°F] [min]: -40
    Operat. range LP side [bar] Pe [max]: 18
    Electrical connection size: 2xPg 13.5
    Connection (EF000443): External thread metric
    Height (EF000040): 390
    Contact function: SPDT
    SCIP dossier no.: f62fe422-beda-433a-a602-740419c82c06
    Pressure connection size: 12 x 1.5
    Max. test pressure [psig]: 362.0
    Pressure connection standard: ISO 8434-1
    Width (EF000008): 93
    Contact differential [bar]: 0.30
    Electrical connection: Screwed cable entry
    Max. operating pressure (EF020449): 22.0
    Serviceable: Contact systems
    Pressure connection notes: Cutting ring 6mm tube
    Reset function: Auto
    Enclosure rating IP: IP66
    Ambient temperature range [°C] [min]: -40
    Max. test pressure [bar] Pe: 25.0
    Product accessories: Generic accessories, Switches accessories
    Pressure Male/Female: Male
    UL approved refrigerants: R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C
    Other RoHS documentation: Saudi Arabia RoHS
    Refrigerants: R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C, R717
    Operat. range LP side [psig]Pe [max]: 261
    Depth (EF000049): 130
    Contact rating: AC15=3 A, 400 V, AC1=10 A, 400 V, AC3=4 A, 400 V, DC13=12 W, 220 V, LR=28 A, 400 V
    EEE category: 5 small equipment (any external dimension <lt/> 50 cm)
    Pressure connection type: M
    Thread size (EF022694): Other
    Diff.press.setting range [MPa] [min]: 0.05
    Operat. range LP side [psig]Pe [min]: -15
    Product description: Diff. Pressure Switch
    China RoHS compliance: Yes
    Electrical spec. standard: EN 60947-4/-5
    Operat. range LP side [bar] Pe [min]: -1
    Packing format: Multi pack
    In scope of WEEE: Yes
    Approval: CCC, CE, CMIM, EAC, KR, LLC CDC EURO-TYSK, LVD, RINA, RMRS, RoHS, RoHS China, TYSK
    Diff.press.setting range [bar] [min]: 0.50
    Diff.press.setting range [MPa] [max]: 0.40
    Electrical conn. Male/Female: Female
    REACH Candidate List substances: Lead (CAS no. 7439-92-1)
    Electrical connection standard: DIN 40430
    Contains batteries: No
    CE mark: Yes
    EN 60947 wiring properties: Flex, ferrules: 0.2-1.5 mm2, Flex, no ferrules: 0.2-2.5 mm2, Solid/stranded: 0.2-2.5 mm2
    EU RoHS exemption clause: No
    EU RoHS compliance: Yes
    Max. Working Pressure [bar]: 22.0
    Diff.press.setting range [psi] [max]: 58.0
    Ambient temperature range [°C] [max]: 70
    Diff.press.setting range [psi] [min]: 7.0
    Degree of protection (IP) (EF005474): IP66
    Pressure range [bar] Pe [min]: -1.00
    SCIP dossier product name: RT Presso_Diff.Presso
    EN 60947 electrical properties: Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 10A
    Relay release time [s]: 0
    Pressure range [bar] Pe [max]: 18.00
    Quantity per packing format: 9
    Ambient temperature range [°F] [max]: 158
    Max. Working Pressure [psig]: 319
    Explosion-proof (EF004663): FALSE
