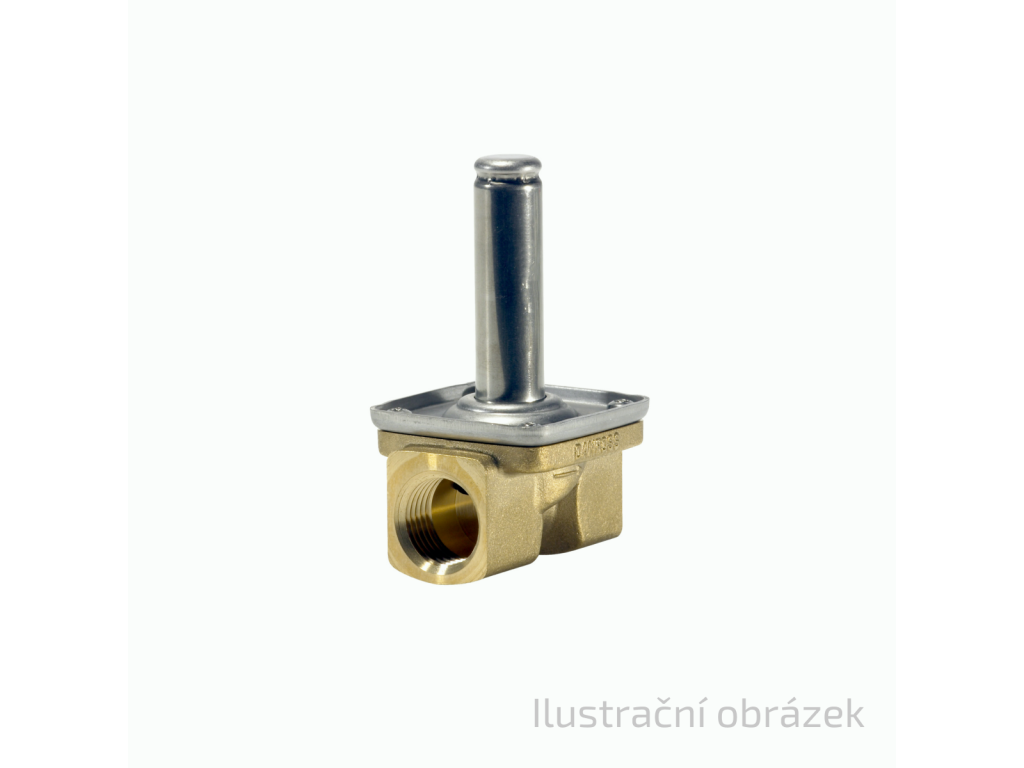

Elektromagnetický ventil, EV210A, Funkce: NO, G, 1/8, 0.06 m³/h, FKM
Kód: 032H8049Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV210A |
|---|---|
| Hmotnost: | 0.13 kg |
| EAN: | 5702423051540 |
| Housing material (EF001596): | Brass |
| Medium temperature range [°C] [max]: | 100 |
| Min. pressure difference (EF020189): | 0.000 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 10 |
| China RoHS exemption clause: | 7.3 |
| Est. time to open, water [ms]: | 10 |
| Kvs value (EF022466): | 0.060 |
| Specification key: | EV210A 1.5B G 18F NO000 |
| Height (EF000040): | 64 |
| SCIP dossier no.: | 6bc3fec0-8115-484f-a3e7-a47e8f714a69 |
| Actuator system [mm]: | 9.0 |
| Material quality (EF001257): | Other |
| Function: | NO |
| Max. test pressure [psig]: | 725.0 |
| Medium temperature range [°C] [min]: | -10 |
| Ambient temperature max. [°C]: | 50 |
| Connection Internal/External: | Internal |
| Serviceable: | Solenoid valve spare parts |
| Seal Material: | FKM |
| Ambient temperature max. [°F]: | 122 |
| Surface protection (EF000139): | Other |
| Explosion safety (EF003996): | None |
| Media tolerance comments: | Neutral media |
| Operation: | Direct-operated |
| Product accessories: | Solenoid valve accessories |
| Connection type: | G |
| Connection size [in]: | 1/8 |
| Connection material: | Brass |
| Parts Program name: | EV210A |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Brass |
| Differential pressure [psi] [min]: | 0.000 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 1.50 |
| Medium temperature range [°F] [min]: | 14 |
| Fluid Group: | 1 |
| Actuator size: | 9 mm |
| Cv value [gal/min]: | 0.070 |
| Actuator size [in]: | 0.35 in |
| China RoHS compliance: | Yes with exemptions |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 0.060 |
| Differential pressure [bar] [min]: | 0.000 |
| Actuator: | A |
| Type designation: | EV210A 1.5 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 30.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 50.0 |
| Medium temperature range [°F] [max]: | 212 |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 1/16 in |
| Flow direction indicator: | Engraved 1-way arrow |
| Max. viscosity (EF025190): | 20 |
| Differential pressure [psi] [max]: | 435.000 |
| Application: | Closed and Drain |
| Max media viscosity [cSt]: | 20 |
| SCIP dossier product name: | EV210A B - solenoid valve |
| Max. test pressure [bar]: | 50.0 |
| Model (EF000010): | Straight |
| Quantity per packing format: | 16 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 725 |
| Media recommendations: | Oil,Comp.Air,Vacuum |
-
