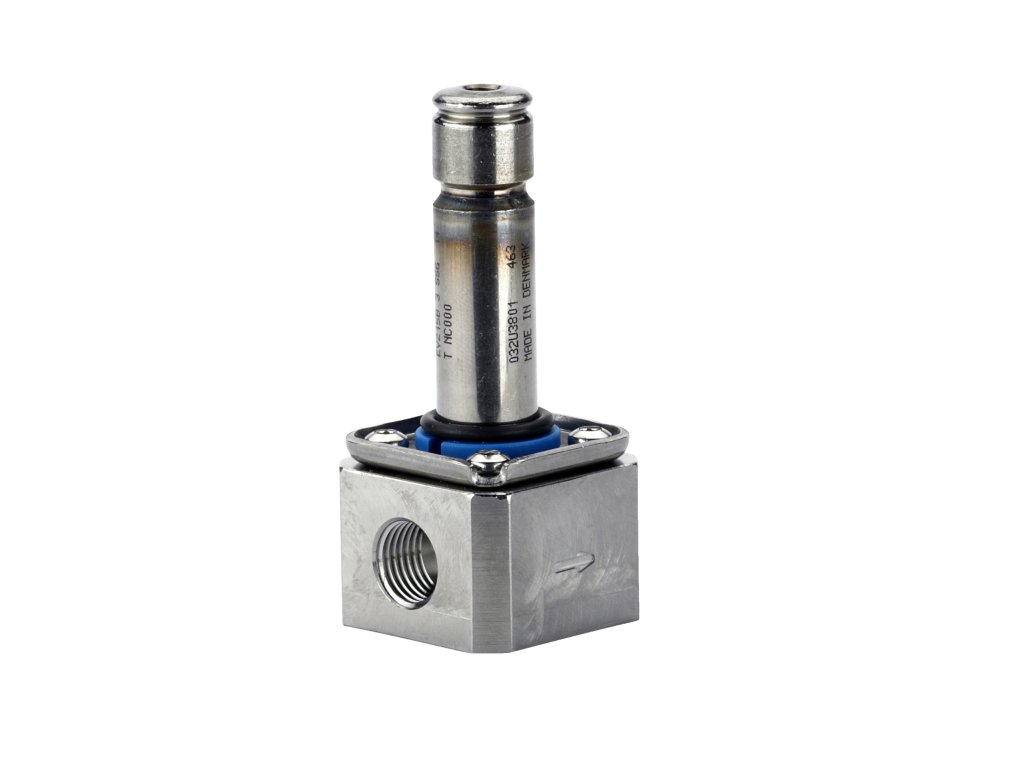

Elektromagnetický ventil, EV215B, Funkce: NC, G, 1/4, 0.3 m³/h, PTFE
Kód: 032U3801Související produkty
![Cívka solenoidu, BQ240CS, Štítek DIN, Napájecí napětí [V] AC: 240, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4542_civka-solenoidu--bq240cs--stitek-din--napajeci-napeti--v--ac--240--multi-baleni.jpg?67e88fe6
)
![Cívka solenoidu, BQ024CS, Štítek DIN, Napájecí napětí [V] AC: 24, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4545_civka-solenoidu--bq024cs--stitek-din--napajeci-napeti--v--ac--24--multi-baleni.jpg?67e88fe6
)
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV215B |
|---|---|
| Hmotnost: | 0.26 kg |
| EAN: | 5702428462952 |
| Housing material (EF001596): | Stainless steel |
| Medium temperature range [°C] [max]: | 185 |
| Min. pressure difference (EF020189): | 0.000 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 20 |
| China RoHS exemption clause: | No |
| Est. time to open, water [ms]: | 20 |
| Kvs value (EF022466): | 0.300 |
| Specification key: | EV215B 3SS G 14T NC000 |
| Height (EF000040): | 96 |
| Actuator system [mm]: | 13.5 |
| Material quality (EF001257): | Other |
| Function: | NC |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | -10 |
| Ambient temperature max. [°C]: | 40 |
| Connection Internal/External: | Internal |
| Serviceable: | Solenoid valve spare parts |
| Seal Material: | PTFE |
| Ambient temperature max. [°F]: | 104 |
| Surface protection (EF000139): | Other |
| Explosion safety (EF003996): | None |
| Media tolerance comments: | Aggressive media |
| Operation: | Direct-operated |
| Connection type: | G |
| Connection size [in]: | 1/4 |
| Connection material: | Stainless steel |
| Parts Program name: | EV215B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Stainless steel |
| Differential pressure [psi] [min]: | 4.351 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 3.00 |
| Medium temperature range [°F] [min]: | 14 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 0.350 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Yes |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 0.300 |
| Differential pressure [bar] [min]: | 0.000 |
| Actuator: | B |
| Type designation: | EV215B 3 |
| REACH Candidate List substances: | No |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 365 |
| Orifice size fraction [in]: | 1/8 in |
| Max. viscosity (EF025190): | 50 |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Closed and Drain |
| Max media viscosity [cSt]: | 50 |
| Max. test pressure [bar]: | 15.0 |
| Model (EF000010): | Straight |
| Quantity per packing format: | 15 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Steam |
-
Solenoid valve Type EV215B: Instalační příručka
-
Direct-operated 2/2-way solenoid valves for steam Type EV215B: Datový list
-
Adap-Kool Selection Guide: Aplikační příručka
