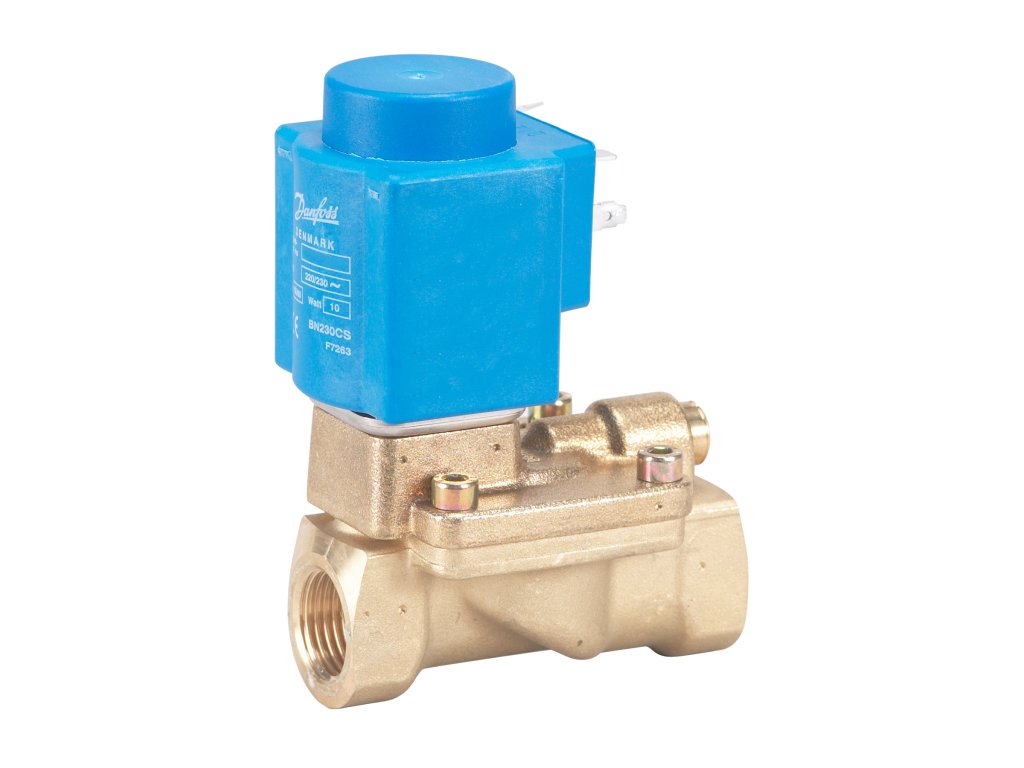

Elektromagnetický ventil, EV220B, Funkce: NO, G, 1/2, 4 m³/h, EPDM
Kód: 032U818402Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220B |
|---|---|
| Hmotnost: | 0.88 kg |
| EAN: | 5702423217069 |
| Housing material (EF001596): | Brass |
| Medium temperature range [°C] [max]: | 120 |
| Min. pressure difference (EF020189): | 0.300 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 350 |
| China RoHS exemption clause: | 7.3 |
| Est. time to open, water [ms]: | 40 |
| Specification key: | EV220B 15B G 12E NO000 BA024D |
| Height (EF000040): | 93 |
| SCIP dossier no.: | e1e8e346-d9ba-4293-882a-99c4f592144c |
| Actuator system [mm]: | 13.5 |
| Material quality (EF001257): | Other |
| Function: | NO |
| Electrical connection (EF003701): | Other |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | -30 |
| Electrical connection: | Spade DIN 43650-A |
| Ambient temperature max. [°C]: | 40 |
| Connection Internal/External: | Internal |
| Serviceable: | Solenoid valve spare parts |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 104 |
| Surface protection (EF000139): | Other |
| Enclosure rating IP: | IP65 |
| Explosion safety (EF003996): | None |
| Media tolerance comments: | Neutral media, Steam Max 4 bar, Temperature: Coil dependent |
| Power consumption [W] DC: | 14.0 |
| Operation: | Servo-operated (diaphragm) |
| Product accessories: | Solenoid coil accessories, Solenoid valve accessories |
| Connection type: | G |
| Connection size [in]: | 1/2 |
| Connection material: | Brass |
| Parts Program name: | EV220B 15 - 50 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Brass |
| Differential pressure [psi] [min]: | 4.350 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 15.00 |
| Open/close equalizing orifice: | Optional Equalization orifice |
| Medium temperature range [°F] [min]: | -22 |
| Max. Working Pressure note: | Liquids: max 10 bar/145 psi |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 4.600 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Yes with exemptions |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 4.000 |
| Approval: | CE, DNVGL-CG-0339, GL, PZH |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | B |
| Type designation: | EV220B 15 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| CE mark: | Yes |
| Voltage type (EF000187): | DC |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 248 |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 5/8 in |
| Flow direction indicator: | Embossed 1-way arrow |
| Differential pressure [psi] [max]: | 145.000 |
| Coil type: | BA |
| Application: | Open |
| Degree of protection (IP) (EF005474): | IP65 |
| Connection voltage (EF003625): | 24 |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV220B 15-50 brass NO - solenoid valve |
| Max. test pressure [bar]: | 15.0 |
| Supply voltage [V] DC: | 24.00 |
| Model (EF000010): | Straight |
| Quantity per packing format: | 12 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Water & Brine |
-
