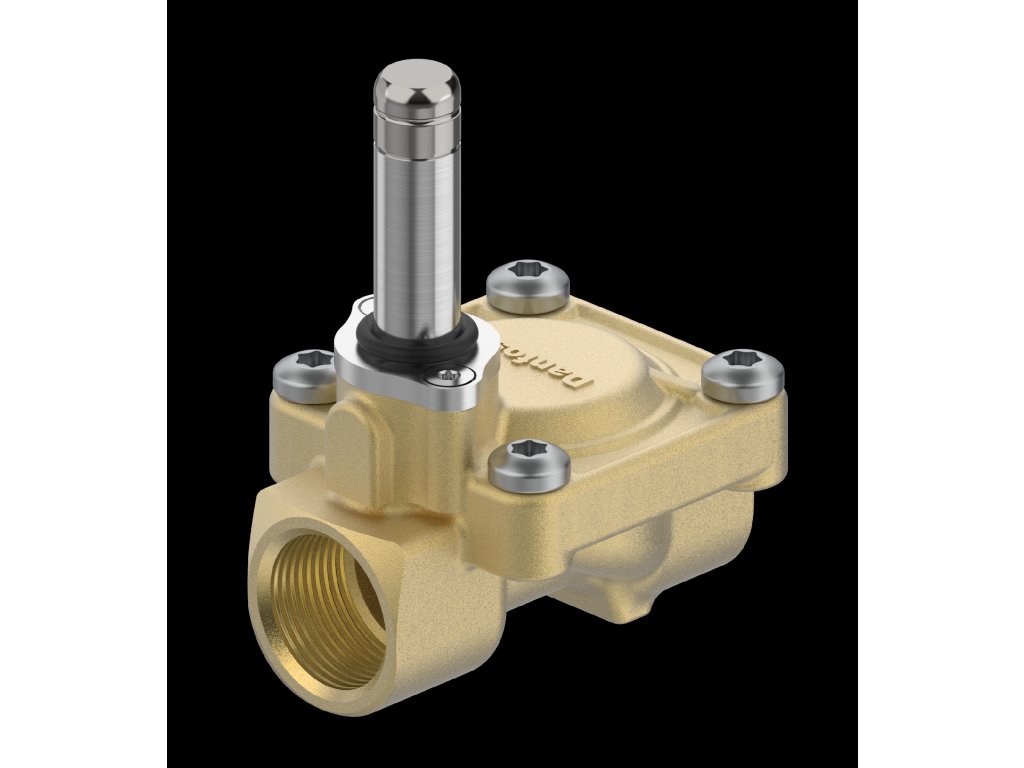

Elektromagnetický ventil, EV220S, Funkce: NC, G, 1/2, 3 m³/h, EPDM
Kód: 042U4613Související produkty
![Cívka solenoidu, AS230CS, Štítek DIN, Napájecí napětí [V] AC: 230, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4572_civka-solenoidu--as230cs--stitek-din--napajeci-napeti--v--ac--230--multi-baleni.jpg?67e88fe6
)
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220S |
|---|---|
| Hmotnost: | 0.26 kg |
| EAN: | 5702428653640 |
| Housing material (EF001596): | Brass |
| Medium temperature range [°C] [max]: | 100 |
| Min. pressure difference (EF020189): | 0.200 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 300 |
| China RoHS exemption clause: | 7.3 |
| UL mark: | Yes |
| Est. time to open, water [ms]: | 50 |
| Specification key: | EV220S 13B G 12E NC000 |
| Height (EF000040): | 94 |
| SCIP dossier no.: | 5109bece-eeb9-4151-89cf-c63ee268441d |
| Actuator system [mm]: | 9.0 |
| Material quality (EF001257): | Other |
| Function: | NC |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | -30 |
| Ambient temperature max. [°C]: | 50 |
| Connection Internal/External: | Internal |
| Serviceable: | No |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 122 |
| Surface protection (EF000139): | Other |
| Explosion safety (EF003996): | None |
| Operation: | Servo-operated (diaphragm) |
| Product accessories: | Solenoid valve accessories |
| Connection type: | G |
| Connection size [in]: | 1/2 |
| Connection material: | Brass |
| Parts Program name: | EV220S |
| Body material: | Brass |
| Differential pressure [psi] [min]: | 2.900 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 13.00 |
| Medium temperature range [°F] [min]: | -22 |
| Fluid Group: | 1 |
| Actuator size: | 9 mm clip-on S |
| Cv value [gal/min]: | 3.450 |
| Actuator size [in]: | 0.35 in |
| China RoHS compliance: | Yes with exemptions |
| Packing format: | Multi pack |
| Kv value [m³/h]: | 3.000 |
| Approval: | WRAS, c UL us |
| Differential pressure [bar] [min]: | 0.200 |
| Actuator: | S |
| Type designation: | EV220S 13 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 212 |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 1/2 in |
| Flow direction indicator: | Embossed 1-way arrow |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Open |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV220S |
| Max. test pressure [bar]: | 15.0 |
| Model (EF000010): | Straight |
| Quantity per packing format: | 15 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Water & Brine |
-
