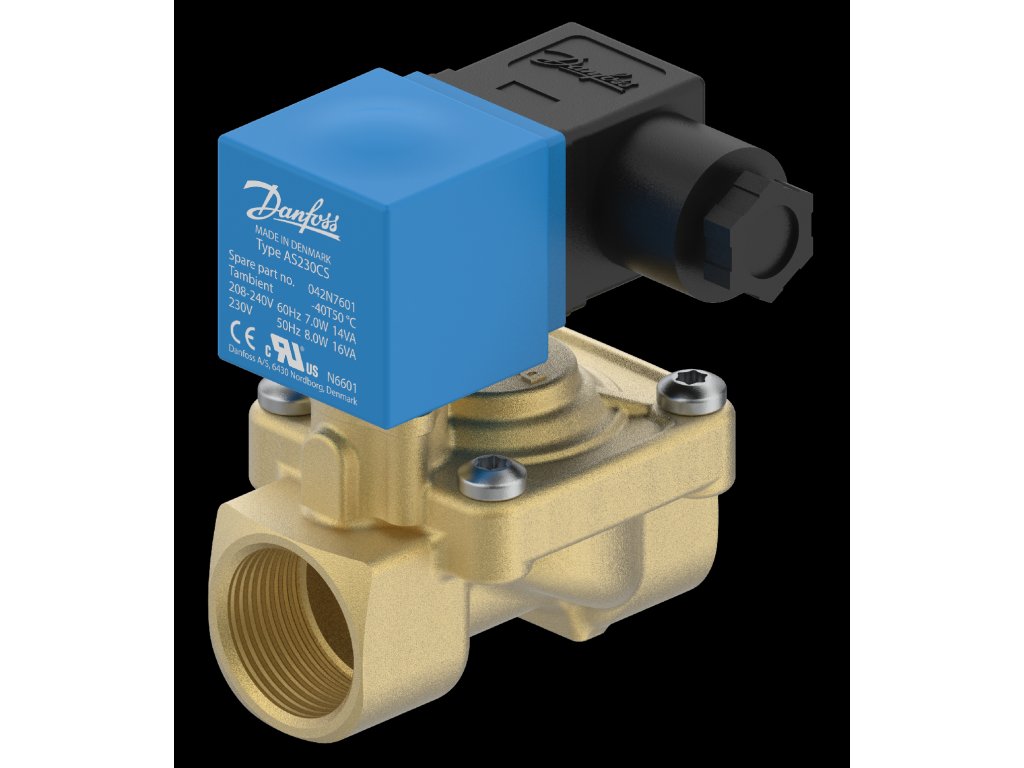

    Elektromagnetický ventil, EV220S, Funkce: NC, G, 3/4, 5 m³/h, EPDM

    Kód: 042U491732
    Neohodnoceno
    ID432343975099 0101
    3 012 Kč 2 489 Kč bez DPH
    Momentálně nedostupné

    Související produkty

    Cívka solenoidu, AS230CS, Štítek DIN, Napájecí napětí [V] AC: 230, Multi balení
    Cívka solenoidu, AS230CS, Štítek DIN, Napájecí napětí [V] AC: 230, Multi balení
    Momentálně nedostupné
    323 Kč bez DPH
    391 Kč
    Kód: 042N7601

    Detailní popis produktu

    Popis produktu není dostupný

    Doplňkové parametry

    Kategorie: EV220S
    Hmotnost: 0.53 kg
    EAN: 5714279431797
    Housing material (EF001596): Brass
    Medium temperature range [°C] [max]: 100
    Min. pressure difference (EF020189): 0.300
    Connection standard: ISO 228-1
    Est. time to close, water [ms]: 400
    China RoHS exemption clause: 7.3
    Supply voltage [V] AC: 230
    Supply voltage 60Hz Max [V]: 240
    UL mark: Yes
    Est. time to open, water [ms]: 100
    Specification key: EV220S 17 G 34E NC000 AS230CS
    SCIP dossier no.: 5109bece-eeb9-4151-89cf-c63ee268441d
    Actuator system [mm]: 9.0
    Material quality (EF001257): Other
    Supply voltage 50Hz Max [V]: 230
    Function: NC
    Max. test pressure [psig]: 217.5
    Medium temperature range [°C] [min]: -30
    Electrical connection: Spade DIN 43650-A
    Ambient temperature max. [°C]: 50
    Connection Internal/External: Internal
    Serviceable: No
    Seal Material: EPDM
    Ambient temperature max. [°F]: 122
    Surface protection (EF000139): Other
    Enclosure rating IP: IP65
    Explosion safety (EF003996): None
    Coil option: Clip-on
    Operation: Servo-operated (diaphragm)
    Product accessories: Solenoid coil accessories, Solenoid valve accessories
    Connection type: G
    Connection size [in]: 3/4
    Connection material: Brass
    Parts Program name: EV220S
    Body material: Brass
    Differential pressure [psi] [min]: 4.350
    Emergency manual operation (EF025189): Other
    Orifice size [mm]: 17.00
    Medium temperature range [°F] [min]: -22
    Fluid Group: 1
    Actuator size: 9 mm clip-on S
    Cv value [gal/min]: 5.780
    Actuator size [in]: 0.35 in
    China RoHS compliance: Yes with exemptions
    Packing format: Multi pack
    Kv value [m³/h]: 5.000
    Approval: CE, WRAS, c UL us
    Differential pressure [bar] [min]: 0.300
    Actuator: S
    Power consumption [W] 50Hz: 8.0
    Type designation: EV220S 17
    Power consumption [W] 60Hz: 7.0
    REACH Candidate List substances: Lead (CAS no. 7439-92-1)
    Differential pressure [bar] [max]: 10.000
    Number of ways: 2/2
    Contains batteries: No
    CE mark: Yes
    Frequency [Hz]: 50/60 Hz
    Voltage type (EF000187): AC
    EU RoHS exemption clause: 6(c)
    Supply voltage 60Hz Min [V]: 208
    EU RoHS compliance: Yes with exemptions
    Max. Working Pressure [bar]: 10.0
    Medium temperature range [°F] [max]: 212
    Flow direction: Single-flow
    Orifice size fraction [in]: 3/4 in
    Flow direction indicator: Embossed 1-way arrow
    Differential pressure [psi] [max]: 145.000
    Coil type: AS
    Application: Open
    Degree of protection (IP) (EF005474): IP65
    Connection voltage (EF003625): 230
    Max media viscosity [cSt]: 50
    SCIP dossier product name: EV220S
    Max. test pressure [bar]: 15.0
    Model (EF000010): Straight
    Quantity per packing format: 24
    Freeflow (EF020116): FALSE
    Max. Working Pressure [psig]: 145
    Media recommendations: Water & Brine
