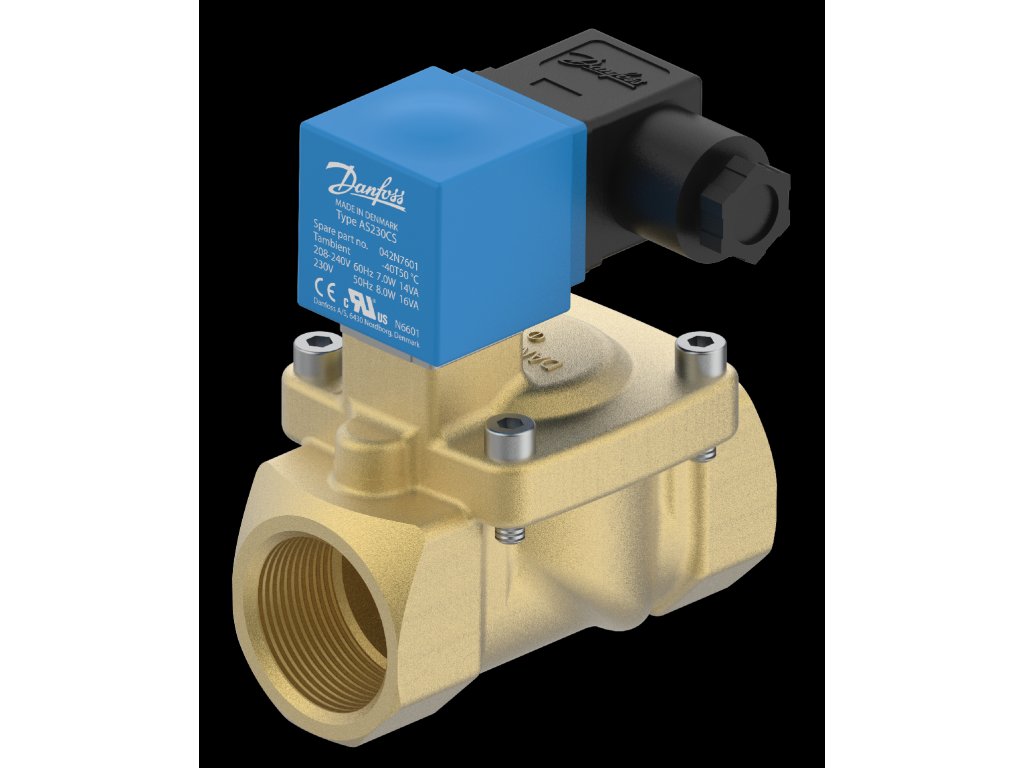

Elektromagnetický ventil, EV220S, Funkce: NO, G, 1, 7 m³/h, EPDM
Kód: 042U652219Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220S |
|---|---|
| Hmotnost: | 0.91 kg |
| EAN: | 5715162594582 |
| Medium temperature range [°C] [max]: | 100 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 500 |
| China RoHS exemption clause: | 7.3 |
| Supply voltage [V] AC: | 24 |
| Supply voltage 60Hz Max [V]: | 24 |
| UL mark: | Yes |
| Est. time to open, water [ms]: | 200 |
| Specification key: | EV220S 22B G 1E NO00 AS024CS |
| SCIP dossier no.: | 5109bece-eeb9-4151-89cf-c63ee268441d |
| Actuator system [mm]: | 9.0 |
| Supply voltage 50Hz Max [V]: | 24 |
| Function: | NO |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | -30 |
| Electrical connection: | Spade DIN 43650-A |
| Ambient temperature max. [°C]: | 50 |
| Connection Internal/External: | Internal |
| Serviceable: | No |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 122 |
| Enclosure rating IP: | IP65 |
| Coil option: | Clip-on |
| Operation: | Servo-operated (diaphragm) |
| Product accessories: | Solenoid coil accessories, Solenoid valve accessories |
| Connection type: | G |
| Connection size [in]: | 1 |
| Connection material: | Brass |
| Parts Program name: | EV220S |
| Body material: | Brass |
| Differential pressure [psi] [min]: | 4.350 |
| Orifice size [mm]: | 22.00 |
| Medium temperature range [°F] [min]: | -22 |
| Max. Working Pressure note: | WRAS - medium temp. max 50° C |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 9 mm clip-on S |
| Cv value [gal/min]: | 8.100 |
| Actuator size [in]: | 0.35 in |
| China RoHS compliance: | Yes with exemptions |
| Packing format: | Multi pack |
| Kv value [m³/h]: | 7.000 |
| Approval: | CE, WRAS, c UL us |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | S |
| Power consumption [W] 50Hz: | 9.5 |
| Type designation: | EV220S 22 |
| Power consumption [W] 60Hz: | 7.0 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| CE mark: | Yes |
| Frequency [Hz]: | 50/60 Hz |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 212 |
| Spare part (EF013237): | TRUE |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 7/8 in |
| Flow direction indicator: | Embossed 1-way arrow |
| Differential pressure [psi] [max]: | 145.000 |
| Coil type: | AS |
| Application: | Open |
| Accessory (EF013236): | TRUE |
| SCIP dossier product name: | EV220S |
| Max. test pressure [bar]: | 15.0 |
| Quantity per packing format: | 12 |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Water & Brine |
-
