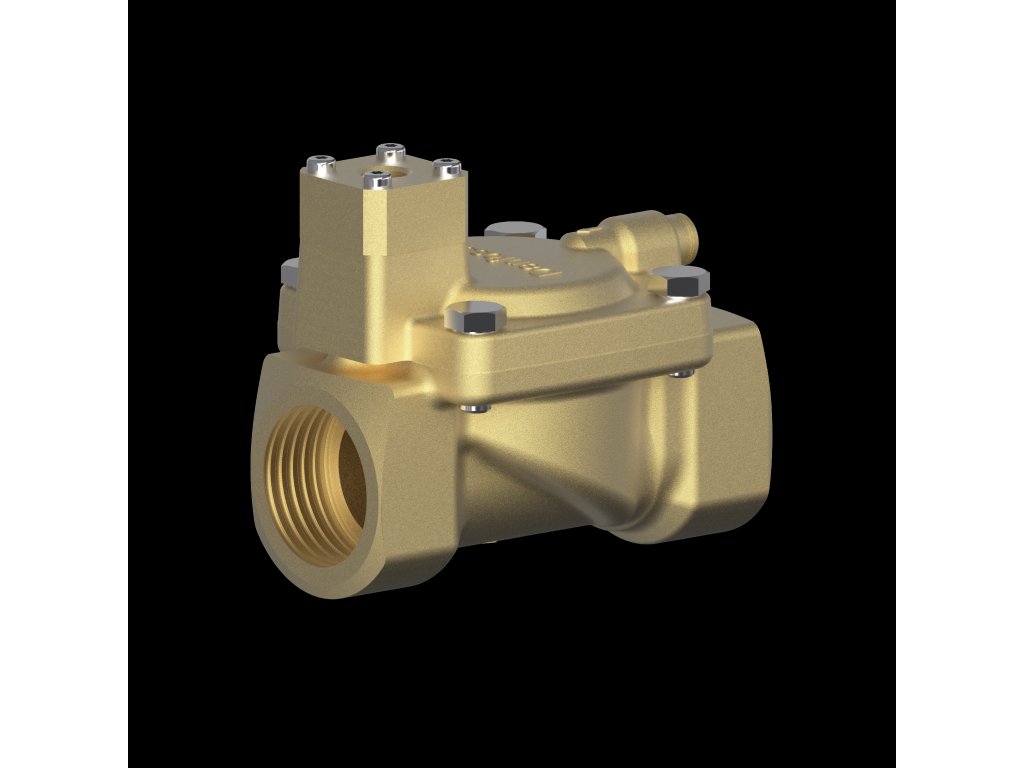

Elektromagnetický ventil, EV220X, Funkce: Externí ovládání, G, 1, 11 m³/h, EPDM
Kód: 032U7192Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220X |
|---|---|
| Hmotnost: | 1.37 kg |
| EAN: | 5702423062492 |
| Housing material (EF001596): | Brass |
| Medium temperature range [°C] [max]: | 120 |
| Min. pressure difference (EF020189): | 0.300 |
| Connection standard: | ISO 228-1 |
| China RoHS exemption clause: | 7.3 |
| Kvs value (EF022466): | 11.000 |
| Specification key: | EV220X 25B G 1E UN000 |
| Height (EF000040): | 75 |
| SCIP dossier no.: | 51ee215d-a437-4918-9d35-93b92570962f |
| Material quality (EF001257): | Other |
| Function: | External control |
| Medium temperature range [°C] [min]: | -30 |
| Ambient temperature max. [°C]: | 80 |
| Connection Internal/External: | Internal |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 176 |
| Surface protection (EF000139): | Other |
| Explosion safety (EF003996): | None |
| Operation: | Servo-operated (diaphragm) |
| Connection type: | G |
| Connection size [in]: | 1 |
| Connection material: | Brass |
| Body material: | Brass |
| Differential pressure [psi] [min]: | 4.350 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 25.00 |
| Medium temperature range [°F] [min]: | -22 |
| Actuator size: | No system |
| Cv value [gal/min]: | 12.700 |
| China RoHS compliance: | Yes with exemptions |
| Packing format: | Multi pack |
| Kv value [m³/h]: | 11.000 |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | X |
| Type designation: | EV220X 25 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 16.0 |
| Medium temperature range [°F] [max]: | 248 |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 1 in |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Open |
| SCIP dossier product name: | EV220X |
| Model (EF000010): | Straight |
| Quantity per packing format: | 12 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 232 |
| Media recommendations: | Water & Brine |
