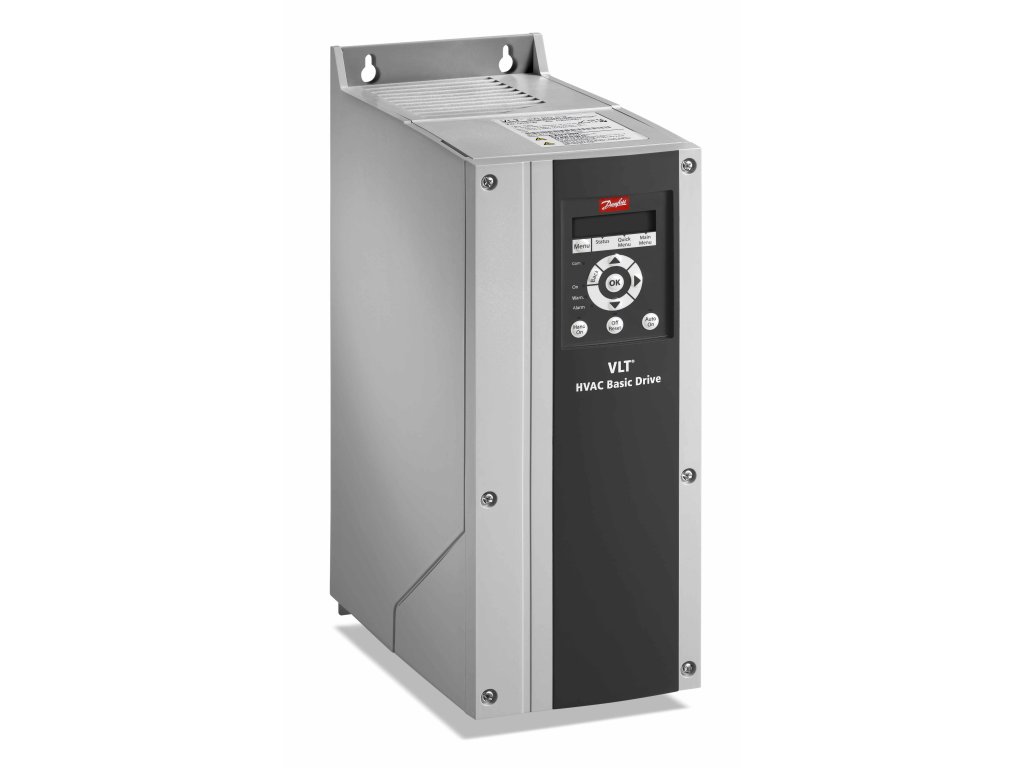

FC-101P18KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX
Kód: 131N0196Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | VLT HVAC Drive - pro vzduchotechniku |
|---|---|
| Hmotnost: | 13.8 kg |
| EAN: | 5710107088607 |
| RFI Filter: | H3||(H3) RFI Class A1/B (C1)##RFI Class A1/B (reduced cable length) |
| Calculated Package Weight: | 0.300 |
| Calculated Gross Weight [kg]: | 14.400 |
| Power Rating: | P18K||(P18K) 18.5 KW / 25 HP##HP not Valid if T7 drive, HP usually one size down |
| Adaptation A: | X||Standard Cable Entries |
| Vendor: | ERR01||Cannot Determine Vendor |
| Typecode Part 2: | XXXSXXXXAXBXCXXXXDX |
| Modelcode01: | FC-101P18KT4E5AH3XAX |
| Modelcode02: | XXXSXXXXAXBXCXXXXDX |
| Producing plant: | ERR01||Cannot Determine Vendor |
| Adaptation B: | X||No adaptation |
| Calculated Net Weight [kg]: | 14.100 |
| Delivering plant: | ERR01||ERR01 |
| Software Language Pack: | X||Standard Language Pack##Software |
| Typecode Part 1: | FC-101P18KT4E5AH3XAX |
| Mains Option: | X||No Mains Option |
| Product Group: | FC-||VLT® HVAC Drive FC- |
| Enclosure: | E5A||IP54 (not TYPE 12) |
| Frame Size: | I4||I4 |
| ECCN US: | 3A999.a||3A999.a |
| DrivePro category: | EXCH||Exchange Unit |
| Series: | 101||101##Basic version |
| Product View (Switch): | GLBL||Global (Standard) |
| C Option Software: | XX||No software option##Configuration software for speed synchrnisation between drives |
| Coating PCB: | X||Not coated PCB |
| Product Catalog: | GLBL||Global (Standard) |
| B Option: | BX||No B Option |
| Cross-Plant Configurable Material: | VLT® HVAC Basic Drive FC 101 |
| LCP: | A||Alpha Numeric LCP |
| Brake - Safe Stop: | X||No brake chopper |
| C0 Option MCO: | CX||No C0 option |
| C1 Option: | X||No C1 option |
| Phase: | T||Three phase |
| ECCN EU: | Y901||Y901 |
| Software Release: | SXXX||Latest release std. SW. |
| Mains Voltage: | 4||380 - 480 VAC |
| A Option: | AX||No A Option |
| D Option: | DX||No D option |
-
