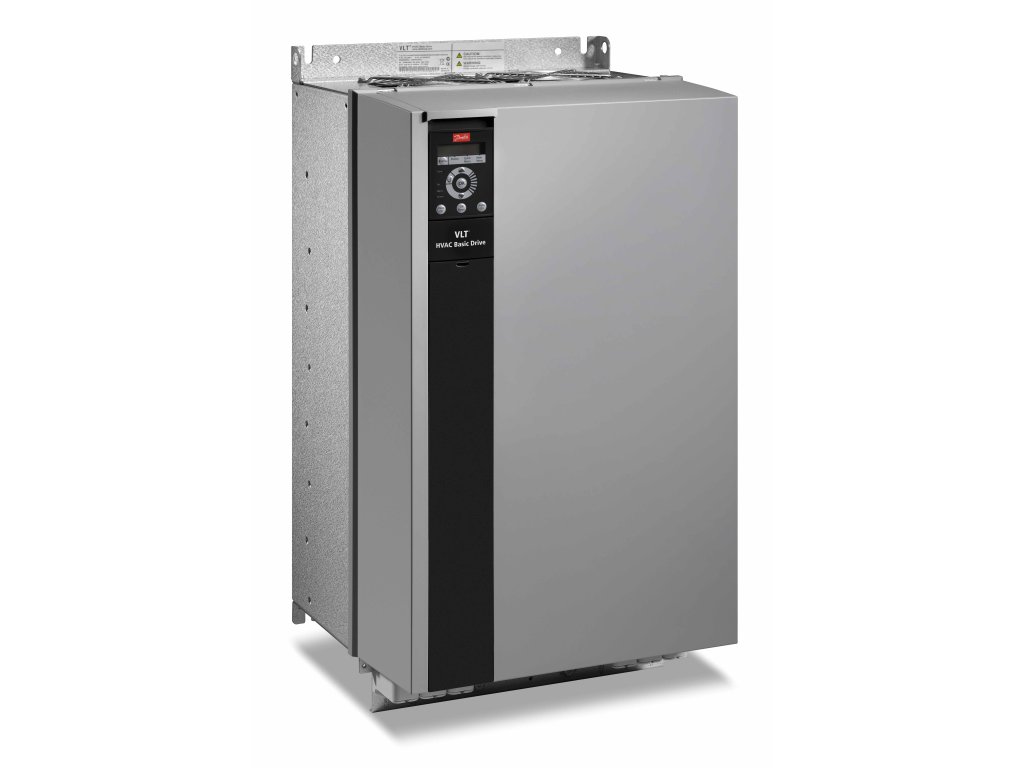

FC-101P90KT4E20H2XXCXX6S600XAXBXCXXXXDX

Kód: 137U4813

Neohodnoceno

Značka: Danfoss

ID433536430384 0101

287 857 Kč 237 898 Kč bez DPH

Momentálně nedostupné

Detailní popis produktu

Popis produktu není dostupný

Doplňkové parametry

Kategorie:	VLT HVAC Drive - pro vzduchotechniku
Hmotnost:	51 kg
EAN:	5715253732503
RFI Filter:	H2\|\|RFI Filter##H1: Integrated EMC filter. Fulfil EN 55011 Class A1/B and EN/IEC 61800-3 Category 1/2.H2: No extra EMC filter. Fulfil EN 55011 Class A2 and EN/IEC 61800-3 Category 3.H3: Integrated EMC filter. Fulfil EN 55011 class A1/B and EN/IEC 61800-3 Category 1/2 (enclosuresize A1 only).See Design Guide for specific cable length depending on power size.
Calculated Package Weight:	0.300
Calculated Gross Weight [kg]:	51.300
Power Rating:	P90K\|\|(P90K) 90 KW / 125 HP##HP not Valid if T7 drive, HP usually one size down
Adaptation A:	X\|\|Standard Cable Entries
Vendor:	ERR01\|\|Cannot Determine Vendor
Typecode Part 2:	XX6S600XAXBXCXXXXDX
Modelcode01:	FC-101P90KT4E20H2XXC
Modelcode02:	XX6S600XAXBXCXXXXDX
Producing plant:	ERR01\|\|Cannot Determine Vendor
Adaptation B:	6\|\|UL61800-5-1 certification##6 indicates IEC/UL 61800-5-1 Compliance
Calculated Net Weight [kg]:	51.000
Delivering plant:	ERR01\|\|ERR01
Software Language Pack:	X\|\|Standard Language Pack##Software
Typecode Part 1:	FC-101P90KT4E20H2XXC
Mains Option:	X\|\|No Mains Option
Product Group:	FC-\|\|VLT® HVAC Drive FC-
Enclosure:	E20\|\|(E20) IP20 / Chassis##Normal cabinet mounting A, B & C Frames
Frame Size:	H8\|\|H8
ECCN US:	3A999.a\|\|3A999.a
Series:	101\|\|101##Basic version
Product View (Switch):	GLBL\|\|Global (Standard)
C Option Software:	XX\|\|No software option##Configuration software for speed synchrnisation between drives
Coating PCB:	C\|\|Coated PCB
Product Catalog:	NO_VIEW\|\|NO VIEW
B Option:	BX\|\|No B Option
Cross-Plant Configurable Material:	VLT® HVAC Basic Drive FC 101
LCP:	X\|\|No Loc. Cont. Panel
Brake - Safe Stop:	X\|\|No brake chopper
C0 Option MCO:	CX\|\|No C0 option
C1 Option:	X\|\|No C1 option
Phase:	T\|\|Three phase
ECCN EU:	Y901\|\|Y901
Software Release:	S600\|\|UL61800-5-1##S600 indicated dedicated SW for IEC/UL 61800-5-1 Compliance
Mains Voltage:	4\|\|380 - 480 VAC
A Option:	AX\|\|No A Option
D Option:	DX\|\|No D option
