    Domů / Frekvenční měniče / VLT HVAC - pro vzduchotechniku / FC-101P90KT4P20H2XXCXX6S600XAXBXCXXXXDX

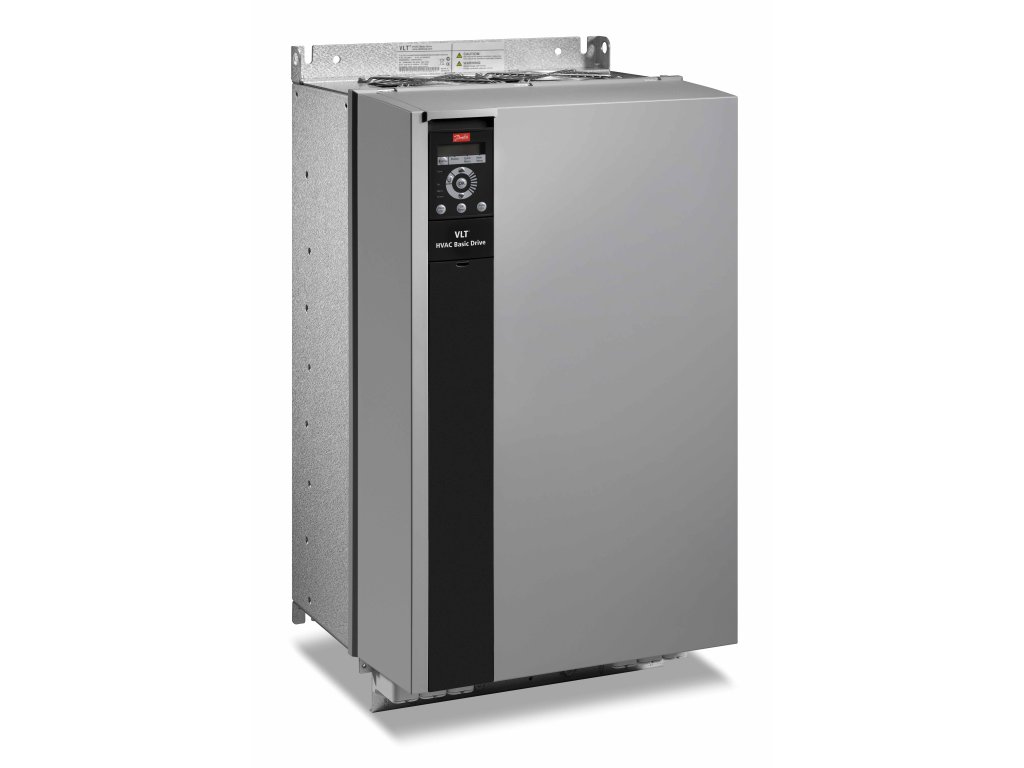

    FC-101P90KT4P20H2XXCXX6S600XAXBXCXXXXDX

    Kód: 137U4815
    Neohodnoceno
    ID433536430384 0101
    288 769 Kč 238 652 Kč bez DPH
    Momentálně nedostupné

    Související produkty

    ID264335132051 0101
    LCP Remote Mounting Cable, 3m
    Momentálně nedostupné
    663 Kč bez DPH
    802 Kč
    Kód: 132B0132

    Detailní popis produktu

    Popis produktu není dostupný

    Doplňkové parametry

    Kategorie: VLT HVAC Drive - pro vzduchotechniku
    Hmotnost: 52 kg
    EAN: 5715253732527
    RFI Filter: H2||RFI Filter##H1: Integrated EMC filter. Fulfil EN 55011 Class A1/B and EN/IEC 61800-3 Category 1/2.H2: No extra EMC filter. Fulfil EN 55011 Class A2 and EN/IEC 61800-3 Category 3.H3: Integrated EMC filter. Fulfil EN 55011 class A1/B and EN/IEC 61800-3 Category 1/2 (enclosuresize A1 only).See Design Guide for specific cable length depending on power size.
    Calculated Package Weight: 0.300
    Calculated Gross Weight [kg]: 52.300
    Power Rating: P90K||(P90K) 90 KW / 125 HP##HP not Valid if T7 drive, HP usually one size down
    Adaptation A: X||Standard Cable Entries
    Vendor: ERR01||Cannot Determine Vendor
    Typecode Part 2: XX6S600XAXBXCXXXXDX
    Modelcode01: FC-101P90KT4P20H2XXC
    Modelcode02: XX6S600XAXBXCXXXXDX
    Producing plant: ERR01||Cannot Determine Vendor
    Adaptation B: 6||UL61800-5-1 certification##6 indicates IEC/UL 61800-5-1 Compliance
    Calculated Net Weight [kg]: 52.000
    Delivering plant: ERR01||ERR01
    Software Language Pack: X||Standard Language Pack##Software
    Typecode Part 1: FC-101P90KT4P20H2XXC
    Mains Option: X||No Mains Option
    Product Group: FC-||VLT® HVAC Drive FC-
    Enclosure: P20||IP20 / Chassis Backplate##IP 20/ Chassis enclosure Frame B and C BackPlate for open Drive back
    Frame Size: H8||H8
    ECCN US: 3A999.a||3A999.a
    Series: 101||101##Basic version
    Product View (Switch): GLBL||Global (Standard)
    C Option Software: XX||No software option##Configuration software for speed synchrnisation between drives
    Coating PCB: C||Coated PCB
    Product Catalog: NO_VIEW||NO VIEW
    B Option: BX||No B Option
    Cross-Plant Configurable Material: VLT® HVAC Basic Drive FC 101
    LCP: X||No Loc. Cont. Panel
    Brake - Safe Stop: X||No brake chopper
    C0 Option MCO: CX||No C0 option
    C1 Option: X||No C1 option
    Phase: T||Three phase
    ECCN EU: Y901||Y901
    Software Release: S600||UL61800-5-1##S600 indicated dedicated SW for IEC/UL 61800-5-1 Compliance
    Mains Voltage: 4||380 - 480 VAC
    A Option: AX||No A Option
    D Option: DX||No D option
