DEVIrail™ 20 W chrom (tvar U)
Kód: 83900205Související produkty
Detailní popis produktu

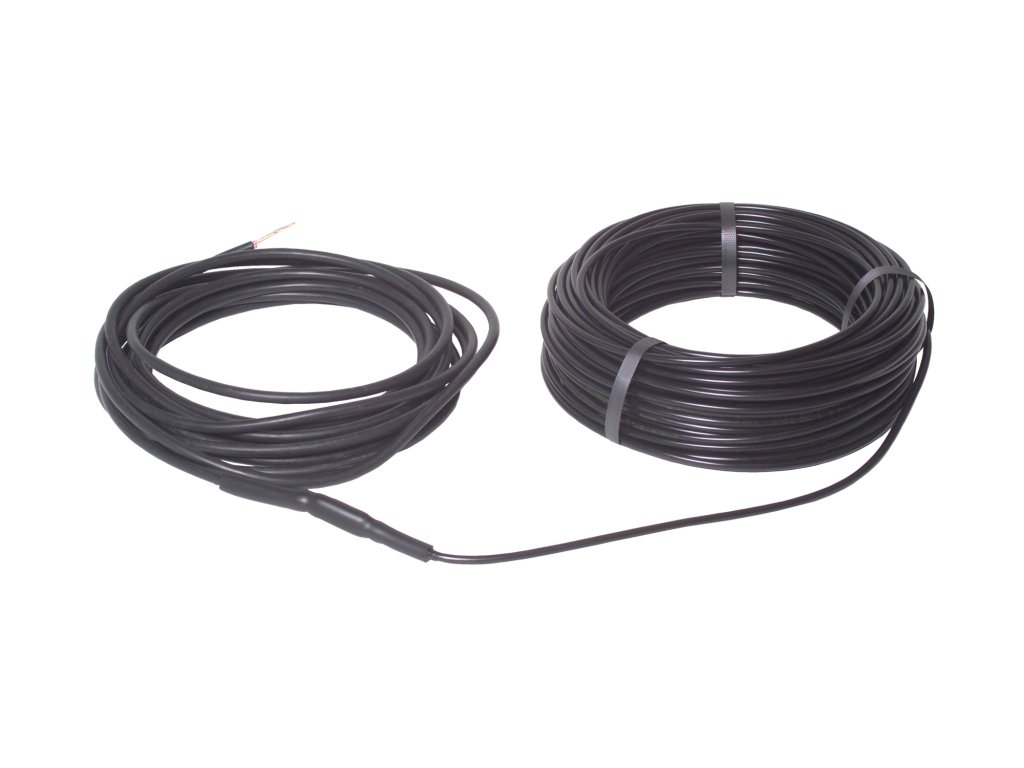

Topné kabely, DEVIasphalt™ 30T, 30 W/m, 145 m, Napájecí napětí [V] AC: 400Doplňkové parametry
| Kategorie: | DEVIasphalt™ |
|---|---|
| Hmotnost: | 10.89 kg |
| EAN: | 5703466192900 |
| Cable screen: | Alufoil 100% |
| Outer sheath: | XPLO |
| Outer sheath colour: | Black |
| Cable resistance [Ohm]: | 37.3000 |
| Resistance (EF002431): | 37.3 |
| Cable on drum: | No |
| Supply voltage [V] AC: | 400 |
| UL mark: | No |
| Flame retardant: | Yes |
| Cold lead quantity: | 1 |
| Package width [mm]: | 386 |
| Cold lead type: | DTWK |
| Package height [mm]: | 207 |
| Package depth [mm]: | 386 |
| Width (EF000008): | 386 |
| Cable diameter [mm]: | 7.0 |
| Number of cold conductors (EF002200): | 1 |
| Cold lead length [m]: | 10.0 |
| Pulling strength [N]: | <gt/>300 N |
| Cold lead conductor quantity: | 2 |
| Cold lead: | Yes |
| Certification company: | Intertek Semko |
| Length of cold conductors (EF002201): | 10000 |
| Short period temperature [°C] [Max]: | 240 |
| Installation temperature [°C] [Min]: | -5 |
| Cut to length: | No |
| Heating output [W]: | 4295 |
| Conductor insulation: | FEP |
| Application: | Asphalt ice and snow melting |
| Product version: | Ready-made |
| Bending diameter [mm] [Min]: | 50 |
| Bi-conductor screen [mm²]: | Cu 1.0 |
| Filler material: | PEX |
| Warranty type: | 20-year full service warranty |
| Cable type: | Twin conductor |
| UNSPSC CODE: | 26121601 |
| Cold lead size [mm²]: | 2.5 |
| Thickness (EF000125): | 7 |
| Element IP Class: | IPX7 |
| Cable length [m]: | 145.000 |
| China RoHS compliance: | Out of scope |
| Operating temperature [°C] [max]: | 60 |
| Suitable as roof surface heating (EF009901): | FALSE |
| Approval: | CE |
| Suitable as outdoor surface heating (EF009900): | TRUE |
| Deformation strength [N]: | <gt/>1500 N |
| Length (EF001438): | 145000 |
| REACH Candidate List substances: | No |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS compliance: | Yes |
| Connected load (EF004148): | 4295-4295 |
| Warranty [Year]: | 20 |
| Heating principle: | Serial resistive |
| UV Protected: | Yes |
| EPD available: | Yes |
| Non operating temperature [°C] [Max]: | 85 |
| Power (EF000076): | 4295 |
| Connection voltage (EF005502): | 400-400 |
| Model (EF000010): | Heating cable |
| Heating conductor load (EF002197): | 30 |
| Cable output [W/m]: | 30 |
| Lead free: | Yes |
-
