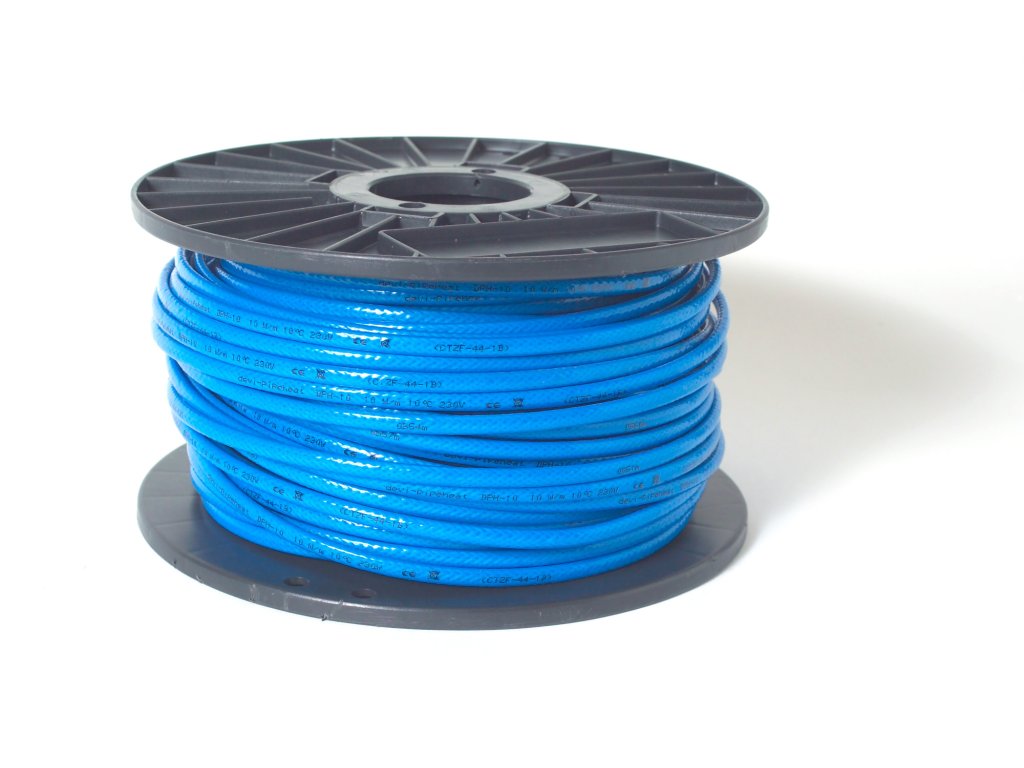

Topné kabely, DEVIpipeheat™ 10 V2, 10W/m@10°C, 1 m, Napájecí napětí [V] AC: 230

Kód: 98300019

Neohodnoceno

508 Kč 420 Kč bez DPH

Momentálně nedostupné

Topné kabely, DEVIpipeheat™ 10 V2, 10W/m@10°C, 1 m, Napájecí napětí [V] AC: 230

Kategorie:	DEVIpipeheat™ 10 V2
Hmotnost:	64 kg
EAN:	5703466217801
Cable width [mm]:	7.70
Cable height [mm]:	5.3
Cable screen:	Alufoil 100%
Outer sheath:	TPE
Bending diameter [mm] [Min]:	50
Outer sheath colour:	Light blue
Filler material:	TPE
Warranty type:	5-year product warranty
Cable type:	Twin conductor
UNSPSC CODE:	26121601
Cable on drum:	No
Element IP Class:	68
Cable length [m]:	1.000
China RoHS compliance:	Out of scope
Supply voltage [V] AC:	230
Operating temperature [°C] [max]:	65
UL mark:	No
Approval:	CE, UkrTEST, EAC
Height (EF000040):	5.3
REACH Candidate List substances:	No
Contains batteries:	No
Max. hold temperature (EF005979):	65
Nominal voltage (EF000002):	230
Width (EF000008):	7.7
CE mark:	Yes
EU RoHS exemption clause:	No
EU RoHS compliance:	Yes
Colour (EF000007):	Blue
Cold lead:	No
Application (EF000041):	Pipe heating
Certification company:	CE, EAC, UkrTEST
Installation temperature [°C] [Min]:	-5
Cut to length:	Yes
Warranty [Year]:	5
Conductor type:	Tinned copper
Heating principle:	Self-limiting
Conductor insulation:	Cross linked polyolefin
Non operating temperature [°C] [Max]:	65
Cable output [W/m@°C]:	10W/m@10°C
Application:	Pipe / tank frost protection
Product version:	Cut-to-length
Heating capacity (EF000344):	10
Diameter (EF000551):	0
