DEVIfast™ Double Special RB 25m pro odporové kabely, FeZn
Kód: 98300079Související produkty
Detailní popis produktu

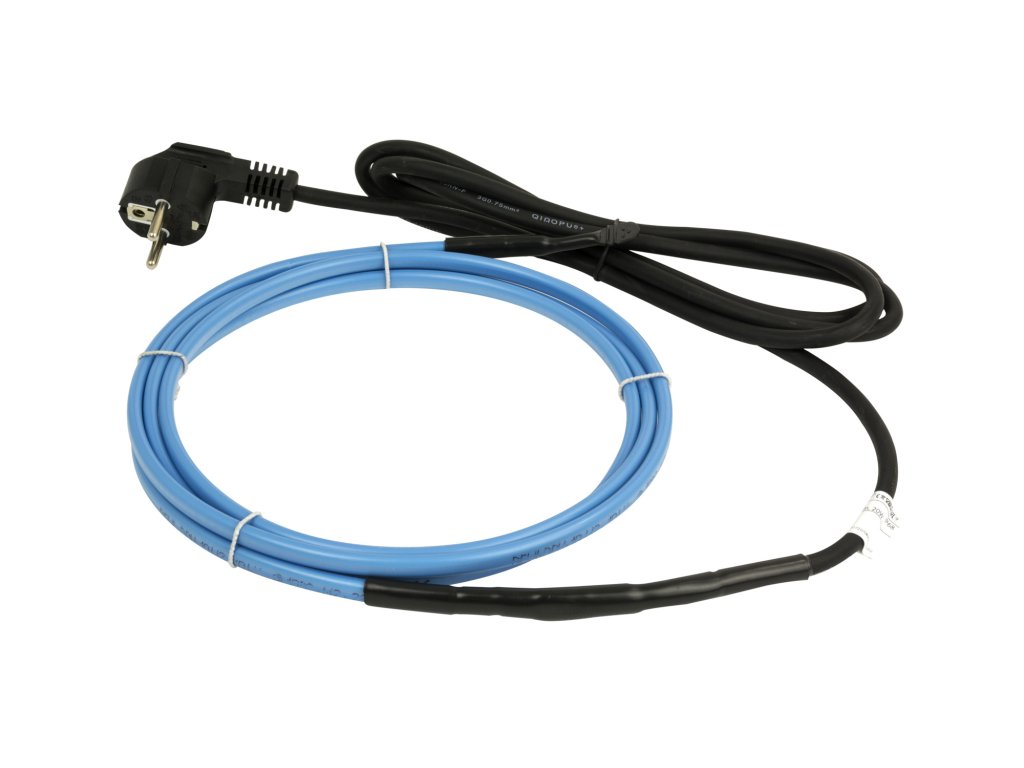

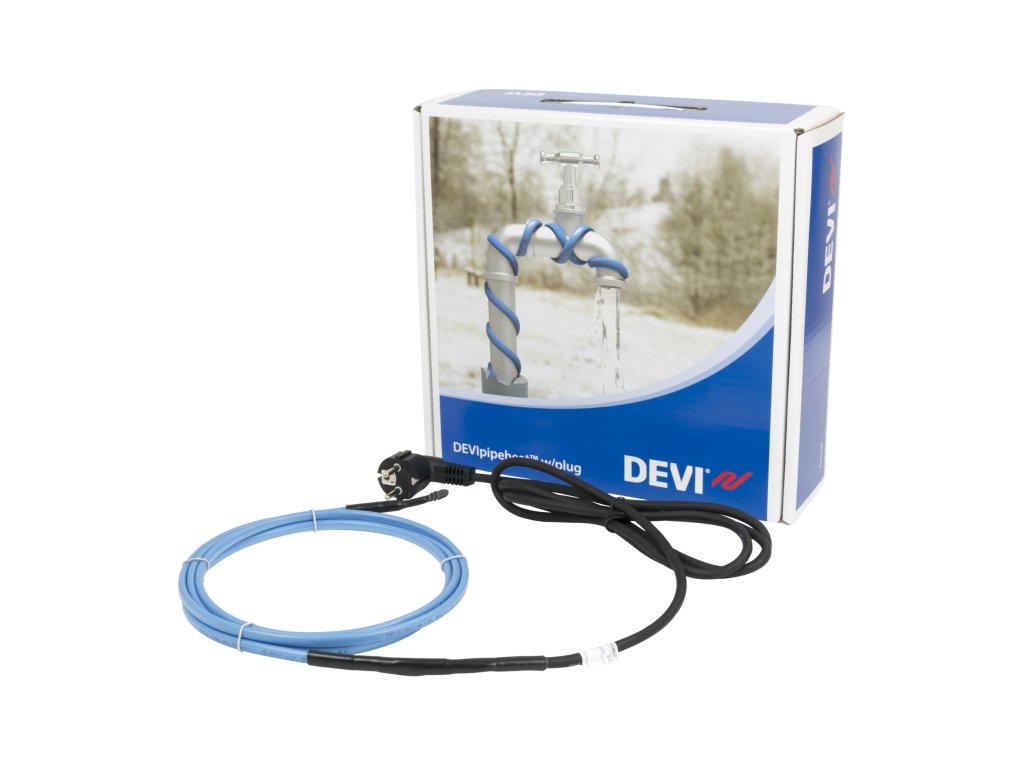

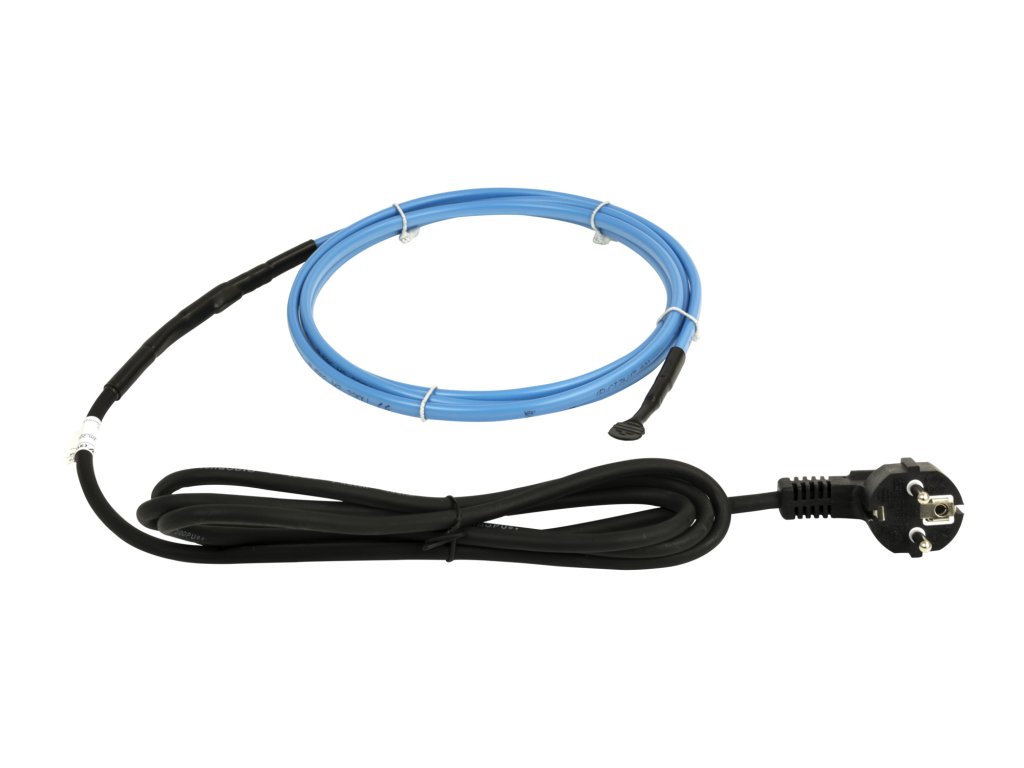

Topné kabely, DEVIpipeheat™ Readymade, 10W/m@10°C, 19 m, Napájecí napětí [V] AC: 230Doplňkové parametry
| Kategorie: | DEVIpipeheat™ 10 V2 |
|---|---|
| Hmotnost: | 1.43 kg |
| EAN: | 5703466218006 |
| Cable width [mm]: | 7.70 |
| Cable screen: | Alufoil 100% |
| Outer sheath: | TPE |
| Cable output [W@°C]: | 190W@10°C |
| Outer sheath colour: | Light blue |
| Cable on drum: | No |
| Supply voltage [V] AC: | 230 |
| UL mark: | No |
| Height (EF000040): | 5.3 |
| Cold lead quantity: | 1 |
| Package width [mm]: | 420 |
| Package height [mm]: | 60 |
| Nominal voltage (EF000002): | 230 |
| Package depth [mm]: | 320 |
| Width (EF000008): | 7.7 |
| Cold lead length [m]: | 2.0 |
| Cold lead conductor quantity: | 3 |
| Colour (EF000007): | Blue |
| Cold lead: | Yes |
| Application (EF000041): | Pipe heating |
| Certification company: | CE, EAC, UkrTEST |
| Installation temperature [°C] [Min]: | -5 |
| Cut to length: | No |
| Conductor type: | Tinned copper |
| Conductor insulation: | Cross linked polyolefin |
| Cable output [W/m@°C]: | 10W/m@10°C |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Application: | Pipe / tank frost protection |
| Product version: | Ready-made |
| Heating capacity (EF000344): | 10 |
| Cable height [mm]: | 5.3 |
| Bending diameter [mm] [Min]: | 50 |
| Filler material: | TPE |
| Warranty type: | 5-year product warranty |
| Cable type: | Twin conductor |
| UNSPSC CODE: | 26121601 |
| Element IP Class: | 67 |
| Cable length [m]: | 19.000 |
| China RoHS compliance: | Out of scope |
| Operating temperature [°C] [max]: | 65 |
| In scope of WEEE: | Yes |
| Approval: | CE, UkrTEST, EAC |
| Length (EF001438): | 19 |
| REACH Candidate List substances: | No |
| Contains batteries: | No |
| Max. hold temperature (EF005979): | 65 |
| CE mark: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Warranty [Year]: | 5 |
| Heating principle: | Self-limiting |
| Non operating temperature [°C] [Max]: | 65 |
| Diameter (EF000551): | 0 |
-
