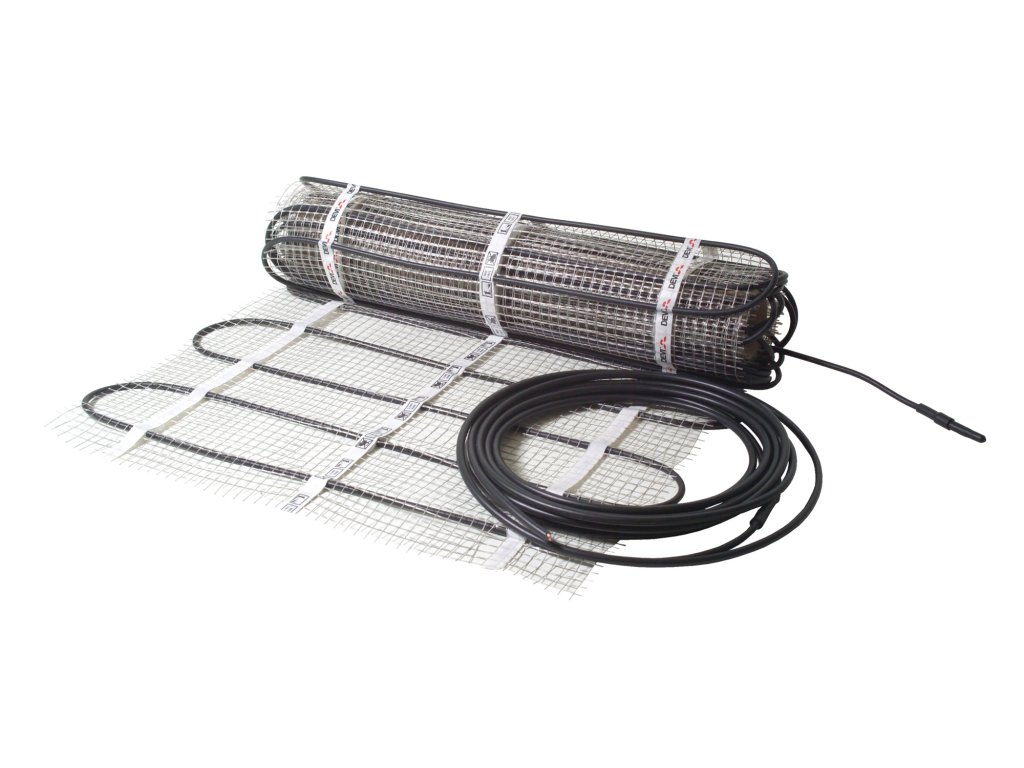

Topné rohože, DEVIasphalt™ 300T, 300 W/m², 1.70 m², Napájecí napětí [V] AC: 400
Kód: 83900162Související produkty
Detailní popis produktu
Topné rohože, DEVIasphalt™ 300T, 300 W/m², 1.70 m², Napájecí napětí [V] AC: 400Doplňkové parametry
| Kategorie: | DEVIasphalt™ |
|---|---|
| Hmotnost: | 2.8 kg |
| EAN: | 5703466192689 |
| Cable screen: | Alufoil 100% |
| Outer sheath: | XPLO |
| Outer sheath colour: | Black |
| Cable resistance [Ohm]: | 306.2000 |
| Resistance (EF002431): | 305 |
| Supply voltage [V] AC: | 400 |
| UL mark: | No |
| Flame retardant: | Yes |
| Cold lead quantity: | 1 |
| Package width [mm]: | 120 |
| Cold lead type: | DTWK |
| Package height [mm]: | 120 |
| Package depth [mm]: | 500 |
| Width (EF000008): | 500 |
| Cable diameter [mm]: | 7.0 |
| Number of cold conductors (EF002200): | 1 |
| Cold lead length [m]: | 10.0 |
| Pulling strength [N]: | <gt/>300 N |
| Cold lead conductor quantity: | 2 |
| Cold lead: | Yes |
| Certification company: | Intertek Semko |
| Length of cold conductors (EF002201): | 10000 |
| Short period temperature [°C] [Max]: | 240 |
| Installation temperature [°C] [Min]: | -5 |
| Coverage area [m²]: | 1.70 |
| Set accessories: | No |
| Thickness [mm]: | 7.00 |
| Heating output [W]: | 525 |
| Conductor insulation: | FEP |
| Surface (EF000486): | 1.7 |
| Mat output [W/m²]: | 300 |
| Application: | Asphalt ice and snow melting |
| Bi-conductor screen [mm²]: | 1 |
| Filler material: | XPLE |
| Warranty type: | 20-year full service warranty |
| Cable type: | Twin conductor |
| UNSPSC CODE: | 40101830 |
| Product description: | DEVIasphalt™ 300T |
| Cold lead size [mm²]: | 2.5 |
| Thickness (EF000125): | 7 |
| Element IP Class: | IPX7 |
| China RoHS compliance: | Out of scope |
| Operating temperature [°C] [max]: | 60 |
| Suitable as roof surface heating (EF009901): | FALSE |
| Approval: | CE |
| Suitable as outdoor surface heating (EF009900): | TRUE |
| Deformation strength [N]: | <gt/>1500 N |
| Length (EF001438): | 3400 |
| REACH Candidate List substances: | No |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS compliance: | Yes |
| Self-adhesive (EF000434): | FALSE |
| Connected load (EF004148): | 520-520 |
| Warranty [Year]: | 20 |
| Heating principle: | Serial resistive |
| UV Protected: | Yes |
| Mat width [m]: | 0.5 |
| EPD available: | Yes |
| Non operating temperature [°C] [Max]: | 85 |
| Power (EF000076): | 300 |
| Connection voltage (EF005502): | 400-400 |
| With support mat (EF002198): | TRUE |
| Mat length [m]: | 3.40 |
| Model (EF000010): | Heating cable |
| Heating conductor load (EF002197): | 30 |
| Fixation thermal conductor (EF002199): | Glued |
| Lead free: | Yes |
-
