    DEVIcomfort™ 150T (DTIR), 0,5 m2, 75 W

    Kód: 83900171
    Neohodnoceno

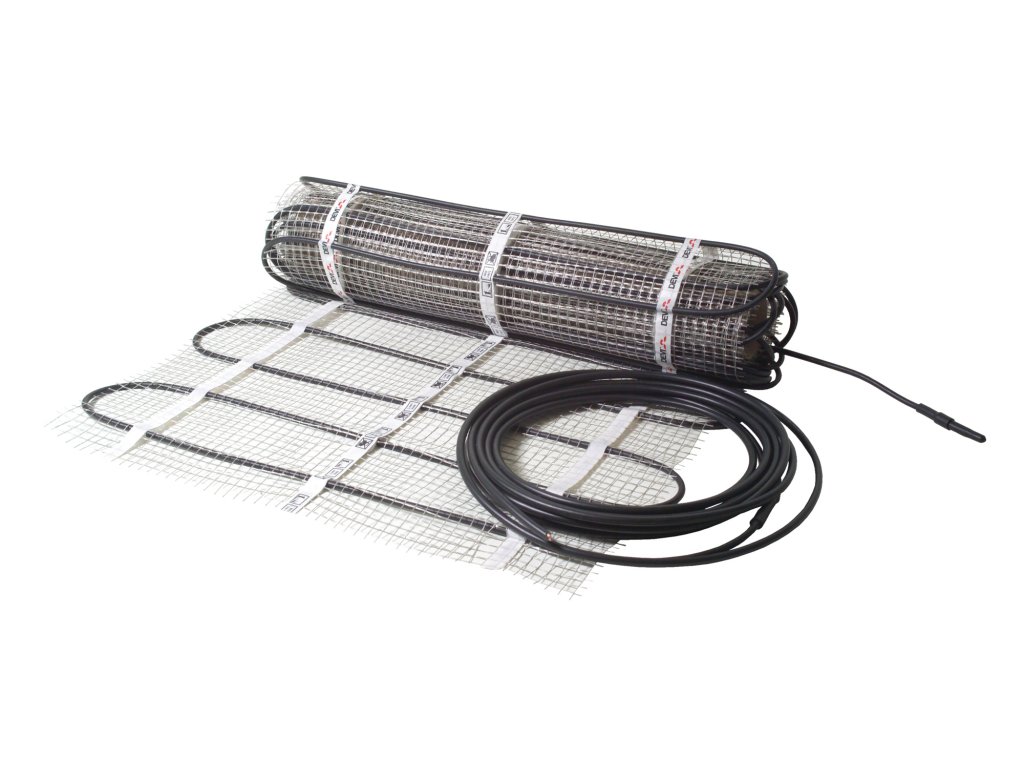

    ID035239479900 0102 preview
    15 736 Kč 13 005 Kč bez DPH
    Momentálně nedostupné
    Topné rohože, DEVIasphalt™ 300T, 300 W/m², 12.00 m², Napájecí napětí [V] AC: 400

    Detailní informace

    Související produkty

    ID168345903801 0102 preview
    DEVIsnow™ 30T (DTCE), 140 m, 4110 W, 230 V
    Momentálně nedostupné
    317 Kč bez DPH
    384 Kč

    Příslušenství, Snadná instalace

    Kód: 19808234
    ID168345903801 0102 preview
    DEVIasphalt™ 30T (DTIK), 190 m, 5770 W, 400 V
    Momentálně nedostupné
    1 073 Kč bez DPH
    1 298 Kč

    Příslušenství, Snadná instalace

    Kód: 19808236

    Detailní popis produktu

    Topné rohože, DEVIasphalt™ 300T, 300 W/m², 12.00 m², Napájecí napětí [V] AC: 400

    Doplňkové parametry

    Kategorie: DEVIasphalt™
    Hmotnost: 10.34 kg
    EAN: 5703466192771
    Cable screen: Alufoil 100%
    Outer sheath: XPLO
    Outer sheath colour: Black
    Cable resistance [Ohm]: 44.2000
    Resistance (EF002431): 44.1
    Supply voltage [V] AC: 400
    UL mark: No
    Flame retardant: Yes
    Cold lead quantity: 1
    Package width [mm]: 200
    Cold lead type: DTWK
    Package height [mm]: 200
    Package depth [mm]: 750
    Width (EF000008): 750
    Cable diameter [mm]: 7.0
    Number of cold conductors (EF002200): 1
    Cold lead length [m]: 10.0
    Pulling strength [N]: <gt/>300 N
    Cold lead conductor quantity: 2
    Cold lead: Yes
    Certification company: Intertek Semko
    Length of cold conductors (EF002201): 10000
    Short period temperature [°C] [Max]: 240
    Installation temperature [°C] [Min]: -5
    Coverage area [m²]: 12.00
    Set accessories: No
    Thickness [mm]: 7.00
    Heating output [W]: 3620
    Conductor insulation: FEP
    Surface (EF000486): 12
    Mat output [W/m²]: 300
    Application: Asphalt ice and snow melting
    Bi-conductor screen [mm²]: 1
    Filler material: XPLE
    Warranty type: 20-year full service warranty
    Cable type: Twin conductor
    UNSPSC CODE: 40101830
    Product description: DEVIasphalt™ 300T
    Cold lead size [mm²]: 2.5
    Thickness (EF000125): 7
    Element IP Class: IPX7
    China RoHS compliance: Out of scope
    Operating temperature [°C] [max]: 60
    Suitable as roof surface heating (EF009901): FALSE
    Approval: CE
    Suitable as outdoor surface heating (EF009900): TRUE
    Deformation strength [N]: <gt/>1500 N
    Length (EF001438): 16000
    REACH Candidate List substances: No
    Contains batteries: No
    CE mark: Yes
    EU RoHS compliance: Yes
    Self-adhesive (EF000434): FALSE
    Connected load (EF004148): 3625-3625
    Warranty [Year]: 20
    Heating principle: Serial resistive
    UV Protected: Yes
    Mat width [m]: 0.8
    EPD available: Yes
    Non operating temperature [°C] [Max]: 85
    Power (EF000076): 300
    Connection voltage (EF005502): 400-400
    With support mat (EF002198): TRUE
    Mat length [m]: 16.00
    Model (EF000010): Heating cable
    Heating conductor load (EF002197): 30
    Fixation thermal conductor (EF002199): Glued
    Lead free: Yes
