    Domů / DEVI elektrické vytápění / Topné rohože / DEVIcomfort™ / DEVIsnow™ 300T (DTCE), 0,75 x 14,6 m, 3300 W, 230 V

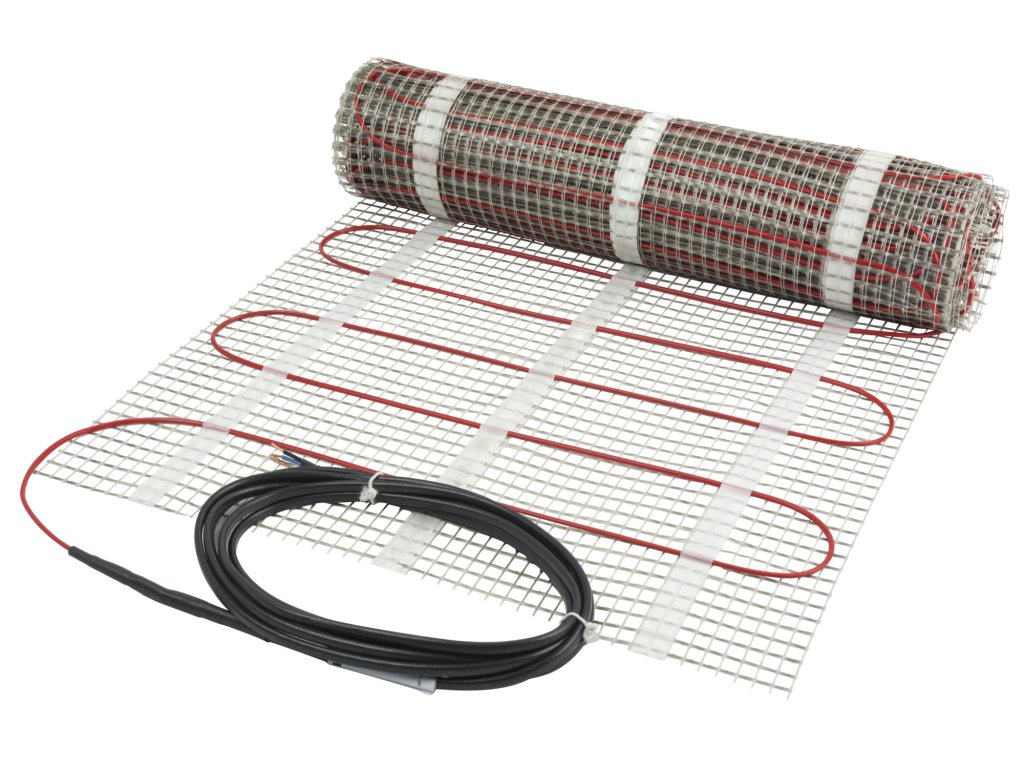

    DEVIsnow™ 300T (DTCE), 0,75 x 14,6 m, 3300 W, 230 V

    Kód: 83030514
    Neohodnoceno
    ID164329397359 0201 preview
    4 329 Kč 3 578 Kč bez DPH
    Momentálně nedostupné
    Topné rohože, DEVIcomfort™ 100T, 100 W/m², 4.00 m², Napájecí napětí [V] AC: 230

    Detailní informace

    Související produkty

    ID369937675672 0201
    DEVIasphalt™ 30T (DTIK), 17,5 m, 520 W, 400 V
    Momentálně nedostupné
    1 425 Kč bez DPH
    1 724 Kč

    Příslušenství, Topné kabely

    Kód: 18055510

    Detailní popis produktu

    Topné rohože, DEVIcomfort™ 100T, 100 W/m², 4.00 m², Napájecí napětí [V] AC: 230

    Doplňkové parametry

    Kategorie: DEVIcomfort™
    Hmotnost: 2.15 kg
    EAN: 5703466162521
    Cable screen: Alufoil 100%
    Outer sheath: PVC
    Outer sheath colour: Red
    Cable resistance [Ohm]: 132.9000
    Resistance (EF002431): 132
    Supply voltage [V] AC: 230
    UL mark: No
    Flame retardant: Yes
    Cold lead quantity: 1
    Package width [mm]: 220
    Cold lead type: DTWB
    Package height [mm]: 590
    Package depth [mm]: 220
    Width (EF000008): 500
    Cable diameter [mm]: 4.0
    Number of cold conductors (EF002200): 1
    Cold lead length [m]: 2.3
    Pulling strength [N]: 120 N
    Cold lead conductor quantity: 2
    Cold lead: Yes
    With controller (EF003579): FALSE
    Certification company: Intertek Semko, UkrTEST
    Length of cold conductors (EF002201): 2300
    Installation temperature [°C] [Min]: -5
    Coverage area [m²]: 4.00
    Set accessories: Flexpipe ø6.7 2.5m Black
    Thickness [mm]: 4.50
    Heating output [W]: 400
    Conductor insulation: FEP
    Surface (EF000486): 4
    Mat output [W/m²]: 100
    Application: Floor heating
    Warranty type: 20-year full service warranty
    Cable type: Twin conductor
    UNSPSC CODE: 40101830
    Product description: DEVIcomfort™ 100T
    Cold lead size [mm²]: 1.0
    Thickness (EF000125): 4.5
    Element IP Class: IPX7
    China RoHS compliance: Out of scope
    Operating temperature [°C] [max]: 85
    Suitable as roof surface heating (EF009901): FALSE
    Approval: CE, UkrTEST, EAC
    Suitable as outdoor surface heating (EF009900): FALSE
    Deformation strength [N]: 600 N
    Length (EF001438): 8000
    REACH Candidate List substances: No
    Contains batteries: No
    CE mark: Yes
    EU RoHS compliance: Yes
    Self-adhesive (EF000434): TRUE
    Connected load (EF004148): 400-400
    Warranty [Year]: 20
    Heating principle: Serial resistive
    UV Protected: No
    Mat width [m]: 0.5
    EPD available: Yes
    Non operating temperature [°C] [Max]: 90
    Power (EF000076): 100
    Connection voltage (EF005502): 230-230
    With support mat (EF002198): TRUE
    Mat length [m]: 8.00
    Model (EF000010): Heating cable
    Heating conductor load (EF002197): 11
    Fixation thermal conductor (EF002199): Glued
    Lead free: Yes
