    DEVImulti™ PVC (DMIH), 4 x 0,220 Ohm/m

    Kód: 83902062
    Neohodnoceno
    ID165846379400 0102 preview
    13 313 Kč 11 002 Kč bez DPH
    Momentálně nedostupné
    Topné rohože, DEVIsnow™ 300T, 300 W/m², 9.75 m², Napájecí napětí [V] AC: 400

    Detailní informace

    Související produkty

    ID419731039679 0102
    DEVIfast™ Double SLC RB 25m pro samoregulační kabely, FeZn
    Momentálně nedostupné
    1 312 Kč bez DPH
    1 588 Kč

    Příslušenství, Topné kabely

    Kód: 18055350

    Detailní popis produktu

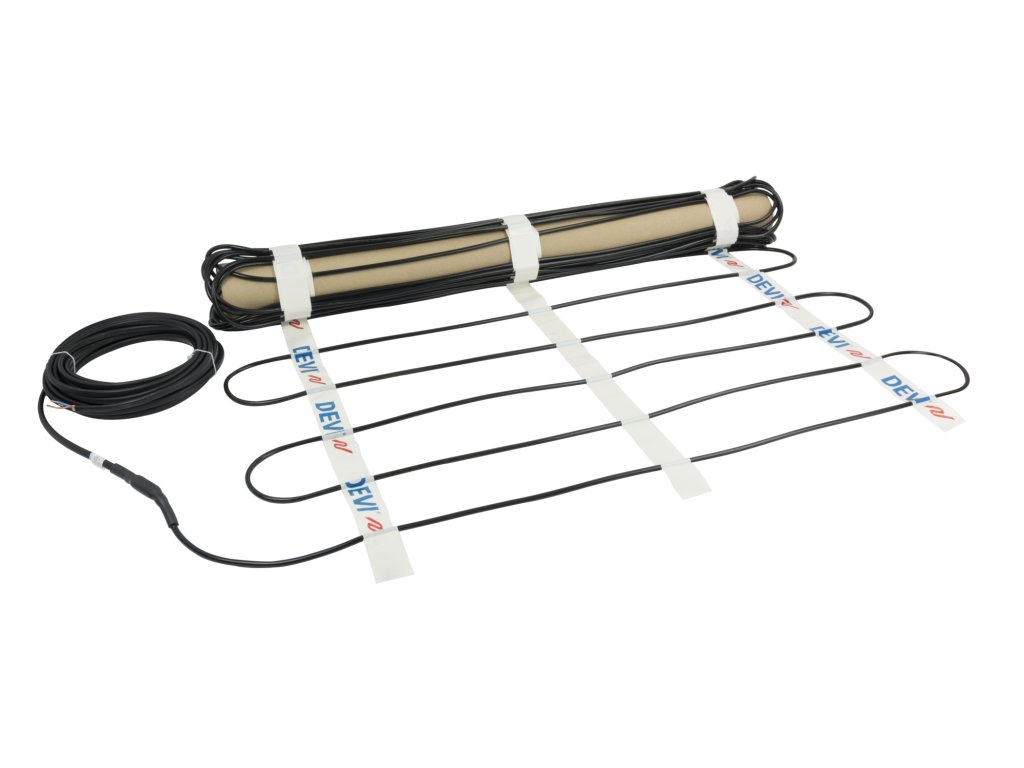

    Topné rohože, DEVIsnow™ 300T, 300 W/m², 9.75 m², Napájecí napětí [V] AC: 400

    Doplňkové parametry

    Kategorie: DEVIsnow™
    Hmotnost: 6.5 kg
    EAN: 5703466157732
    Cable screen: Alufoil 100%
    Outer sheath: PVC
    Outer sheath colour: Black
    Cable resistance [Ohm]: 55.5000
    Resistance (EF002431): 55.4
    Supply voltage [V] AC: 400
    UL mark: No
    Flame retardant: Yes
    Cold lead quantity: 1
    Package width [mm]: 190
    Cold lead type: DTCL
    Package height [mm]: 190
    Package depth [mm]: 670
    Width (EF000008): 750
    Cable diameter [mm]: 7.0
    Number of cold conductors (EF002200): 1
    Cold lead length [m]: 10.0
    Pulling strength [N]: 450 N
    Cold lead conductor quantity: 3
    Cold lead: Yes
    Certification company: Intertek Semko
    Length of cold conductors (EF002201): 10000
    Installation temperature [°C] [Min]: -5
    Coverage area [m²]: 9.75
    Set accessories: No
    Thickness [mm]: 7.00
    Heating output [W]: 2890
    Conductor insulation: FEP
    Surface (EF000486): 9.75
    Mat output [W/m²]: 300
    Application: Ground ice and snow melting, Roof frost protection
    Filler material: PEX
    Warranty type: 20-year full service warranty
    Cable type: Twin conductor
    UNSPSC CODE: 40101830
    Product description: DEVIsnow™ 300T
    Cold lead size [mm²]: 1.5
    Thickness (EF000125): 7
    Element IP Class: IPX7
    China RoHS compliance: Out of scope
    Operating temperature [°C] [max]: 60
    Suitable as roof surface heating (EF009901): FALSE
    Approval: CE, EAC
    Suitable as outdoor surface heating (EF009900): TRUE
    Deformation strength [N]: <gt/>1500 N
    Length (EF001438): 13000
    REACH Candidate List substances: No
    Contains batteries: No
    CE mark: Yes
    EU RoHS compliance: Yes
    Self-adhesive (EF000434): FALSE
    Connected load (EF004148): 2890-2890
    Warranty [Year]: 20
    Heating principle: Serial resistive
    UV Protected: Yes
    Mat width [m]: 0.8
    EPD available: Yes
    Non operating temperature [°C] [Max]: 90
    Power (EF000076): 300
    Connection voltage (EF005502): 400-400
    With support mat (EF002198): TRUE
    Mat length [m]: 13.00
    Model (EF000010): Heating cable
    Heating conductor load (EF002197): 30
    Fixation thermal conductor (EF002199): Glued
    Lead free: Yes
