    IC2-30FA1N02-06A8E20F0+ACXX

    Kód: 132L6112
    Neohodnoceno
    ID419829725097 0101
    16 296 Kč 13 468 Kč bez DPH
    Momentálně nedostupné

    Související produkty

    ID421343442059 0101
    IP21/Type 1 conversion kit, MA02c
    Momentálně nedostupné
    1 507 Kč bez DPH
    1 823 Kč
    Kód: 132G0189

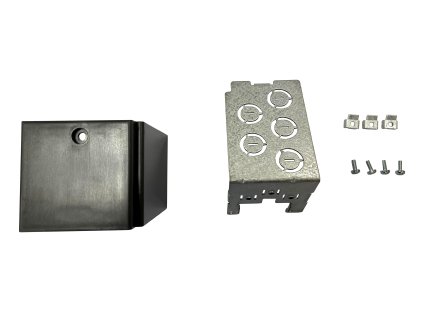

    ID421343452047 0101
    NEMA 1 conversion kit, MA02c
    Momentálně nedostupné
    964 Kč bez DPH
    1 167 Kč
    Kód: 132G0196
    ID421343462033 0101
    Decoupling plate mounting kit, MA02c
    Momentálně nedostupné
    633 Kč bez DPH
    766 Kč
    Kód: 132G0203
    ID431473495881 0101
    Control Panel 2.0 OP2
    Momentálně nedostupné
    1 476 Kč bez DPH
    1 786 Kč
    Kód: 132G0234
    ID440634441384 0101
    Surface mount kit OA2
    Momentálně nedostupné
    60 Kč bez DPH
    73 Kč
    Kód: 132G0235
    ID440634537380 0101
    Flush mount kit OA2
    Momentálně nedostupné
    361 Kč bez DPH
    437 Kč
    Kód: 132G0236
    ID440634639376 0101
    Control Panel Cable 1.5m OA2
    Momentálně nedostupné
    361 Kč bez DPH
    437 Kč
    Kód: 132G0237
    ID440634724372 0101
    Control Panel Cable 3m OA2
    Momentálně nedostupné
    602 Kč bez DPH
    729 Kč
    Kód: 132G0238
    Zobrazit všechny související produkty Předchozí produkt Další produkt

    Detailní popis produktu

    Popis produktu není dostupný

    Doplňkové parametry

    Kategorie: iC2-Micro
    Hmotnost: 1.28 kg
    EAN: 5714853456550
    Supporting protocol for KNX (EF003055): FALSE
    Calculated Gross Weight [kg]: 1.600
    Number of interfaces PROFINET (EF006932): 0
    Supporting protocol for Modbus (EF003057): TRUE
    Supporting protocol for Data-Highway (EF003058): FALSE
    With optical interface (EF003028): FALSE
    Supporting protocol for CAN (EF003053): FALSE
    Vendor: ERR01||Cannot Determine Vendor
    Supporting protocol for INTERBUS (EF003054): FALSE
    Number of phases output (EF006998): 3
    Typecode Part 2: -000060917
    Height (EF000040): 176
    Number of HW-interfaces RS-422 (EF003022): 0
    Modelcode01: IC2-30FA1N02-06A8E20F0
    Modelcode02: +ACXX
    Number of HW-interfaces RS-485 (EF003023): 1
    Supporting protocol for TCP/IP (EF003050): FALSE
    Width (EF000008): 75
    Number of HW-interfaces industrial Ethernet (EF003020): 0
    Supporting protocol for LON (EF003017): FALSE
    Supporting protocol for DeviceNet (EF003059): FALSE
    Max. output frequency (EF007350): 500
    Supporting protocol for ASI (EF003051): FALSE
    Number of HW-interfaces RS-232 (EF003021): 0
    Supporting protocol for PROFIBUS (EF003052): FALSE
    Calculated Net Weight [kg]: 1.300
    Number of HW-interfaces USB (EF003025): 0
    Salescode part 2: +ACXX||+ACXX
    Delivering plant: ERR01||ERR01
    Typecode Part 1: IC2-30FA1N02-06A8E20F0
    Number of HW-interfaces serial TTY (EF003024): 0
    Supporting protocol for SERCOS (EF006657): FALSE
    Protection Rating: E20||IP20/Open type##IP20/UL Open Type frames are designed for installation in enclosedcabinets and similar set-ups.
    Number of HW-interfaces other (EF003027): 0
    Depth (EF000049): 157
    Relative symmetric net voltage tolerance (EF007453): 10
    ECCN US: 3A999.a||3A999.a
    Salescode part 1: IC2-30FA1N02-06A8E20F0||IC2-30FA1N02-06A8E20F0
    Power consumption (EF000346): 46
    Supporting protocol for AS-Interface Safety at Work (EF007519): FALSE
    Number of HW-interfaces parallel (EF003026): 0
    DrivePro category: EXCH||Exchange Unit
    Number of phases input (EF007117): 1
    Number of analogue inputs (EF001994): 2
    Supporting protocol for SUCONET (EF003060): FALSE
    Product Group: IC2-30||iC2-30
    4-quadrant operation possible (EF006803): TRUE
    Current Rating: -06A8||6.8 A
    Supporting protocol for other bus systems (EF003062): FALSE
    Max. output voltage (EF009560): 240
    Power Rating: 1K5||1.5 kW/2 HP
    Relative symmetric net frequency tolerance (EF007454): 5
    Product software ID: +ECXXX||Latest released version##Latest official released version
    Product category: FA||Frequency converter air cooled
    Cross-Plant Configurable Material: iC2-Micro Frequency Converter
    Mains Voltage: 02||200-240 V AC##Voltage range 208-240 V AC - Current rating given at 230V AC
    Integrated breaking resistance (EF007293): FALSE
    Application in industrial area permitted (EF007294): TRUE
    Supporting protocol for EtherNet/IP (EF007521): FALSE
    Number of digital outputs (EF001993): 1
    Frame Designation: MA02C||MA02c
    With PC connection (EF006107): TRUE
    Supporting protocol for SafetyBUS p (EF007527): FALSE
    Product series: +DAMI||iC2-Micro
    Supporting protocol for PROFINET IO (EF007525): FALSE
    Application in domestic- and commercial area permitted (EF007295): TRUE
    Product Catalog: NO_VIEW||NO VIEW
    Supporting protocol for PROFIsafe (EF007526): FALSE
    Product type: 1N||Single-phase##Single phase supply - rectifier input
    EMC Category: F0||C1 category##Drive compliant to class C1
    ECCN EU: Y901||Y901
    Integrated brake chopper: +ACXX||No integrated brake chopper##No brake chopper
    Supporting protocol for Foundation Fieldbus (EF007522): FALSE
    Number of digital inputs (EF001992): 4
    Degree of protection (IP) (EF005474): IP20
    Supporting protocol for INTERBUS-Safety (EF006662): FALSE
    Customization file package ID: +EAXXXXXX||No customization
    Product View (Switch): GLBL||Global (Standard)
    Supporting protocol for DeviceNet Safety (EF007520): FALSE
    Number of analogue outputs (EF001995): 1
    Supporting protocol for BACnet (EF011944): FALSE
    With control element (EF001538): TRUE
    Supporting protocol for PROFINET CBA (EF007524): FALSE
