    Domů / Frekvenční měniče / iC2-Micro / IC2-30FA3N04-09A0E20F4+ACBC

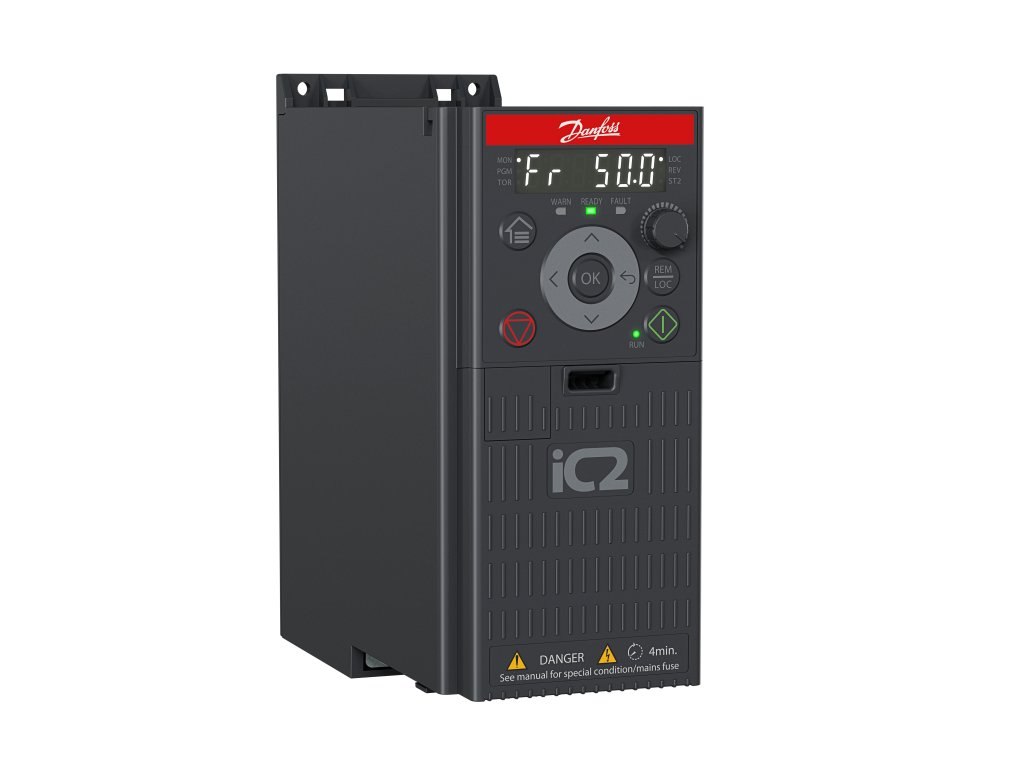

    IC2-30FA3N04-09A0E20F4+ACBC

    Kód: 132L6121
    Neohodnoceno
    ID419829738089 0101
    28 326 Kč 23 410 Kč bez DPH
    Momentálně nedostupné

    Související produkty

    ID421343447053 0101

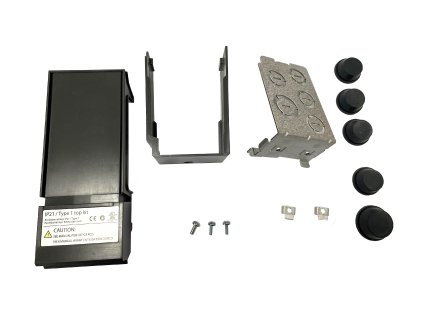

    IP21/Type 1 conversion kit, MA02a
    Momentálně nedostupné
    1 386 Kč bez DPH
    1 677 Kč
    Kód: 132G0191
    ID421343457040 0101
    NEMA 1 conversion kit, MA02a
    Momentálně nedostupné
    813 Kč bez DPH
    984 Kč
    Kód: 132G0198
    ID421343468027 0101
    Decoupling plate mounting kit, MA02/03a
    Momentálně nedostupné
    482 Kč bez DPH
    583 Kč
    Kód: 132G0205
    ID421343471025 0101
    Connector for common DC/brake resistor
    Momentálně nedostupné
    1 356 Kč bez DPH
    1 641 Kč
    Kód: 132G0207
    ID431473495881 0101
    Control Panel 2.0 OP2
    Momentálně nedostupné
    1 476 Kč bez DPH
    1 786 Kč
    Kód: 132G0234
    ID440634441384 0101
    Surface mount kit OA2
    Momentálně nedostupné
    60 Kč bez DPH
    73 Kč
    Kód: 132G0235
    ID440634537380 0101
    Flush mount kit OA2
    Momentálně nedostupné
    361 Kč bez DPH
    437 Kč
    Kód: 132G0236
    ID440634639376 0101
    Control Panel Cable 1.5m OA2
    Momentálně nedostupné
    361 Kč bez DPH
    437 Kč
    Kód: 132G0237
    Zobrazit všechny související produkty Předchozí produkt Další produkt

    Detailní popis produktu

    Popis produktu není dostupný

    Doplňkové parametry

    Kategorie: iC2-Micro
    Hmotnost: 1.6 kg
    EAN: 5714853456475
    Supporting protocol for KNX (EF003055): FALSE
    Calculated Gross Weight [kg]: 1.900
    Number of interfaces PROFINET (EF006932): 0
    Supporting protocol for Modbus (EF003057): TRUE
    Supporting protocol for Data-Highway (EF003058): FALSE
    With optical interface (EF003028): FALSE
    Supporting protocol for CAN (EF003053): FALSE
    Vendor: ERR01||Cannot Determine Vendor
    Supporting protocol for INTERBUS (EF003054): FALSE
    Number of phases output (EF006998): 3
    Typecode Part 2: -000060925
    Height (EF000040): 186
    Number of HW-interfaces RS-422 (EF003022): 0
    Modelcode01: IC2-30FA3N04-09A0E20F4
    Modelcode02: +ACBC
    Number of HW-interfaces RS-485 (EF003023): 1
    Supporting protocol for TCP/IP (EF003050): FALSE
    Width (EF000008): 75
    Number of HW-interfaces industrial Ethernet (EF003020): 0
    Supporting protocol for LON (EF003017): FALSE
    Supporting protocol for DeviceNet (EF003059): FALSE
    Max. output frequency (EF007350): 500
    Supporting protocol for ASI (EF003051): FALSE
    Number of HW-interfaces RS-232 (EF003021): 0
    Supporting protocol for PROFIBUS (EF003052): FALSE
    Calculated Net Weight [kg]: 1.600
    Number of HW-interfaces USB (EF003025): 0
    Salescode part 2: +ACBC||+ACBC
    Delivering plant: ERR01||ERR01
    Typecode Part 1: IC2-30FA3N04-09A0E20F4
    Number of HW-interfaces serial TTY (EF003024): 0
    Supporting protocol for SERCOS (EF006657): FALSE
    Protection Rating: E20||IP20/Open type##IP20/UL Open Type frames are designed for installation in enclosedcabinets and similar set-ups.
    Number of HW-interfaces other (EF003027): 0
    Depth (EF000049): 175
    Relative symmetric net voltage tolerance (EF007453): 10
    ECCN US: 3A999.a||3A999.a
    Salescode part 1: IC2-30FA3N04-09A0E20F4||IC2-30FA3N04-09A0E20F4
    Power consumption (EF000346): 74
    Supporting protocol for AS-Interface Safety at Work (EF007519): FALSE
    Number of HW-interfaces parallel (EF003026): 0
    Number of phases input (EF007117): 3
    Number of analogue inputs (EF001994): 2
    Supporting protocol for SUCONET (EF003060): FALSE
    Product Group: IC2-30||iC2-30
    4-quadrant operation possible (EF006803): TRUE
    Current Rating: -09A0||9.0 A
    Supporting protocol for other bus systems (EF003062): FALSE
    Max. output voltage (EF009560): 480
    Power Rating: 4K0||4.0 kW/5 HP
    Relative symmetric net frequency tolerance (EF007454): 5
    Product software ID: +ECXXX||Latest released version##Latest official released version
    Product category: FA||Frequency converter air cooled
    Cross-Plant Configurable Material: iC2-Micro Frequency Converter
    Mains Voltage: 04||380-480 V AC##Voltage range 380-480 V AC - Current rating given at 400V AC
    Nominal output current I2N (EF009561): 9
    Integrated breaking resistance (EF007293): FALSE
    Application in industrial area permitted (EF007294): TRUE
    Supporting protocol for EtherNet/IP (EF007521): FALSE
    Number of digital outputs (EF001993): 1
    Frame Designation: MA02A||MA02a
    Max. output at quadratic load at rated output voltage (EF007366): 4
    With PC connection (EF006107): TRUE
    Supporting protocol for SafetyBUS p (EF007527): FALSE
    Product series: +DAMI||iC2-Micro
    Supporting protocol for PROFINET IO (EF007525): FALSE
    Application in domestic- and commercial area permitted (EF007295): TRUE
    Product Catalog: NO_VIEW||NO VIEW
    Supporting protocol for PROFIsafe (EF007526): FALSE
    Product type: 3N||Three-phase##Three phase supply - rectifier input
    EMC Category: F4||C4 category##Drive compliant to class C4
    ECCN EU: Y901||Y901
    Integrated brake chopper: +ACBC||Integrated brake chopper##Integrated brake chopper - see Design Guide for specific ratings
    Supporting protocol for Foundation Fieldbus (EF007522): FALSE
    Number of digital inputs (EF001992): 4
    Degree of protection (IP) (EF005474): IP20
    Supporting protocol for INTERBUS-Safety (EF006662): FALSE
    Customization file package ID: +EAXXXXXX||No customization
    Product View (Switch): GLBL||Global (Standard)
    Supporting protocol for DeviceNet Safety (EF007520): FALSE
    Number of analogue outputs (EF001995): 1
    Supporting protocol for BACnet (EF011944): FALSE
    With control element (EF001538): TRUE
    Supporting protocol for PROFINET CBA (EF007524): FALSE
