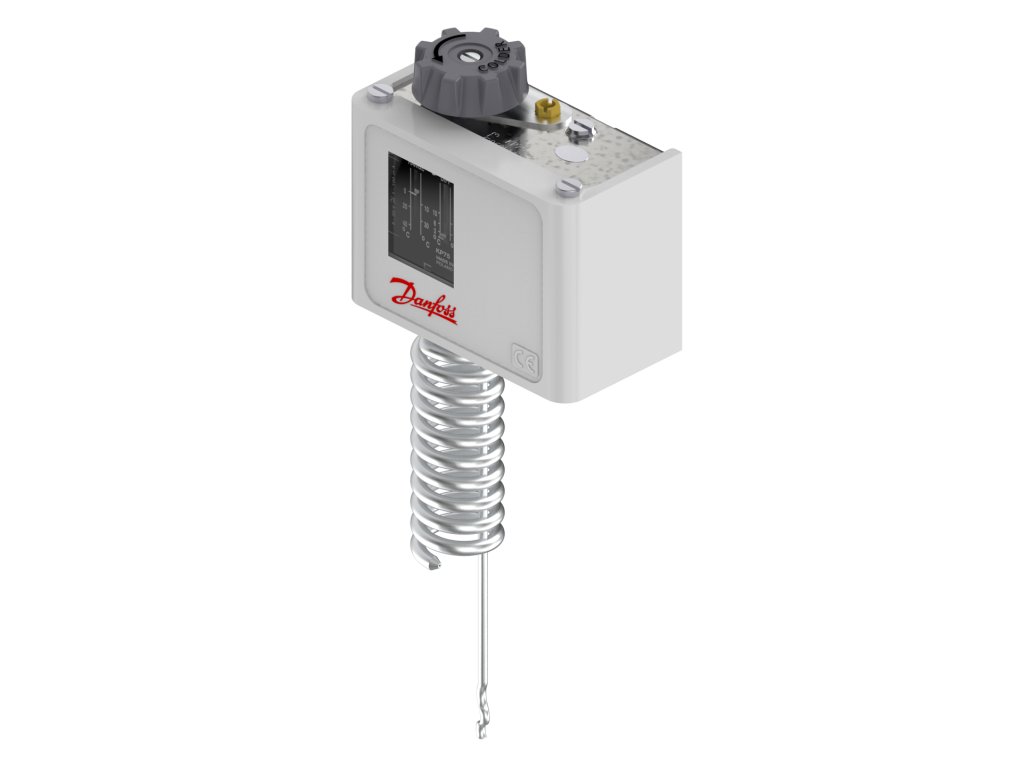

Termostat, KP75
Kód: 060L121266Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | KP |
|---|---|
| Hmotnost: | 0.36 kg |
| EAN: | 5702423159659 |
| Ambient temperature range [°F] [min]: | -40 |
| Diff. @ Min. range setting[°C] [min]: | 4.0 |
| Max. sensor temperature [°F]: | 176.0 |
| Electrical connection size: | 6-14 mm |
| UL mark: | Yes |
| Enclosure rating Nema (~): | 1 |
| Amb. Temp. Note: | 80 °C/176 °F for max 120 min |
| Height (EF000040): | 48 |
| Contact function: | SPDT |
| SCIP dossier no.: | c1a694ec-501f-43db-83d2-8a9a314459e0 |
| Charge type: | Adsorption |
| Diff. @ Min. range setting[°C] [max]: | 10.0 |
| Width (EF000008): | 48 |
| Electrical connection: | Rubber cable gland |
| Temperature range [°F] [min]: | 32 |
| Differential type: | Adjustable |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP30 |
| Ambient temperature range [°C] [min]: | -40 |
| Diff. @ Max. range setting[°C]: | 3.0 |
| Product accessories: | Switches accessories |
| Parts included: | Screws |
| Sensor size (Ø x L) [in]: | 1 x 3 in |
| Depth (EF000049): | 48 |
| Contact rating: | AC15=10 A, 400 V, AC1=16 A, 400 V, AC3=16 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V |
| IFTTT support available (EF011072): | FALSE |
| Compatible with Apple HomeKit (EF014925): | FALSE |
| Compatible with Google Assistant (EF014926): | FALSE |
| Diff. @ Min. range setting [K] [min]: | 4.0 |
| Product description: | Thermostat |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-5 |
| Packing format: | Multi pack |
| Max. sensor temperature [°C]: | 80 |
| Approval: | BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, RINA, RMRS, RoHS China, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2 |
| Diff. @ Max. range setting [K]: | 3.0 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1), Cadmium oxide (CAS no.1306-19-0) |
| Contains batteries: | No |
| CE mark: | Yes |
| EN 60947 wiring properties: | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Sensor size (Ø x L) [mm]: | 25 x 78 mm |
| Ambient temperature range [°C] [max]: | 65 |
| Degree of protection (IP) (EF005474): | IP30 |
| Temperature range [°F] [max]: | 104 |
| UL approval file name: | E31024, MH27572 |
| SCIP dossier product name: | KP KPS KPU Thermostat |
| Temperature range [°C] [min]: | 0 |
| EN 60947 electrical properties: | Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 16A |
| Diff. @ Min. range setting [K] [max]: | 10.0 |
| Sensor type: | Room sensor |
| Compatible with Amazon Alexa (EF014927): | FALSE |
| Temperature range [°C] [max]: | 40 |
| Quantity per packing format: | 32 |
| Ambient temperature range [°F] [max]: | 150 |
| Explosion-proof (EF004663): | FALSE |
-
Pressure switch and thermostat type KP and KPI: Datový list
-
Switches and thermostats - Industrial Refrigeration product group catalogue: Katalog
-
District Heating and Boiler Applications: Brožurka
-
Thermostat type KP: Datový list
-
Danfoss Sensing Solutions for the marine sector: Brožurka
-
Tlakový spínač a termostat KP a KPI: Datový list
-
Thermostat KP 61 – KP 85: Instalační příručka
-
Danfoss solutions for Air Handling Units and Rooftops: Brožurka
-
Thermostat Type KP, Spare parts and accessories: Datový list
-
Thermostat type KP: Datový list
