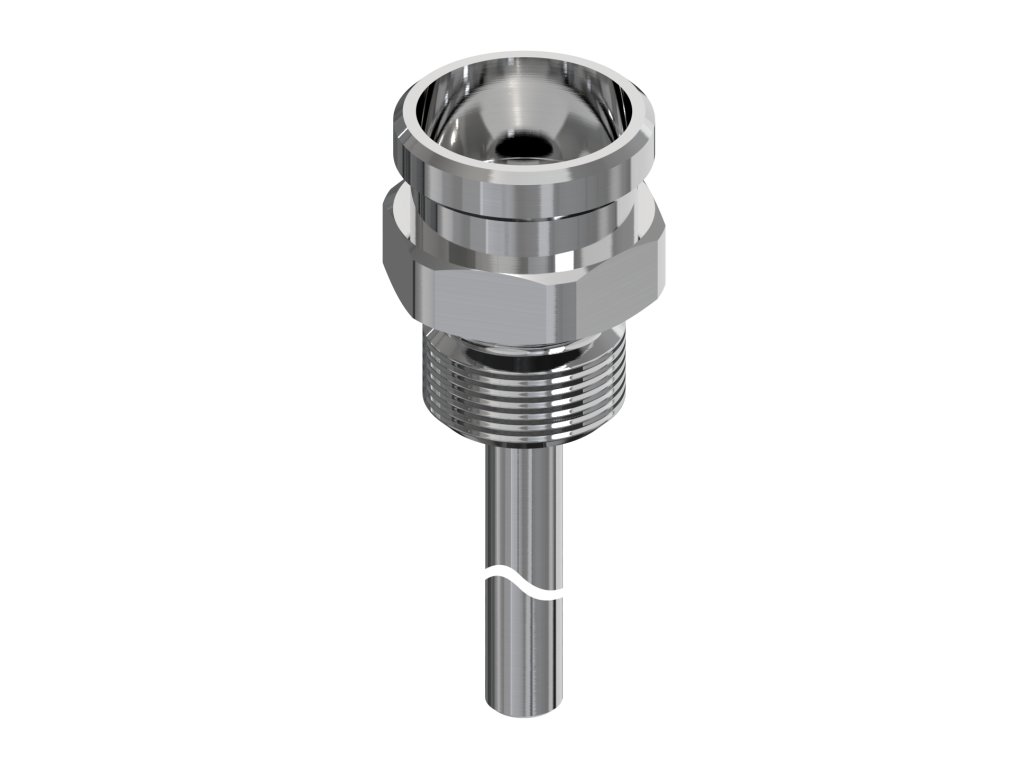

Ochranná jímka senzoru, MBT 120
Kód: 084Z4422Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Příslušenství pro snímače teploty |
|---|---|
| Hmotnost: | 0.08 kg |
| EAN: | 5702423191949 |
| Protection tube diameter [in]: | 0.315 |
| Connection standard: | ISO 228 |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| UL mark: | No |
| In scope of WEEE: | Yes |
| Process connection material: | AISI 316 Ti |
| Approval: | CE |
| Insertion length [in]: | 3.940 |
| Process connection size: | 1/2 |
| Type designation: | MBT 120-010-0100-3 |
| Material quality (EF001257): | Other |
| REACH Candidate List substances: | No |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS exemption clause: | No |
| Insertion type: | Fixed |
| EU RoHS compliance: | Yes |
| Insert length (EF020279): | 100 |
| Temperature range [°F] [min]: | -58 |
| Process connection standard: | ISO 228-1-A |
| Process connection Male/Female: | Male |
| Used for product: | MBT 5250 |
| Insertion length [mm]: | 100 |
| Connection type: | G |
| Protection tube diameter [mm]: | 8.0 |
| Connection material: | AISI 316 Ti |
| Process connection type: | G |
| Temperature range [°F] [max]: | 392 |
| Temperature range [°C] [min]: | -50 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Temperature range [°C] [max]: | 200 |
| Quantity per packing format: | 40 |
| Protection tube material: | AISI 316 TI |
