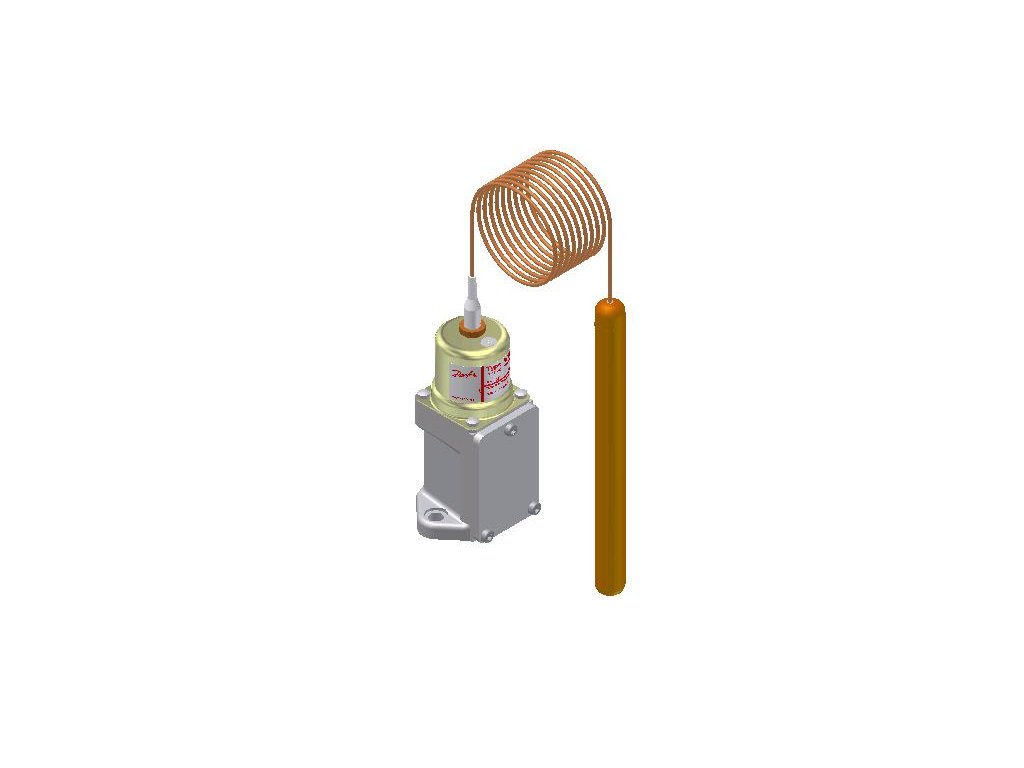

Pilot pro vodní regulační ventil, WVTS, 0 °C - 30 °C
Kód: 016D1005Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Ventily WVTS |
|---|---|
| Hmotnost: | 1.17 kg |
| EAN: | 5702422047063 |
| Cap. tube length fraction [in]: | 196 27/32 in |
| Max. sensor temperature [°F]: | 134.6 |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| Max. sensor temperature [°C]: | 57 |
| SCIP dossier no.: | fc3470cc-5810-44ef-89ac-d393613841da |
| Material quality (EF001257): | Other |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Contains batteries: | No |
| With thermometer (EF002167): | FALSE |
| EU RoHS compliance: | Out of scope |
| With insulation (EF021057): | FALSE |
| Temperature range [°F] [min]: | 32 |
| Serviceable: | Water valve spare parts |
| Surface protection (EF000139): | Other |
| Used for product: | WVTS 100, WVTS 32, WVTS 40, WVTS 50, WVTS 65, WVTS 80 |
| Product accessories: | Generic accessories |
| Parts included: | Control element, Spring housing |
| Temperature range [°F] [max]: | 86 |
| SCIP dossier product name: | WV Valves |
| Temperature range [°C] [min]: | 0 |
| With position indicator (EF022469): | FALSE |
| Parts Program name: | WVTS |
| Temperature range [°C] [max]: | 30 |
| Quantity per packing format: | 8 |
| Capillary tube length [mm]: | 5000 |
-
Water regulating valves type WVTS: Datový list
-
High Runner Filter Drier Data Sheet: Datový list
-
Pressure operated water valve, types WVFX and WVS: Datový list
-
ELIMINATOR® Hermetic filter drier Types DCL and DML: Datový list
-
Thermostatic water valves WVTS: Instalační příručka
