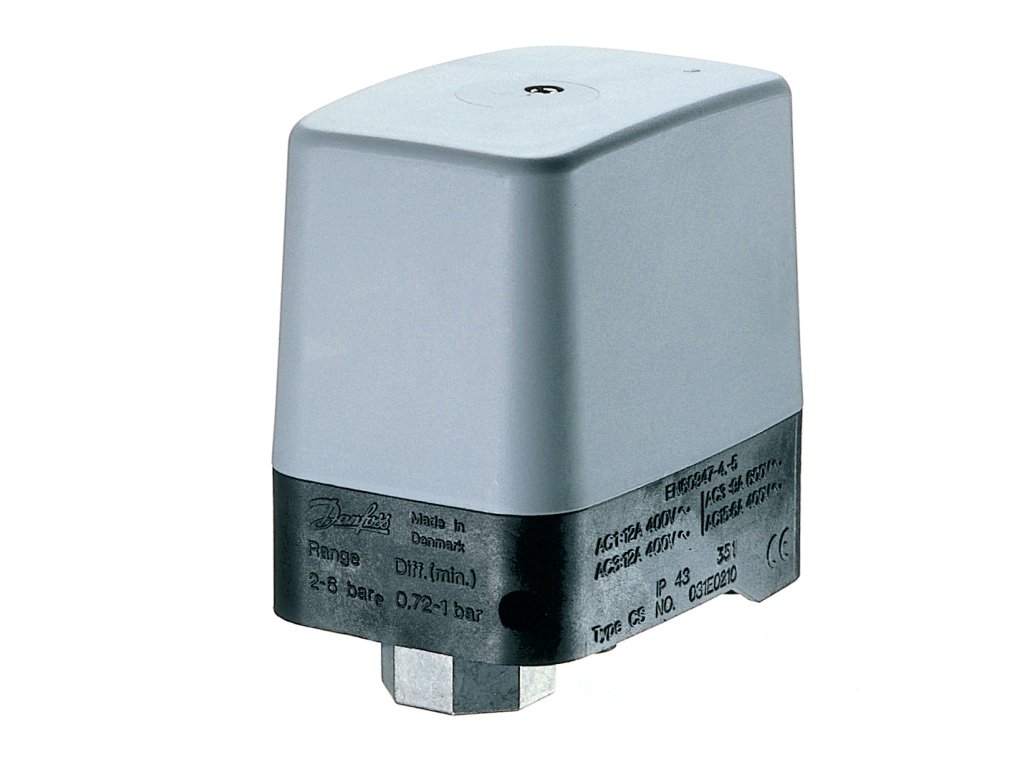

Presostat, CS
Kód: 031E021066Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | CS |
|---|---|
| Hmotnost: | 0.44 kg |
| EAN: | 5702423208852 |
| Ambient temperature range [°F] [min]: | -4 |
| Electrical connection size: | Pg 16 |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Height (EF000040): | 69 |
| Contact function: | TPST |
| SCIP dossier no.: | e65e8dcc-5aa5-41db-aed7-9aec2d1ff7f0 |
| Pressure connection size: | 1/2 |
| Max. test pressure [psig]: | 145.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 128 |
| Identical product: | 031E021166 |
| Electrical connection: | Screwed cable entry |
| Max. operating pressure (EF020449): | 6.0 |
| Diff.@Min. range setting [bar] [max]: | 1.00 |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP43 |
| Ambient temperature range [°C] [min]: | -20 |
| Diff.@Min. range setting [bar] [min]: | 0.72 |
| Regulation range [psig] Pe [min]: | 29.00 |
| Diff.@Max. range setting [bar] [min]: | 1.00 |
| Regulation range [bar] Pe [max]: | 6.00 |
| Max. test pressure [bar] Pe: | 10.0 |
| Product accessories: | Switches accessories |
| Regulation range [bar] Pe [min]: | 2.00 |
| Pressure Male/Female: | Female |
| Depth (EF000049): | 138 |
| Contact rating: | AC3=12 A, 220 - 415 V, AC3=9 A, 600 V, DC13=2 A, 220 V, DC14=2 A, 220 V |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/2 inch |
| Product description: | Pressure Switch |
| China RoHS compliance: | Out of scope |
| Electrical spec. standard: | EN 60947-4/-5 |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | CE, EAC, LLC CDC EURO-TYSK, LVD, RoHS, TYSK |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 6.0 |
| Pressure sensing element: | Diaphragm |
| Diff.@Max. range setting [bar] [max]: | 2.00 |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP) (EF005474): | IP43 |
| SCIP dossier product name: | CS Pressure Switch |
| Regulation range [psig] Pe [max]: | 87.00 |
| Quantity per packing format: | 30 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 87 |
| Explosion-proof (EF004663): | FALSE |
-
