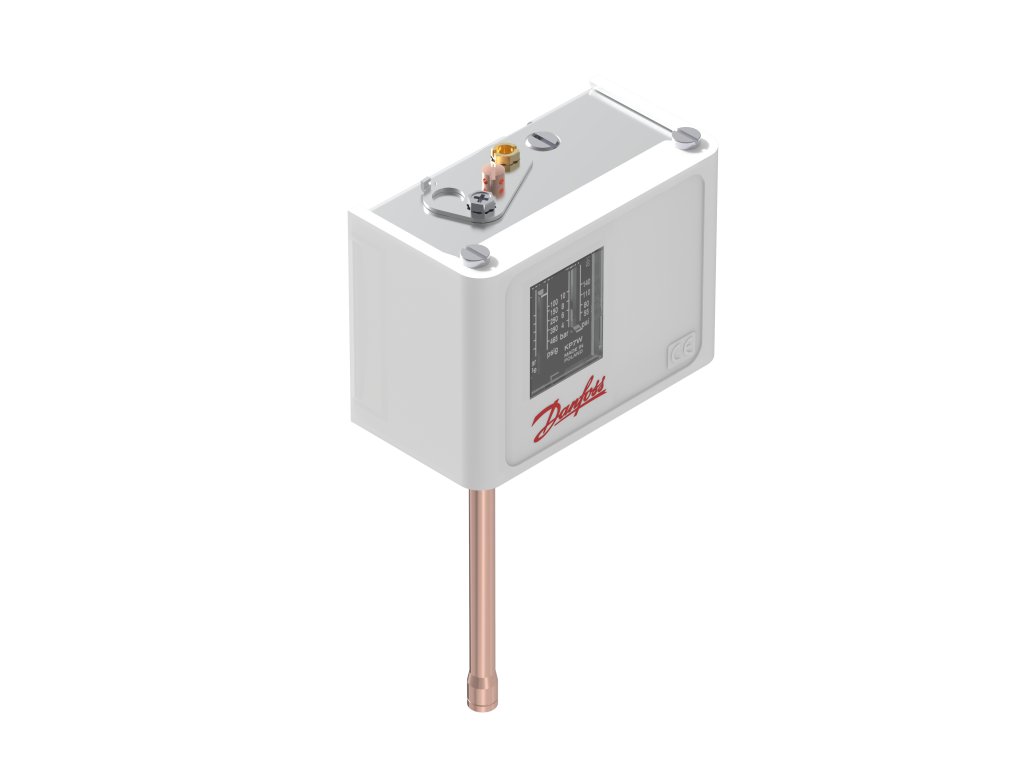

Presostat, KP7W
Kód: 060-133366Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | KP / KPI |
|---|---|
| Hmotnost: | 0.37 kg |
| EAN: | 5702428832588 |
| Burst pressure [bar]: | 140.0 |
| Ambient temperature range [°F] [min]: | -13 |
| Differential [psi] [max]: | 145.00 |
| Electrical connection size: | 6-14 mm |
| UL mark: | Yes |
| Enclosure rating Nema (~): | 1 |
| Amb. Temp. Note: | 80 °C/176 °F for max 120 min |
| Height (EF000040): | 192 |
| Contact function: | SPDT |
| SCIP dossier no.: | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| Pressure connection size: | 6 mm |
| Max. test pressure [psig]: | 510.0 |
| Pressure connection standard: | EN 1254-1 |
| Width (EF000008): | 48 |
| Equipment: | Special connector |
| Electrical connection: | Rubber cable gland |
| Max. operating pressure (EF020449): | 35.0 |
| Serviceable: | No |
| Pressure connection notes: | Soft and 80mm long |
| Reset function: | Auto |
| Enclosure rating IP: | IP30 |
| Ambient temperature range [°C] [min]: | -25 |
| PED category: | IV |
| Regulation range [psig] Pe [min]: | 116.00 |
| Regulation range [bar] Pe [max]: | 32.00 |
| Max. test pressure [bar] Pe: | 35.0 |
| Product accessories: | Switches accessories |
| Regulation range [bar] Pe [min]: | 8.00 |
| Pressure Male/Female: | Female |
| UL approved refrigerants: | R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B |
| Refrigerants: | R113, R1233zd(E), R1234yf, R1234yz, R1234ze(E), R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B |
| Differential [psi] [min]: | 58.00 |
| Depth (EF000049): | 139 |
| Contact rating: | AC15=10 A, 400 V, AC1=16 A, 400 V, AC3=16 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Pressure connection type: | Solder, ODF |
| Differential [bar] [max]: | 10.00 |
| Thread size (EF022694): | 6 mm |
| Differential [bar] [min]: | 4.00 |
| Fluid Group: | 1 |
| Oil free refrigerants: | R134a, R513A, R515B |
| Product description: | Pressure Switch |
| China RoHS compliance: | Yes |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PED, RINA, RMRS, RoHS China, c UL us UL873, CS C22.2 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1), Cadmium oxide (CAS no.1306-19-0) |
| Contains batteries: | No |
| CE mark: | Yes |
| EN 60947 wiring properties: | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 35.0 |
| Lubricants compatibility: | Oilfree applications |
| Pressure sensing element: | Bellows |
| Ambient temperature range [°C] [max]: | 65 |
| Degree of protection (IP) (EF005474): | IP30 |
| UL approval file name: | E31024 |
| SCIP dossier product name: | KP KPI |
| Application note: | Not applicable for liquid line |
| EN 60947 electrical properties: | Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 16A |
| Regulation range [psig] Pe [max]: | 464.00 |
| Quantity per packing format: | 32 |
| Ambient temperature range [°F] [max]: | 149 |
| Max. Working Pressure [psig]: | 510 |
| Explosion-proof (EF004663): | FALSE |
-
