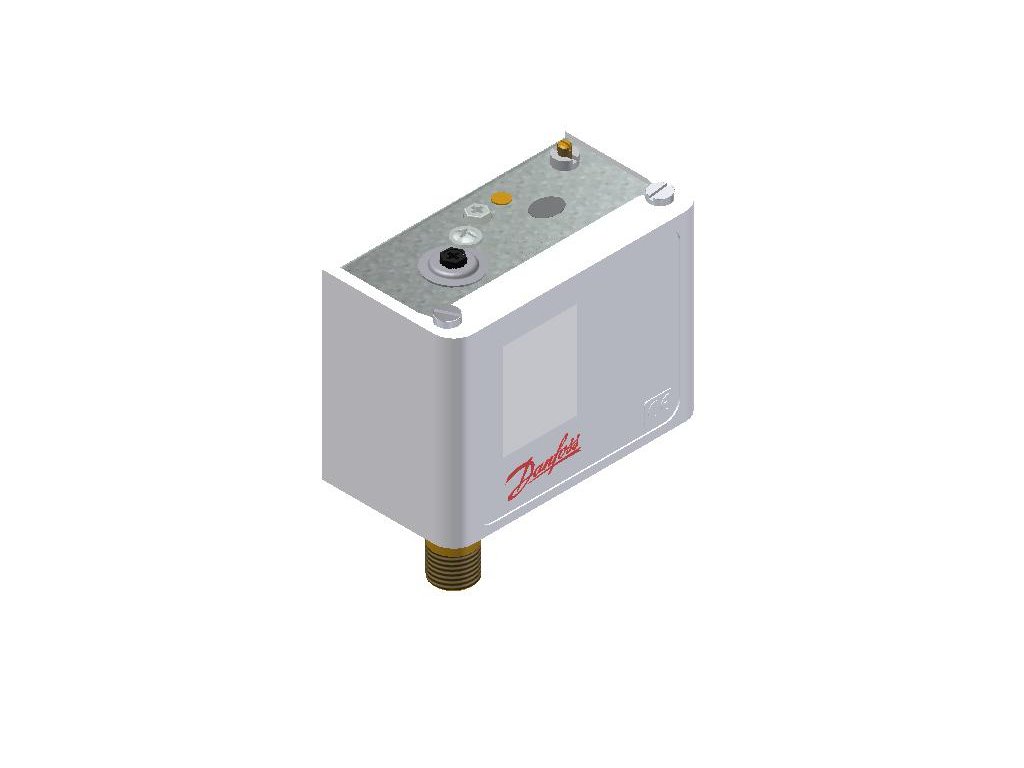

Presostat, KPI36
Kód: 060-118966Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | KP / KPI |
|---|---|
| Hmotnost: | 0.31 kg |
| EAN: | 5702423146703 |
| Ambient temperature range [°F] [min]: | -40 |
| Differential [psi] [max]: | 23.00 |
| Electrical connection size: | 6-14 mm |
| UL mark: | Yes |
| Enclosure rating Nema (~): | 1 |
| Amb. Temp. Note: | 80 °C/176 °F for max 120 min |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Height (EF000040): | 129 |
| Contact function: | SPDT |
| SCIP dossier no.: | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 261.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 48 |
| Identical product: | 060-119666 |
| Electrical connection: | Rubber cable gland |
| Max. operating pressure (EF020449): | 18.0 |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP30 |
| Ambient temperature range [°C] [min]: | -40 |
| Regulation range [psig] Pe [min]: | 58.00 |
| Regulation range [bar] Pe [max]: | 12.00 |
| Max. test pressure [bar] Pe: | 18.0 |
| Product accessories: | Switches accessories |
| Regulation range [bar] Pe [min]: | 4.00 |
| Pressure Male/Female: | Male |
| Other RoHS documentation: | Saudi Arabia RoHS |
| Differential [psi] [min]: | 7.00 |
| Depth (EF000049): | 92 |
| Contact rating: | AC15=4 A, 440 V, AC1=10 A, 440 V, AC3=6 A, 440 V, DC13=12 W, 220 V, LR=36 A, 240 V, LR=48 A, 120 V |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Pressure connection type: | G |
| Differential [bar] [max]: | 1.60 |
| Thread size (EF022694): | 1/4 inch |
| Differential [bar] [min]: | 0.50 |
| Product description: | Pressure Switch |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | CCC, CE, CMIM, EAC, LLC CDC EURO-TYSK, LVD, RINA, RoHS China, c UL us UL873, CS C22.2 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1), Cadmium oxide (CAS no.1306-19-0) |
| Contains batteries: | No |
| CE mark: | Yes |
| EN 60947 wiring properties: | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 18.0 |
| Pressure sensing element: | Bellows |
| Ambient temperature range [°C] [max]: | 65 |
| Degree of protection (IP) (EF005474): | IP30 |
| UL approval file name: | E31024 |
| SCIP dossier product name: | KP KPI |
| EN 60947 electrical properties: | Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 16A |
| EPD available: | Yes |
| Regulation range [psig] Pe [max]: | 174.00 |
| Quantity per packing format: | 36 |
| Ambient temperature range [°F] [max]: | 149 |
| Max. Working Pressure [psig]: | 261 |
| Explosion-proof (EF004663): | FALSE |
-
Pressure switch and thermostat type KP and KPI: Datový list
-
District Heating and Boiler Applications: Brožurka
-
EPD for Pressure Switch, KPI 35, 36, 38 : Informace o životním prostředí produktu
-
Tlakový spínač a termostat KP a KPI: Datový list
