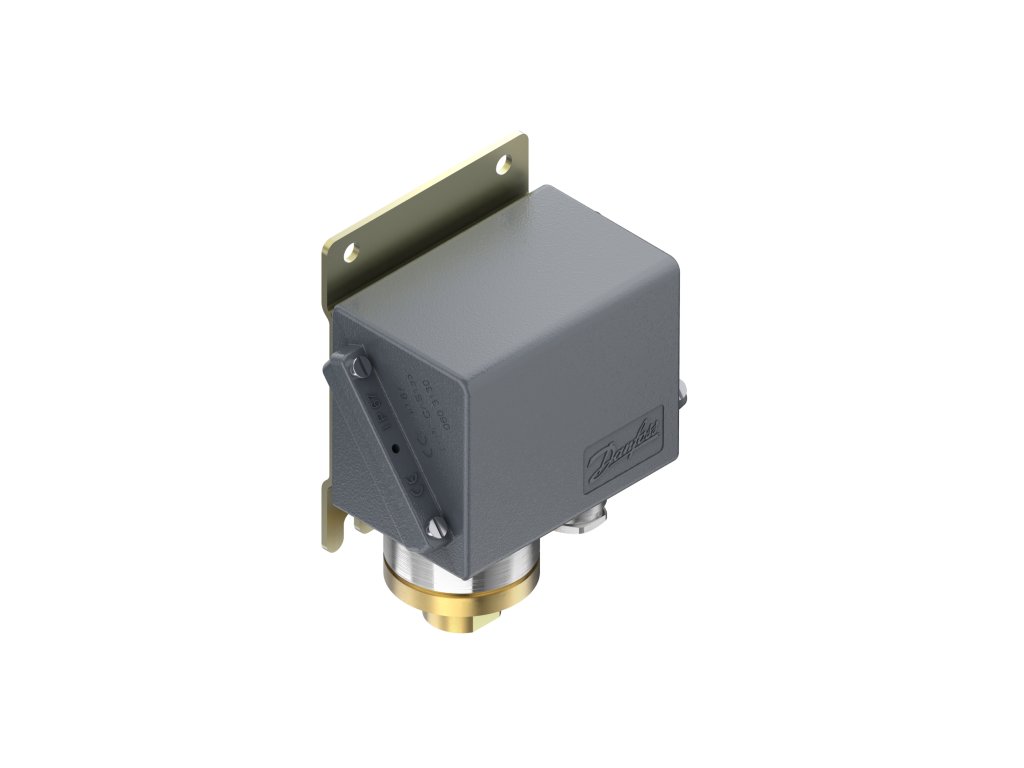

Presostat, KPS43
Kód: 060-411366Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | KPS |
|---|---|
| Hmotnost: | 1.06 kg |
| EAN: | 5702423147120 |
| Burst pressure [bar]: | 240.0 |
| Differential [psi]: | 29.00 |
| Electrical conn. comments: | Metal cable gland |
| Ambient temperature range [°F] [min]: | -13 |
| Electrical connection size: | Pg 13.5 |
| UL mark: | Yes |
| Amb. Temp. Note: | 80 °C/176 °F for max 120 min |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Contact function: | SPDT gold |
| SCIP dossier no.: | d1127e97-408e-40d0-9aba-98480f7dad9c |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 2611.0 |
| Pressure connection standard: | ISO 228-1 |
| Electrical connection: | Screwed cable entry |
| Max. operating pressure (EF020449): | 120.0 |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -25 |
| Factory setting [bar]: | 8.00 |
| Max. test pressure [bar] Pe: | 180.0 |
| Product accessories: | Switches accessories |
| Pressure Male/Female: | Female |
| Contact rating: | AC15=4 A, 440 V, AC1=10 A, 440 V, AC3=6 A, 440 V, DC13=12 W, 220 V, LR max. 50 A, for gold 1…30 mA, 5...30 V |
| Differential [bar]: | 2.00 |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/4 inch |
| Product description: | Pressure Switch |
| China RoHS compliance: | Yes |
| Packing format: | Industrial pack |
| Factory setting [MPa]: | 0.800 |
| Approval: | ABS, BV, CCC, CCS, CE, CMIM, DNV, EAC, GL, KRS, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK, UL |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contains batteries: | No |
| CE mark: | Yes |
| EN 60947 wiring properties: | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 120.0 |
| Pressure sensing element: | Diaphragm |
| Alarm Signal: | Rising |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP) (EF005474): | IP67 |
| UL approval file name: | E73170 |
| SCIP dossier product name: | KPS Pressure Switch |
| EN 60947 electrical properties: | Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 16A |
| Factory setting [psig]: | 116.0 |
| Quantity per packing format: | 12 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 1740 |
| Explosion-proof (EF004663): | FALSE |
-
