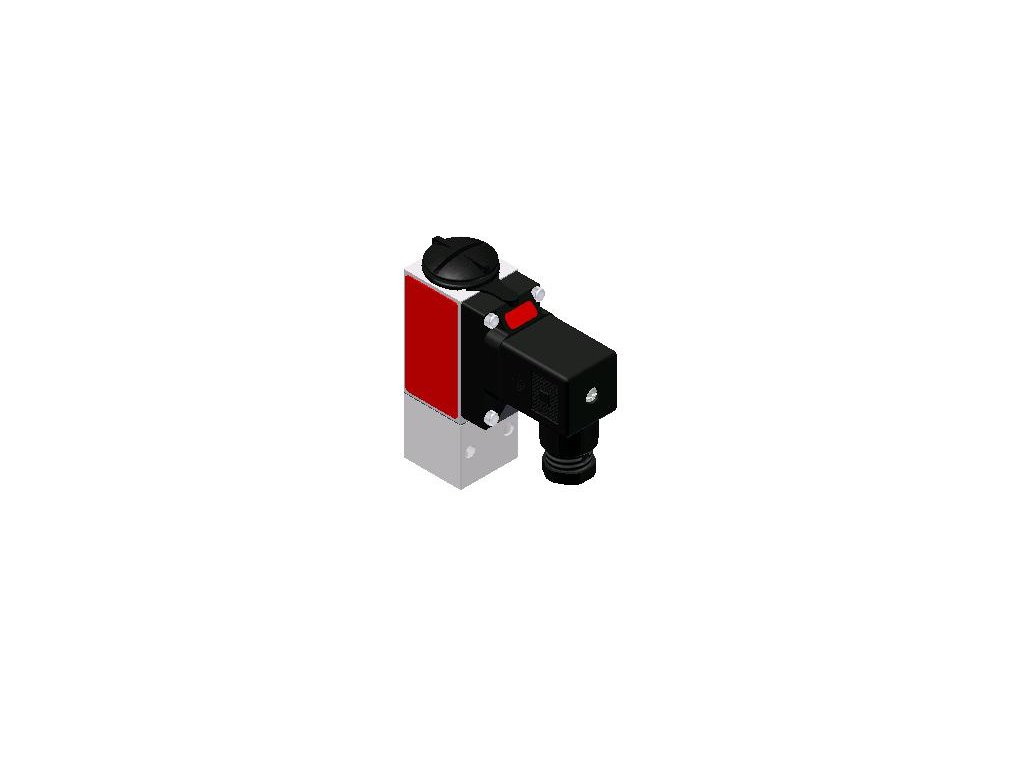

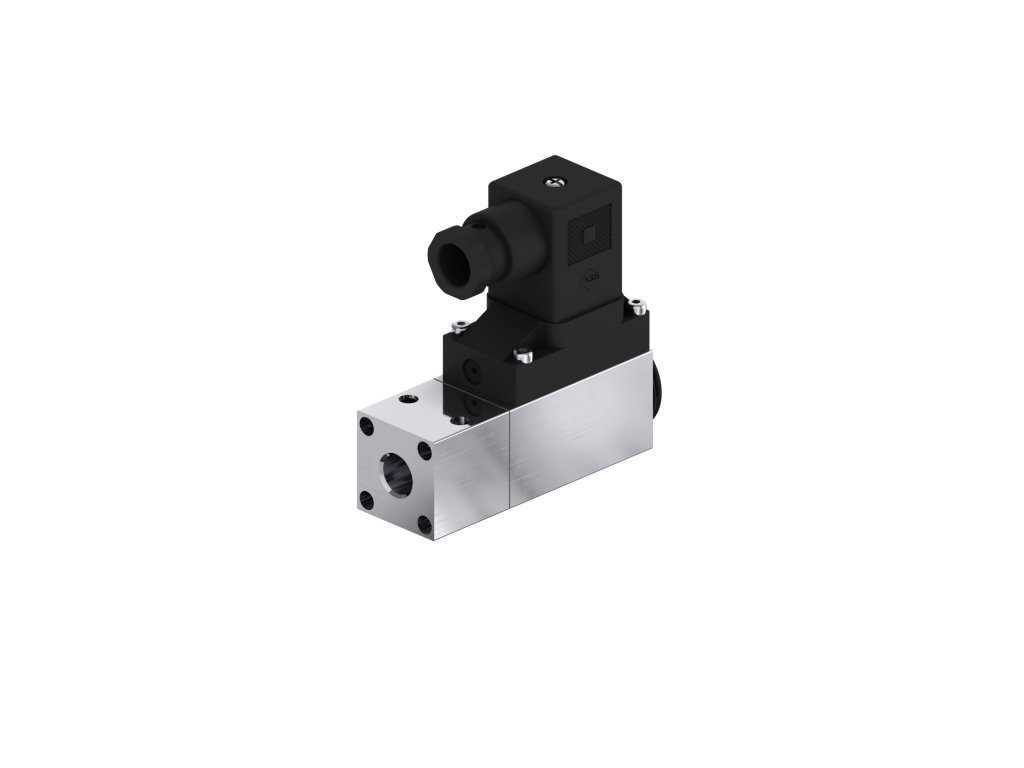

Presostat, MBC 5000
Kód: 061B510666Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | MBC 5000 / MBC 5100 |
|---|---|
| Hmotnost: | 0.24 kg |
| EAN: | 5702428913638 |
| Burst pressure [bar]: | 1200.0 |
| Ambient temperature range [°F] [min]: | -40 |
| Electrical connection size: | Pg 11 |
| Specification key: | 5651-1CB04 |
| Height (EF000040): | 97 |
| Contact function: | SPDT |
| SCIP dossier no.: | 69958bd3-3b22-42dc-aa8a-888e92c5e7e8 |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 8702.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 97 |
| Diff.@Min. range setting [bar]: | 20.00 |
| Electrical connection: | DIN-plug |
| Max. operating pressure (EF020449): | 600.0 |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP65 |
| Ambient temperature range [°C] [min]: | -40 |
| Factory setting [bar]: | 220.00 |
| Regulation range [bar] Pe [max]: | 400.00 |
| Max. test pressure [bar] Pe: | 600.0 |
| Product accessories: | Switches accessories |
| Regulation range [bar] Pe [min]: | 40.00 |
| Pressure Male/Female: | Female |
| Depth (EF000049): | 97 |
| Contact rating: | AC15=0.5 A, 250 V, DC13=12 W, 125 V |
| Pressure connection type: | G |
| Product description: | Pressure Switch |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-5 |
| Packing format: | Multi pack |
| Regulation range [MPa] Pe [min]: | 4.00 |
| Factory setting [MPa]: | 22.000 |
| Approval: | CCC, CE, EAC, LLC CDC EURO-TYSK, LVD, RoHS China |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 600.0 |
| Pressure sensing element: | Piston |
| Alarm Signal: | Rising |
| Ambient temperature range [°C] [max]: | 85 |
| Degree of protection (IP) (EF005474): | IP65 |
| SCIP dossier product name: | MBC 5100 5000 Pressure Switch |
| Quantity per packing format: | 32 |
| Ambient temperature range [°F] [max]: | 185 |
| Regulation range [MPa] Pe [max]: | 40.00 |
| Max. Working Pressure [psig]: | 8700 |
| Explosion-proof (EF004663): | FALSE |
| Diff.@Max. range setting [bar]: | 50.00 |
-
