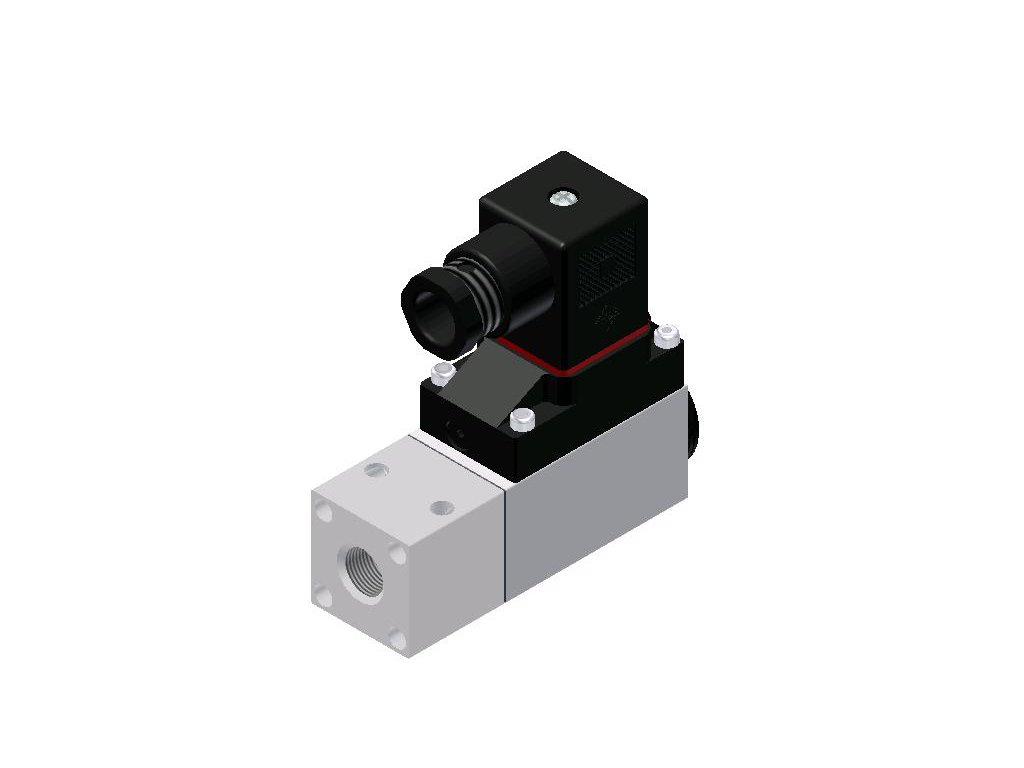

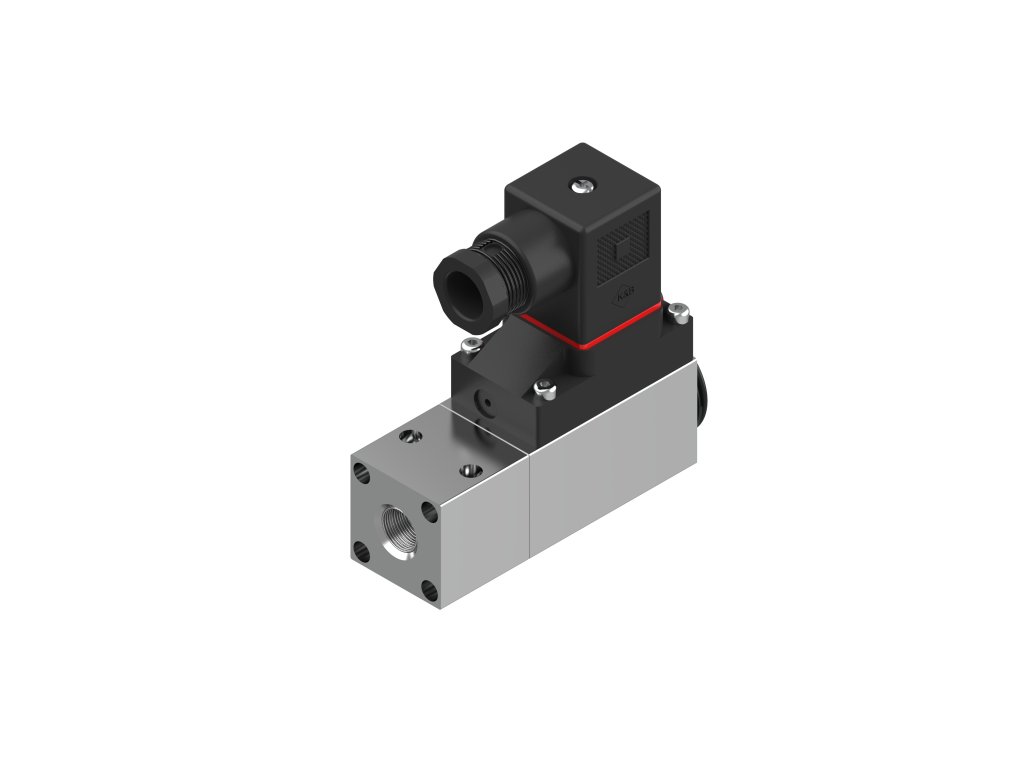

Presostat, MBC 5000
Kód: 061B503266Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | MBC 5000 / MBC 5100 |
|---|---|
| Hmotnost: | 0.21 kg |
| EAN: | 5702428833585 |
| Burst pressure [bar]: | 1200.0 |
| Ambient temperature range [°F] [min]: | -40 |
| Electrical connection size: | Pg 11 |
| Specification key: | 5251-1CB04 |
| Height (EF000040): | 48 |
| Contact function: | SPDT |
| SCIP dossier no.: | 69958bd3-3b22-42dc-aa8a-888e92c5e7e8 |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 4351.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 48 |
| Diff.@Min. range setting [bar]: | 15.00 |
| Electrical connection: | DIN-plug |
| Max. operating pressure (EF020449): | 300.0 |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP65 |
| Ambient temperature range [°C] [min]: | -40 |
| Regulation range [bar] Pe [max]: | 160.00 |
| Max. test pressure [bar] Pe: | 300.0 |
| Product accessories: | Switches accessories |
| Regulation range [bar] Pe [min]: | 16.00 |
| Pressure Male/Female: | Female |
| Depth (EF000049): | 48 |
| Contact rating: | 120/250Vac, 1,16 A Pilot duty, 120/250Vac, 6A resistive, 120/250Vac,2,9FLA,17,4LRA |
| Pressure connection type: | G |
| Product description: | Pressure Switch |
| China RoHS compliance: | Yes |
| Packing format: | Multi pack |
| Regulation range [MPa] Pe [min]: | 1.60 |
| Approval: | CCC, CE, EAC, LLC CDC EURO-TYSK, LVD, RoHS, RoHS China |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 300.0 |
| Pressure sensing element: | Piston |
| Ambient temperature range [°C] [max]: | 60 |
| Degree of protection (IP) (EF005474): | IP65 |
| UL approval file name: | E31024 |
| SCIP dossier product name: | MBC 5100 5000 Pressure Switch |
| Quantity per packing format: | 32 |
| Ambient temperature range [°F] [max]: | 140 |
| Regulation range [MPa] Pe [max]: | 16.00 |
| Max. Working Pressure [psig]: | 4350 |
| Explosion-proof (EF004663): | FALSE |
| Diff.@Max. range setting [bar]: | 30.00 |
-
