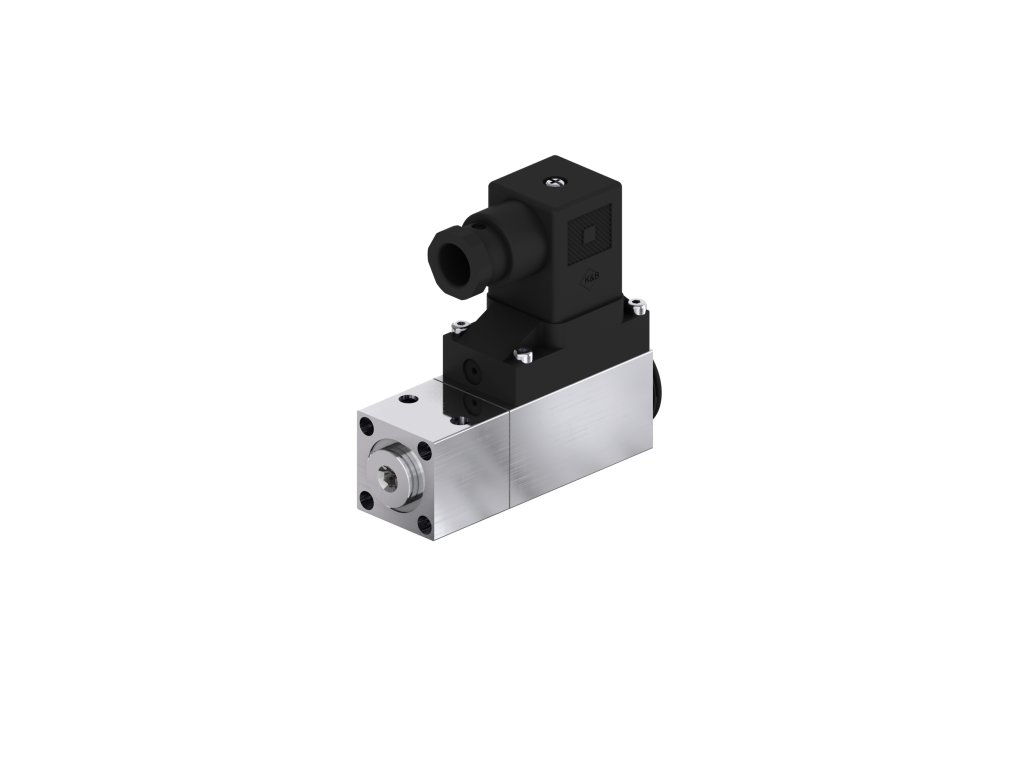

Presostat, MBC 5100
Kód: 061B100466Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | MBC 5000 / MBC 5100 |
|---|---|
| Hmotnost: | 0.26 kg |
| EAN: | 5702423218639 |
| Burst pressure [bar]: | 300.0 |
| Ambient temperature range [°F] [min]: | 14 |
| Electrical connection size: | Pg 11 |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Specification key: | 2431-1DB04 |
| Height (EF000040): | 139 |
| Contact function: | SPDT |
| SCIP dossier no.: | 69958bd3-3b22-42dc-aa8a-888e92c5e7e8 |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 2176.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 48 |
| Diff.@Min. range setting [bar]: | 1.00 |
| Electrical connection: | DIN-plug |
| Max. operating pressure (EF020449): | 150.0 |
| Serviceable: | No |
| Pressure connection notes: | With flange |
| Enclosure rating IP: | IP65 |
| Ambient temperature range [°C] [min]: | -10 |
| Regulation range [bar] Pe [max]: | 10.00 |
| Max. test pressure [bar] Pe: | 150.0 |
| Product accessories: | Switches accessories |
| Regulation range [bar] Pe [min]: | 1.00 |
| Pressure Male/Female: | Female |
| Other RoHS documentation: | Saudi Arabia RoHS |
| Depth (EF000049): | 97 |
| Contact rating: | AC15=0.5 A, 250 V, DC13=12 W, 125 V |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/4 inch |
| Product description: | Pressure Switch |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-5 |
| Packing format: | Multi pack |
| Regulation range [MPa] Pe [min]: | 0.10 |
| Approval: | ABS, BV, CCC, CCS, CE, CMIM, DNV, EAC, GL, KRS, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 150.0 |
| Pressure sensing element: | Diaphragm |
| Ambient temperature range [°C] [max]: | 85 |
| Degree of protection (IP) (EF005474): | IP65 |
| SCIP dossier product name: | MBC 5100 5000 Pressure Switch |
| Quantity per packing format: | 32 |
| Ambient temperature range [°F] [max]: | 185 |
| Regulation range [MPa] Pe [max]: | 1.00 |
| Max. Working Pressure [psig]: | 2175 |
| Explosion-proof (EF004663): | FALSE |
| Diff.@Max. range setting [bar]: | 2.50 |
-
Heavy duty pressure switch, type MBC 5000 and MBC 5100: Instalační příručka
-
Pressure switch type MBC 5000 and MBC 5100: Datový list
