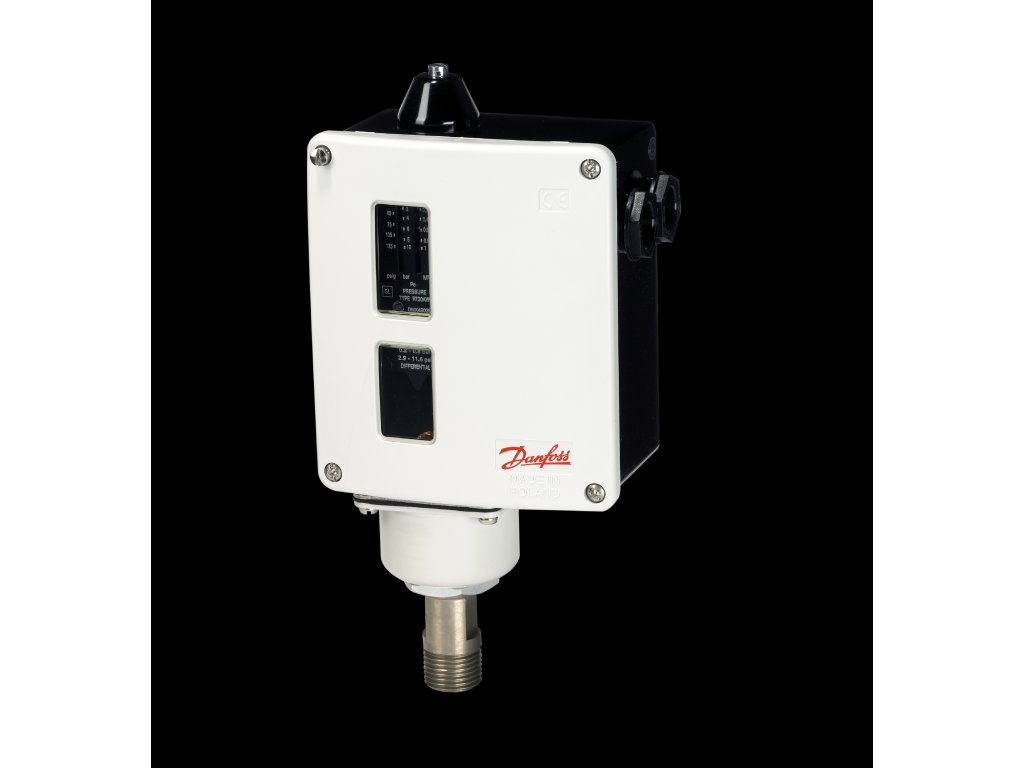

Presostat, RT112
Kód: 017-519366Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | RT |
|---|---|
| Hmotnost: | 0.87 kg |
| EAN: | 5702423120536 |
| Ambient temperature range [°F] [min]: | -58 |
| Differential [psi] [max]: | 2.30 |
| Electrical connection size: | 2xPg 13.5 |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Height (EF000040): | 276 |
| Contact function: | SPDT |
| SCIP dossier no.: | f62fe422-beda-433a-a602-740419c82c06 |
| Pressure connection size: | 3/8 |
| Max. test pressure [psig]: | 116.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 76 |
| Electrical connection: | Screwed cable entry |
| Max. operating pressure (EF020449): | 7.0 |
| Serviceable: | Contact systems |
| Reset function: | Auto |
| Enclosure rating IP: | IP66 |
| Ambient temperature range [°C] [min]: | -50 |
| Regulation range [psig] Pe [min]: | 1.50 |
| Regulation range [bar] Pe [max]: | 1.10 |
| Max. test pressure [bar] Pe: | 8.0 |
| Product accessories: | Switches accessories |
| Regulation range [bar] Pe [min]: | 0.10 |
| Pressure Male/Female: | Male |
| Differential [psi] [min]: | 1.00 |
| Depth (EF000049): | 128 |
| Contact rating: | AC15=3 A, 400 V, AC1=10 A, 400 V, AC3=4 A, 400 V, DC13=12 W, 220 V, LR=28 A, 400 V |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Pressure connection type: | G |
| Differential [bar] [max]: | 0.16 |
| Thread size (EF022694): | 3/8 inch |
| Differential [bar] [min]: | 0.07 |
| Product description: | Pressure Switch |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-4/-5 |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | BV, CCC, CE, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contains batteries: | No |
| CE mark: | Yes |
| EN 60947 wiring properties: | Flex, ferrules: 0.2-1.5 mm2, Flex, no ferrules: 0.2-2.5 mm2, Solid/stranded: 0.2-2.5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 7.0 |
| Pressure sensing element: | Bellows |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP) (EF005474): | IP66 |
| SCIP dossier product name: | RT Presso_Diff.Presso |
| EN 60947 electrical properties: | Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 10A |
| Regulation range [psig] Pe [max]: | 16.00 |
| Quantity per packing format: | 15 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 100 |
| Explosion-proof (EF004663): | FALSE |
-
Pressure switch Type RT, Spare parts and accessories: Datový list
-
Pressure switch, types RT 5, RT 110, RT 112, RT 116, RT 117, RT 121, RT 200: Instalační příručka
-
Pressure switch Type RT: Datový list
-
EPD for Pressure switch, RT6AES: Informace o životním prostředí produktu
