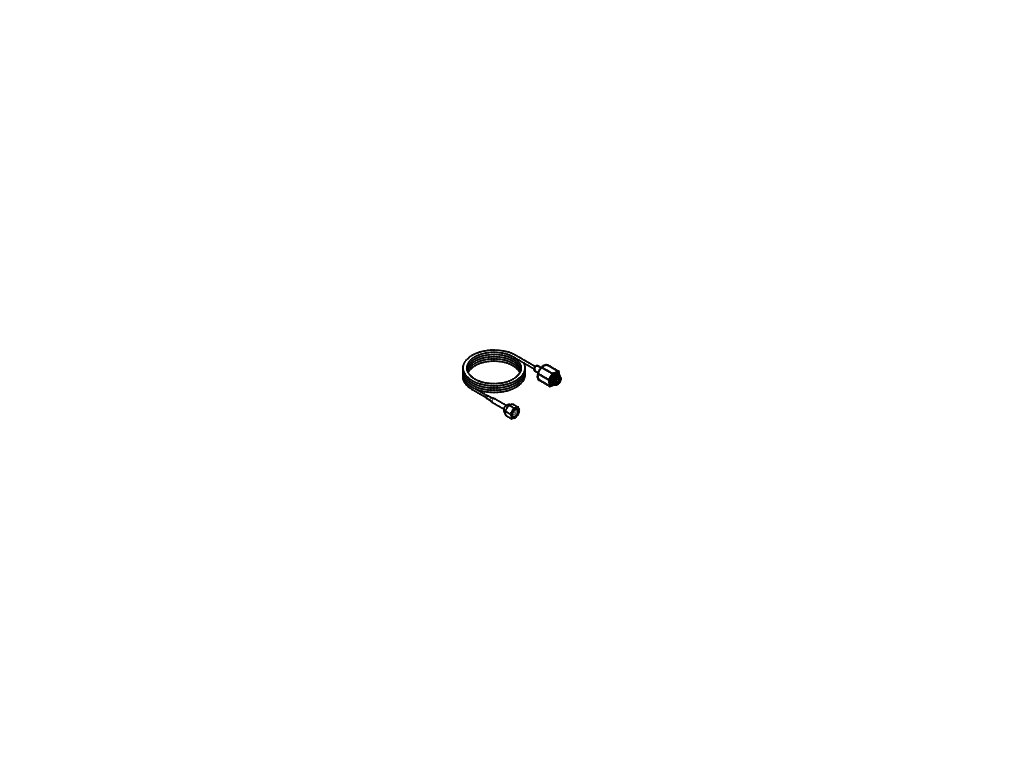

Příslušenství spínačů, Capillary tube
Kód: 060-008266Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Příslušenství pro spínače tlaku |
|---|---|
| Hmotnost: | 0.04 kg |
| EAN: | 5702428365215 |
| Pressure outlet conn. standard: | ISO 228-1 |
| Used for product comments: | For R717 |
| Type of accessory/spare part (EF000215): | Other |
| China RoHS exemption clause: | No |
| Pressure outlet conn. type: | G |
| China RoHS compliance: | Yes |
| Packing format: | Multi pack |
| Type designation: | Capillary tube |
| REACH Candidate List substances: | No |
| Contains batteries: | No |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Connection notes: | 25 mm tube "tail", Bi flow |
| Spare part (EF013237): | TRUE |
| Pressure outlet conn. size[in]: | 3/8 |
| Capillary tube material: | Steel |
| Capillary tube length [in]: | 39.0 |
| Pressure inlet conn. size [mm]: | 10 x 0.75 |
| Pressure inlet Female/Male: | Internal |
| Used for product: | CAS, KPS, MBC, RT |
| Accessory (EF013236): | TRUE |
| Parts included: | 1x washer Al. |
| Quantity per packing format: | 40 |
| Pressure inlet conn. type: | M |
| Capillary tube length [mm]: | 1000 |
