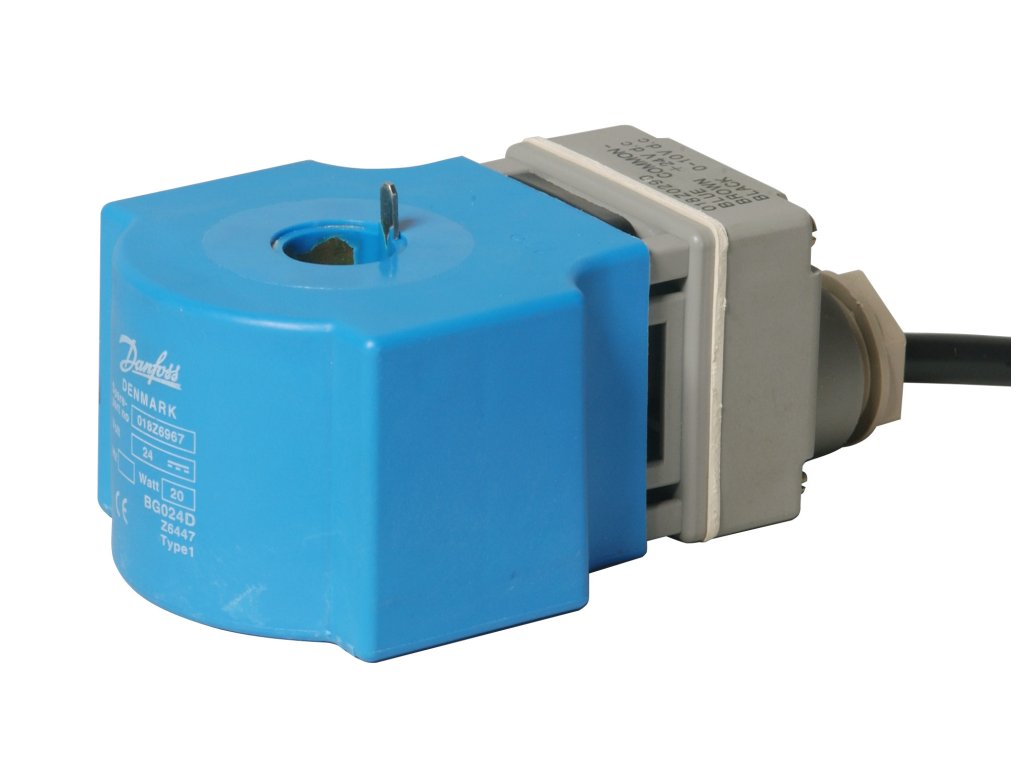

Cívka solenoidu, BL024D, Kabel, null: 24, Multi balení
Kód: 018Z0291Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Cívky pro ventily |
|---|---|
| Hmotnost: | 0.76 kg |
| EAN: | 5702423030132 |
| PFAS content [Yes/No]: | No |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 13.5 mm |
| Cable length [m]: | 2.000 |
| China RoHS exemption clause: | No |
| Coil connection: | Cable |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Enclosure rating Nema (~): | 4 |
| Type designation: | BL024D |
| REACH Candidate List substances: | No |
| Coil fastening: | Nut and snap |
| Rel. Humidity [% RH] [max]: | 100 |
| Contains batteries: | No |
| Rel. Humidity [% RH] [min]: | 0 |
| Division: | 01 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Electrical connection: | Cable |
| Spare part (EF013237): | TRUE |
| Serviceable: | No |
| Enclosure rating IP: | IP65 |
| Ambient temperature range [°C] [min]: | -40 |
| Cable length [in]: | 78.74 |
| Ambient temperature range [°C] [max]: | 50 |
| Power consumption [W] DC: | 23.0 |
| Accessory (EF013236): | TRUE |
| Product accessories: | Solenoid coil accessories |
| Parts Program name: | EV260B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Supply voltage [V] DC: | 24.00 |
| Quantity per packing format: | 12 |
| Ambient temperature range [°F] [max]: | 122 |
