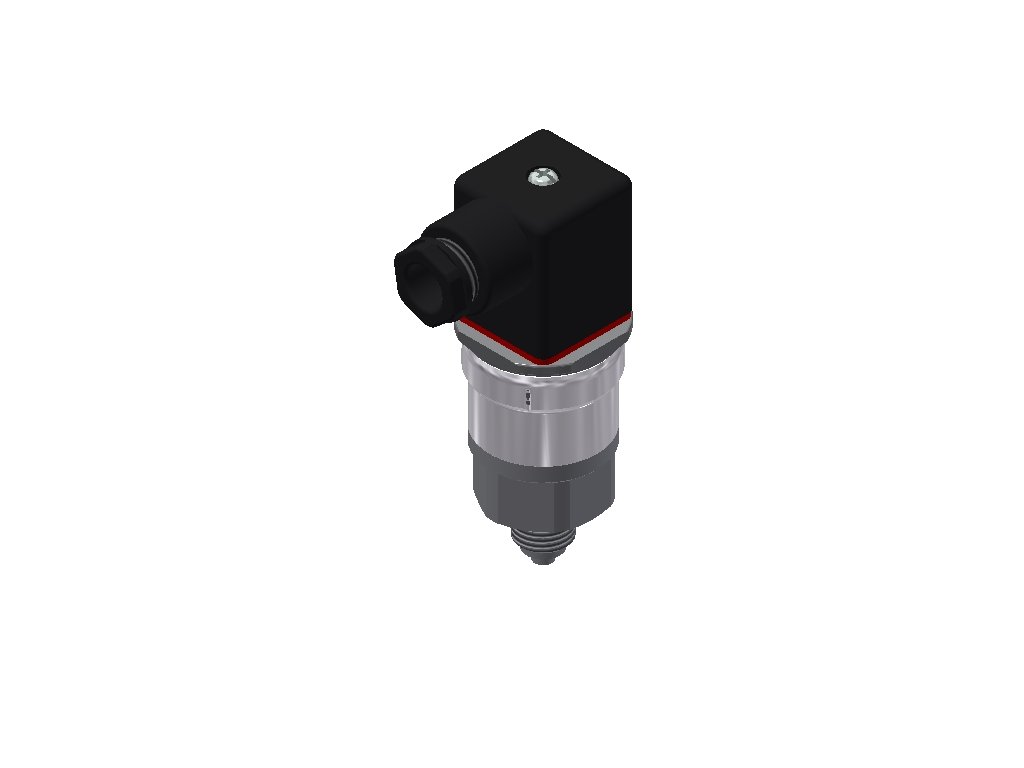

Tlakový snímač s vysílačem, MBS 1700, 0 bar - 10 bar, 0 psi - 145 psi
Kód: 060G6101Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | MBS 1700 / MBS 1750 |
|---|---|
| Hmotnost: | 0.15 kg |
| EAN: | 5702423295357 |
| Medium temperature range [°C] [max]: | 85 |
| Ambient temperature range [°F] [min]: | -40 |
| Readable (EF024476): | FALSE |
| Cable length (EF000536): | 0 |
| Electrical connection size: | Pg 9 |
| UL mark: | Yes |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Flush diaphragm: | No |
| Specification key: | MBS 1700-2011-A1AB04-0 |
| Height (EF000040): | 54 |
| SCIP dossier no.: | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Compensated temp. range [°F] [max]: | 176 |
| Electrical connection (EF003701): | Plug |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | EN 837 |
| Width (EF000008): | 54 |
| Measuring element (EF021417): | Piezo |
| Medium temperature range [°C] [min]: | -40 |
| Accuracy, typical [±FS%]: | 0.5 |
| Electrical connection: | Angular connector |
| Output signal: | Current |
| Suitable for gases (EF007249): | TRUE |
| Enclosure rating IP: | IP65 |
| Pressure reference: | Gauge (relative) |
| Ambient temperature range [°C] [min]: | -40 |
| Accuracy, max. [±FS%]: | 1.00 |
| Compensated temp. range [°C] [max]: | 80 |
| Suitable for air (EF021466): | TRUE |
| Max. overpressure (EF022533): | 60.0 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Male |
| Suitable for water (EF020334): | TRUE |
| Non-linearity BFSL [±FS%]: | 0.50 |
| Measuring range (EF001836): | 0.00-10.00 |
| Depth (EF000049): | 140 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Output signal [mA] [min]: | 4 |
| Medium temperature range [°F] [min]: | -40 |
| International Article Number: | 5702423295357 |
| - common: | Pin 2 |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/4 inch |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 10.00 |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized, CE |
| With temperature sensor (EF006034): | TRUE |
| Pressure range [psi] [max]: | 145.00 |
| Feed pressure (EF020276): | 10.00 |
| Flange compression class (EF020149): | Other |
| Electrical conn. Male/Female: | Male and Female |
| Suitable for steam (EF020335): | TRUE |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contains batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| With display (EF000458): | FALSE |
| CE mark: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Medium temperature range [°F] [max]: | 185 |
| Intrinsically safe: | No |
| Pulse-snubber: | No |
| Pressure range [bar] [min]: | 0.00 |
| Low Clipping level: | 3.60 |
| Ambient temperature range [°C] [max]: | 85 |
| Supply voltage (EF000104): | 32.00 |
| Suitable for glycol (EF002310): | TRUE |
| High Clipping Level: | 22.40 |
| Degree of protection (IP) (EF005474): | IP65 |
| Overload pressure max. [bar]: | 60.0 |
| SCIP dossier product name: | AKS/MBS |
| Output signal (EF000506): | 4 - 20 mA |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil (EF021672): | TRUE |
| Suitable for ammonia (EF021671): | TRUE |
| Adj. zero point and span: | No |
| Response time max. [ms]: | 4 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 14 |
| Supply voltage [V] DC [min]: | 9.00 |
| Ambient temperature range [°F] [max]: | 185 |
| Compensated temp. range [°C] [min]: | 0 |
| Explosion-proof (EF004663): | FALSE |
| Compensated temp. range [°F] [min]: | 32 |
-
