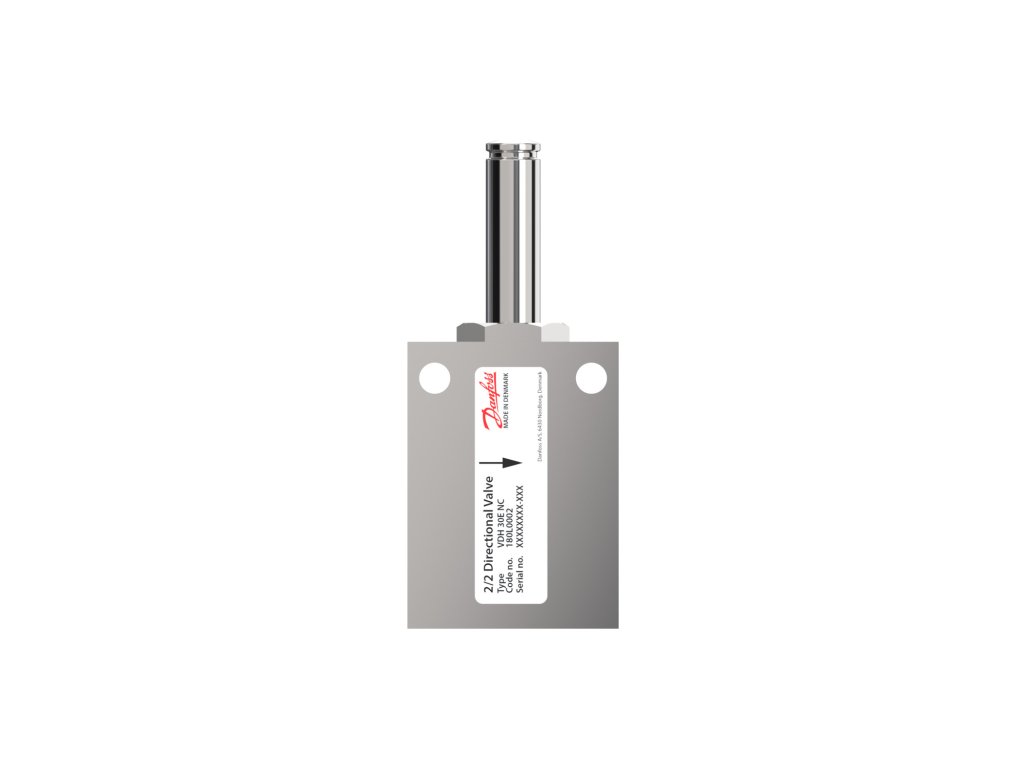

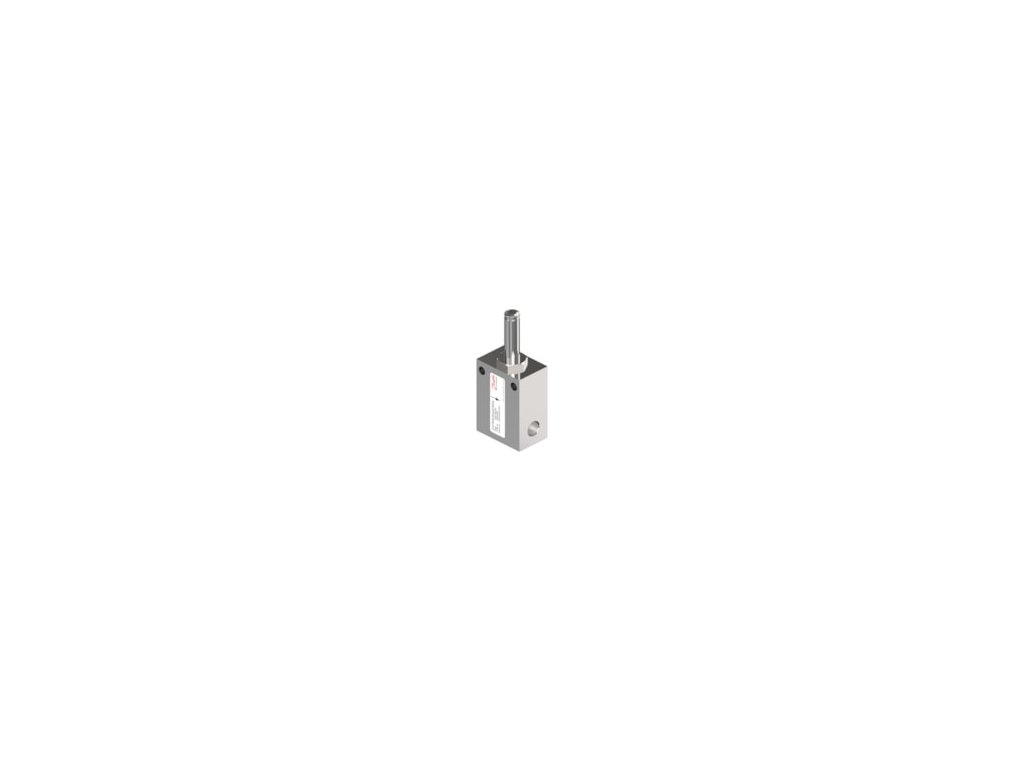

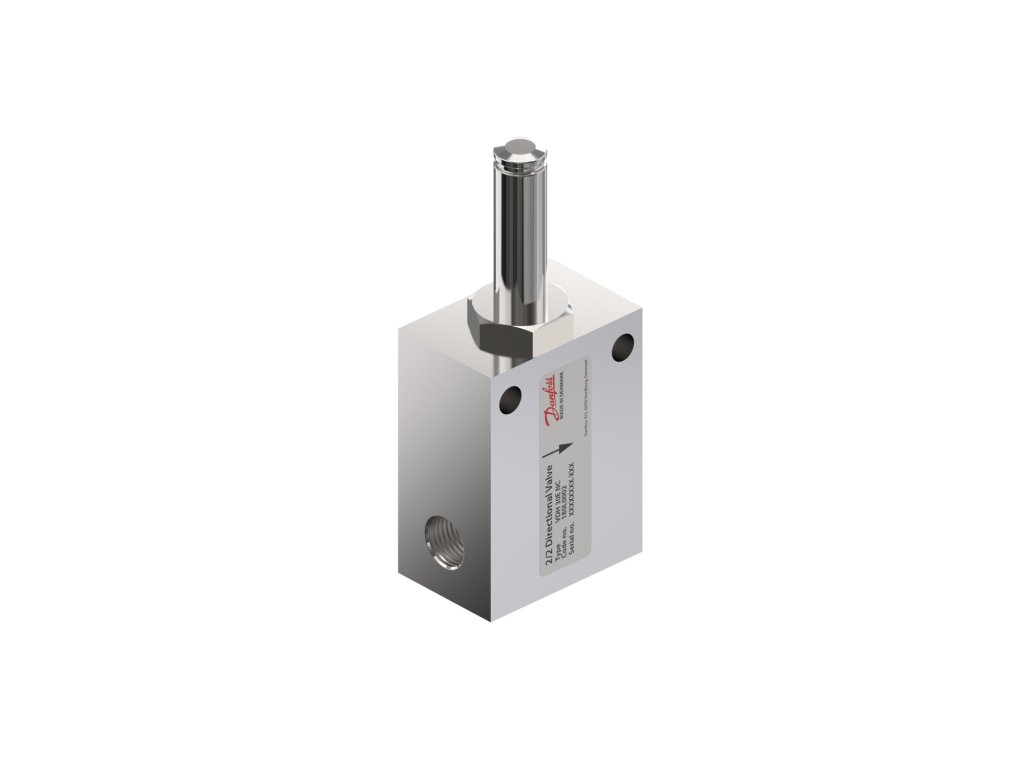

Solenoid operated valves, VDH 30 E NC, Hydraulic

Kód: 180L0002

Neohodnoceno

23 259 Kč 19 222 Kč bez DPH

Momentálně nedostupné

Popis produktu není dostupný

Kategorie:	VDH 2/2
Hmotnost:	1.15 kg
EAN:	5715162673546
Flow [gpm] [Min]:	0.300
Closing Time [ms] [Max]:	350
Actuator size [mm]:	13.5
Connection standard:	Cetop 3
UL mark:	No
Media temperature [°F] [Max]:	122
Media temperature [°F] [Min]:	37
Height (EF000040):	96
SCIP dossier no.:	16ae06b7-4c9f-4b8d-b8f7-914d15943505
Piston diameter Ø [mm]:	18
Opening time [ms] [Max]:	150
Function:	NC
Width (EF000008):	96
Operating pressure [barg] [Max]:	140
Flow [l/min] [Max]:	30.00
Operating pressure [barg] [Min]:	4
Flow [l/min] [Min]:	1.00
Operating pressure [psig] [Max]:	2030
Flow [gpm] [Max]:	8.000
Operating pressure [psig] [Min]:	50
Serviceable:	Yes
Seal Material:	FKM
Operation:	Pilot operated
Material type:	Neutral media
Connection type:	Thread
Direction:	Straightway
Parts Program name:	VDH
Body material:	AISI 304
Application:	Hydraulic
Media temperature [°C] [Min]:	3
Type of accessory/spare part (EF000215):	Other
Outlet connection size [in]:	3/8 in
Product description:	Solenoid operated valves
China RoHS compliance:	Out of scope
In scope of WEEE:	No
Type designation:	VDH 30 E NC
REACH Candidate List substances:	Lead (CAS no. 7439-92-1)
Inlet connection size [in]:	3/8 in
Number of ways:	2/2
Contains batteries:	No
CE mark:	No
EU RoHS exemption clause:	No
EU RoHS compliance:	Yes
Media temperature [°C] [Max]:	50
Spare part (EF013237):	TRUE
Accessory (EF013236):	TRUE
SCIP dossier product name:	VDH30E 2/2 NC Valves
