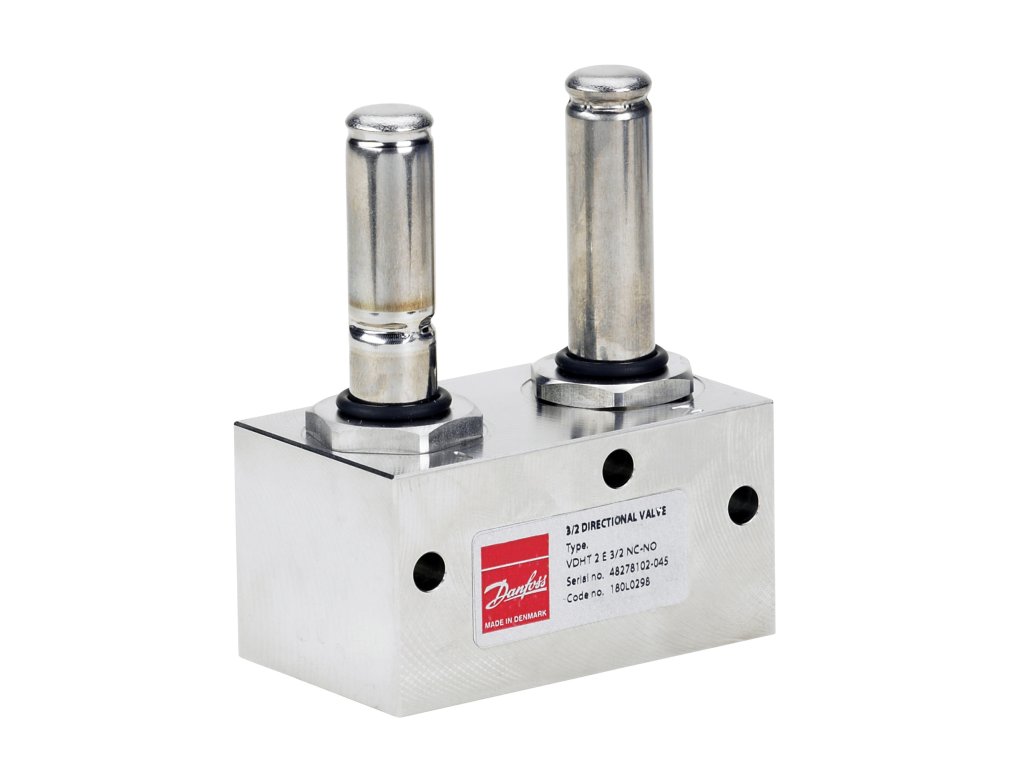

Solenoid operated valves, VDHT 2 E 3/2 NC-NO, Industrial

Kód: 180L0298

Neohodnoceno

20 780 Kč 17 174 Kč bez DPH

Momentálně nedostupné

Popis produktu není dostupný

Kategorie:	VDHT 3/2
Hmotnost:	1.25 kg
EAN:	5715162673805
Flow [gpm] [Min]:	0.000
Closing Time [ms] [Max]:	250
Closing Time [ms] [Min]:	250
Actuator size [mm]:	13.5
Connection standard:	BSP
Media temperature [°F] [Max]:	122
Media temperature [°F] [Min]:	37
Height (EF000040):	128
Drain connection size [in]:	0.250
Opening time [ms] [Max]:	250
Function:	NC, NO
Opening time [ms] [Min]:	250
Width (EF000008):	128
Operating pressure [barg] [Max]:	80
Flow [l/min] [Max]:	2.00
Operating pressure [barg] [Min]:	1
Flow [l/min] [Min]:	0.00
Operating pressure [psig] [Max]:	1150
Flow [gpm] [Max]:	0.500
Operating pressure [psig] [Min]:	15
Serviceable:	Yes
Seal Material:	FKM
Operation:	Direct
Material type:	Neutral media
Connection type:	Thread
Direction:	Straightway
Parts Program name:	VDHT
Body material:	AISI 304
Application:	Industrial
Media temperature [°C] [Min]:	2
Type of accessory/spare part (EF000215):	Other
Outlet connection size [in]:	1/4 in
Product description:	Solenoid operated valves
China RoHS compliance:	Out of scope
In scope of WEEE:	No
Type designation:	VDHT 2 E 3/2 NC-NO
REACH Candidate List substances:	No
Inlet connection size [in]:	1/4 in
Number of ways:	3/2
Contains batteries:	No
EU RoHS exemption clause:	No
EU RoHS compliance:	Yes
Media temperature [°C] [Max]:	50
Spare part (EF013237):	TRUE
Accessory (EF013236):	TRUE
