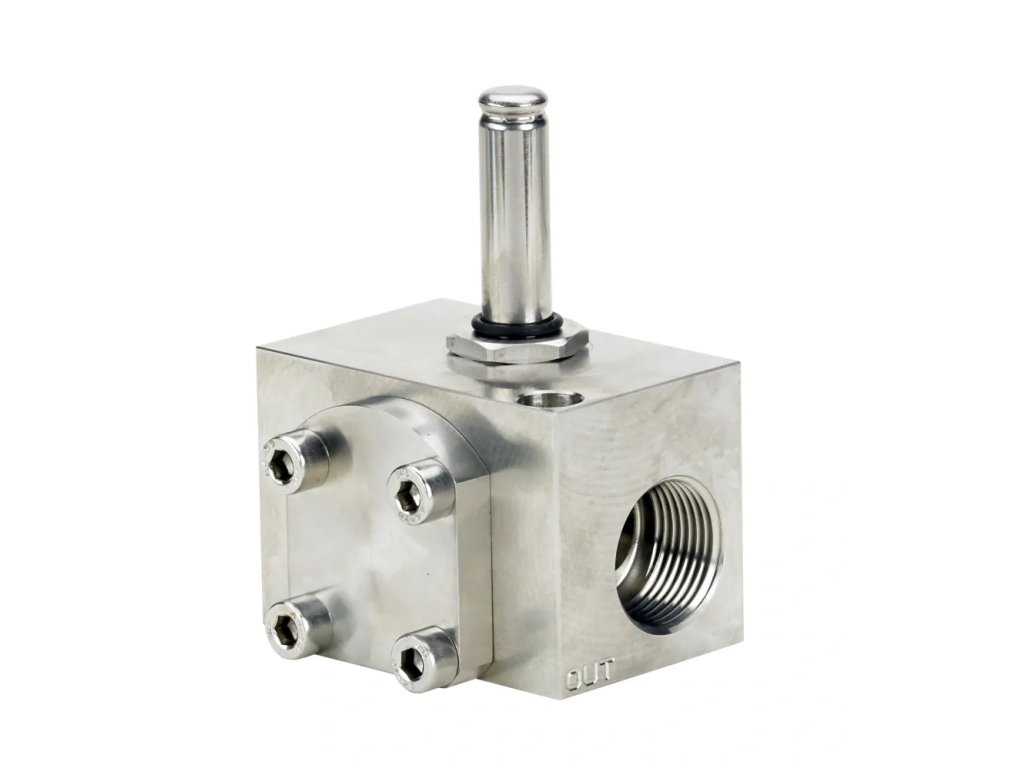

Solenoid operated valves, VDHT 1 ED NC, Industrial

Kód: 180L1022

Neohodnoceno

21 582 Kč 17 836 Kč bez DPH

Momentálně nedostupné

Popis produktu není dostupný

Kategorie:	VDHT BSP
Hmotnost:	2.21 kg
EAN:	5715162672495
Flow [gpm] [Min]:	0.000
Closing Time [ms] [Max]:	2000
Closing Time [ms] [Min]:	1200
Actuator size [mm]:	13.5
Connection standard:	BSP
UL mark:	Yes
Media temperature [°F] [Max]:	194
Media temperature [°F] [Min]:	36
Height (EF000040):	130
Piston diameter Ø [mm]:	35
Opening time [ms] [Max]:	900
Function:	NC
Opening time [ms] [Min]:	500
Width (EF000008):	138
Operating pressure [barg] [Max]:	140
Flow [l/min] [Max]:	150.00
Operating pressure [barg] [Min]:	4
Flow [l/min] [Min]:	0.00
Operating pressure [psig] [Max]:	2030
Flow [gpm] [Max]:	40.000
Operating pressure [psig] [Min]:	51
Serviceable:	Yes
Seal Material:	FKM
Operation:	Pilot operated
Material type:	Neutral media
Connection type:	Thread
Direction:	Manifold
Parts Program name:	VDHT
Body material:	AISI 304
Application:	Industrial
Media temperature [°C] [Min]:	2
Type of accessory/spare part (EF000215):	Other
Outlet connection size [in]:	1 in
Product description:	Solenoid operated valves
China RoHS compliance:	Out of scope
In scope of WEEE:	No
Approval:	UL
Type designation:	VDHT 1 ED NC
REACH Candidate List substances:	No
Inlet connection size [in]:	1 in
Number of ways:	2/2
Contains batteries:	No
EU RoHS exemption clause:	No
EU RoHS compliance:	Yes
Media temperature [°C] [Max]:	90
Spare part (EF013237):	TRUE
Accessory (EF013236):	TRUE
