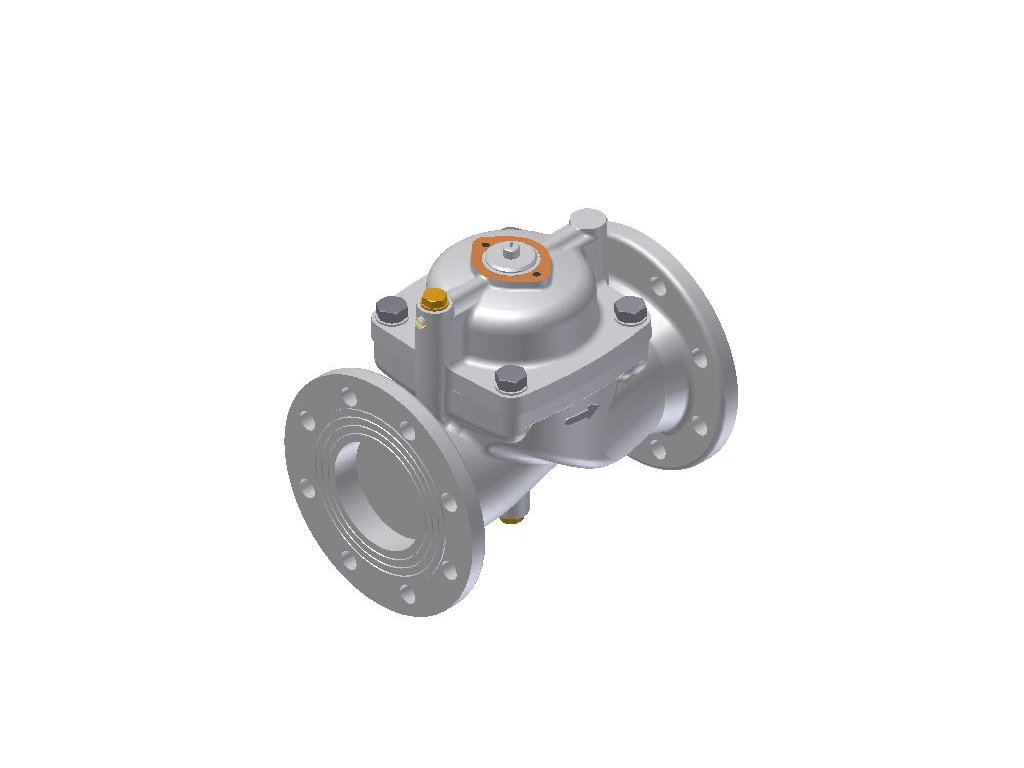

Těleso ventilu pro regulaci vody, WVH
Kód: 016D5100Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Ventily WVTS |
|---|---|
| Hmotnost: | 31.08 kg |
| EAN: | 5702422046295 |
| Medium temperature range [°C] [max]: | 90 |
| China RoHS compliance: | Out of scope |
| Packing format: | Single pack |
| Kv value [m³/h]: | 125.000 |
| Approval: | EAC, LLC CDC TYSK, PED, RoHS, RoHS China |
| Differential pressure [bar] [min]: | 0.300 |
| SCIP dossier no.: | fc3470cc-5810-44ef-89ac-d393613841da |
| Material quality (EF001257): | Other |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 4.000 |
| Contains batteries: | No |
| Max. test pressure [psig]: | 232.0 |
| With thermometer (EF002167): | FALSE |
| Media: | Neutral media |
| Medium temperature range [°C] [min]: | -25 |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 194 |
| With insulation (EF021057): | FALSE |
| Serviceable: | Water valve spare parts |
| Orifice size fraction [in]: | 4 in |
| Surface protection (EF000139): | Other |
| Used for product: | WVS 100, WVTS 100 |
| Differential pressure [psi] [max]: | 58.000 |
| Max. test pressure [bar] Pe: | 16.0 |
| Product accessories: | Flanges, Generic accessories |
| Connection type: | Weld flange |
| Parts included: | Flange bolts, Flange gaskets, Screws for pilot valve, Valve body |
| Connection size [in]: | 4 in |
| SCIP dossier product name: | WV Valves |
| With position indicator (EF022469): | FALSE |
| Parts Program name: | WVS, WVTS |
| Body material: | Cast iron |
| Differential pressure [psi] [min]: | 4.300 |
| Quantity per packing format: | 1 |
| Orifice size [mm]: | 100.00 |
| Medium temperature range [°F] [min]: | -13 |
| Max. Working Pressure [psig]: | 145 |
-
