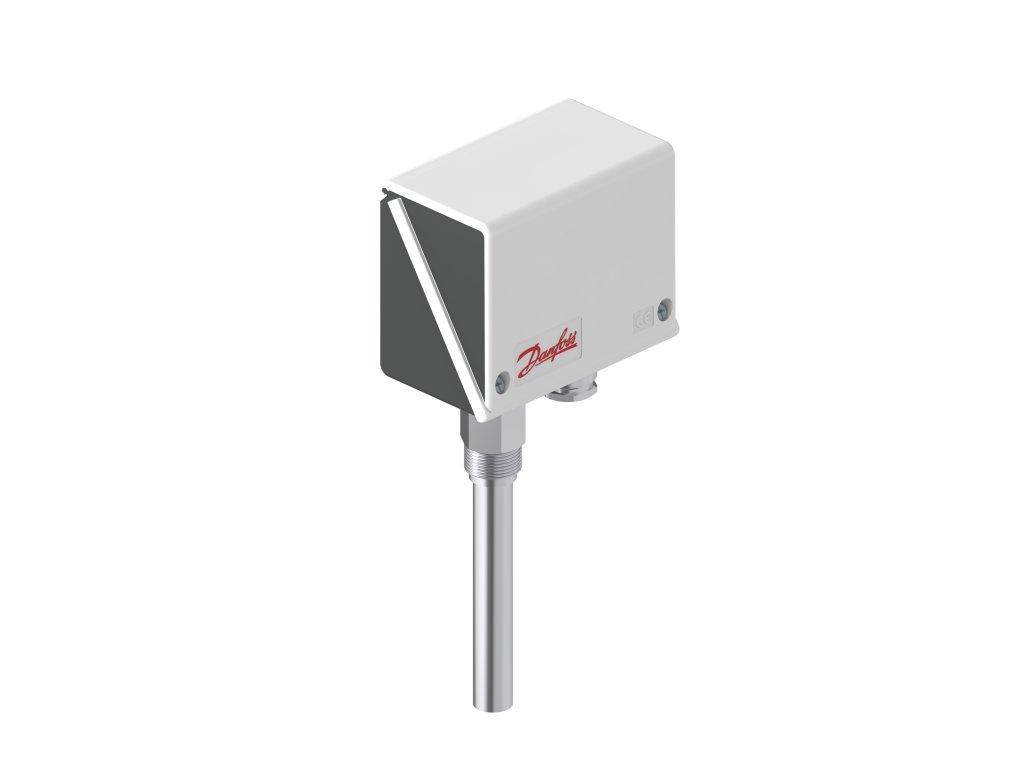

Termostat, KP78
Kód: 060L122966Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | KP |
|---|---|
| Hmotnost: | 0.71 kg |
| EAN: | 5702423206384 |
| Electrical conn. comments: | Metal cable gland |
| Diff. @ Max. range setting[°C] [min]: | 7.0 |
| Ambient temperature range [°F] [min]: | -40 |
| Diff. @ Min. range setting[°C] [min]: | 4.5 |
| Max. sensor temperature [°F]: | 302.0 |
| Electrical connection size: | Pg 13.5 |
| UL mark: | Yes |
| Amb. Temp. Note: | 80 °C/176 °F for max 120 min |
| Height (EF000040): | 142 |
| Contact function: | SPDT |
| SCIP dossier no.: | c1a694ec-501f-43db-83d2-8a9a314459e0 |
| Charge type: | Adsorption |
| Diff. @ Min. range setting[°C] [max]: | 20.0 |
| Width (EF000008): | 142 |
| Electrical connection: | Screwed cable entry |
| Temperature range [°F] [min]: | 86 |
| Differential type: | Adjustable |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP55 |
| Ambient temperature range [°C] [min]: | -40 |
| Diff. @ Max. range setting[°C] [max]: | 16.5 |
| Sensor size (Ø x L) [in]: | 1/2 x 2 1/2 in |
| Sensor pocket length min. [in]: | 6 9/16 in |
| Depth (EF000049): | 142 |
| Contact rating: | AC15=10 A, 400 V, AC1=16 A, 400 V, AC3=16 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V |
| Diff. @ Max. range setting [K] [min]: | 7.0 |
| IFTTT support available (EF011072): | FALSE |
| Compatible with Apple HomeKit (EF014925): | FALSE |
| Compatible with Google Assistant (EF014926): | FALSE |
| Diff. @ Min. range setting [K] [min]: | 4.5 |
| Sensor pocket length min. [mm]: | 110 |
| Product description: | Thermostat |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-4/-5 |
| Packing format: | Multi pack |
| Max. sensor temperature [°C]: | 150 |
| Approval: | BV, C UL US UL353, C UL US UL873, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LVD, RINA, RMRS, RoHS China |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1), Cadmium oxide (CAS no.1306-19-0) |
| Electrical connection standard: | DIN 40430 |
| Diff. @ Max. range setting [K] [max]: | 16.5 |
| Contains batteries: | No |
| CE mark: | Yes |
| EN 60947 wiring properties: | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Sensor size (Ø x L) [mm]: | 13 x 63 mm |
| Ambient temperature range [°C] [max]: | 65 |
| Degree of protection (IP) (EF005474): | IP55 |
| Temperature range [°F] [max]: | 194 |
| UL approval file name: | E31024, MH27572 |
| SCIP dossier product name: | KP KPS KPU Thermostat |
| Temperature range [°C] [min]: | 30 |
| EN 60947 electrical properties: | Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 16A |
| Diff. @ Min. range setting [K] [max]: | 20.0 |
| Connection for pocket or hose: | M 18 x 1.5 |
| Sensor type: | Rigid sensor |
| Compatible with Amazon Alexa (EF014927): | FALSE |
| Temperature range [°C] [max]: | 90 |
| Quantity per packing format: | 10 |
| Ambient temperature range [°F] [max]: | 150 |
| Explosion-proof (EF004663): | FALSE |
-
Pressure switch and thermostat type KP and KPI: Datový list
-
Thermostats Type KP: Datový list
-
Thermostat type KP: Datový list
-
Thermostat KP 61 – KP 85: Instalační příručka
-
Tlakový spínač a termostat KP a KPI: Datový list
