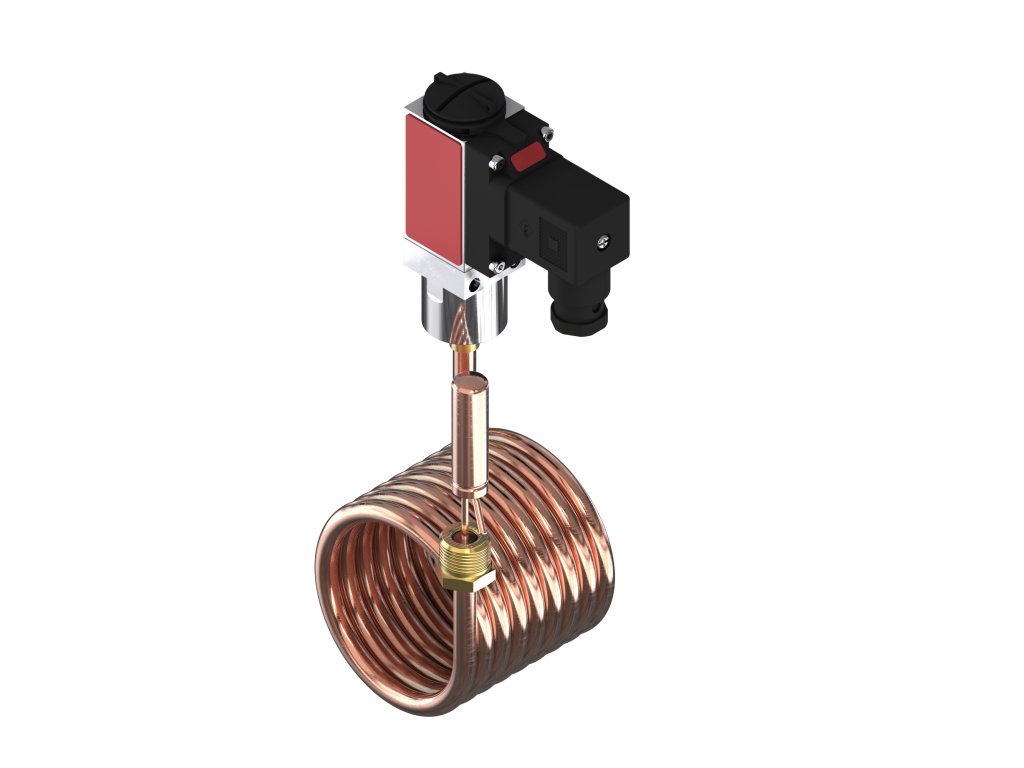

Termostat, MBC 8100
Kód: 061B810866Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | MBC |
|---|---|
| Hmotnost: | 0.8 kg |
| EAN: | 5702428366793 |
| Ambient temperature range [°F] [min]: | -40 |
| Cap. tube length fraction [in]: | 196 7/8 in |
| Max. sensor temperature [°F]: | 428.0 |
| Electrical connection size: | Pg 11 |
| Specification key: | 2431-1A05000 |
| Height (EF000040): | 140 |
| Contact function: | SPDT |
| SCIP dossier no.: | 18ff26a2-cbcf-44c1-8f28-74e482b38eed |
| Charge type: | Adsorption |
| Width (EF000008): | 140 |
| Equipment: | Armored cap. tube |
| Electrical connection: | DIN-plug |
| Temperature range [°F] [min]: | 158 |
| Differential type: | Fixed (max. value) |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP65 |
| Ambient temperature range [°C] [min]: | -40 |
| Differential (FS) [K]: | 5.0 |
| Product accessories: | Switches accessories |
| Sensor size (Ø x L) [in]: | 1/2 x 3 in |
| Sensor pocket length min. [in]: | 4 1/3 in |
| Depth (EF000049): | 140 |
| Contact rating: | AC15=0.5 A, 250 V, DC13=12 W, 125 V |
| IFTTT support available (EF011072): | FALSE |
| Compatible with Apple HomeKit (EF014925): | FALSE |
| Compatible with Google Assistant (EF014926): | FALSE |
| Sensor pocket length min. [mm]: | 110 |
| Product description: | Thermostat |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-5 |
| Packing format: | Multi pack |
| Max. sensor temperature [°C]: | 220 |
| Approval: | ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS compliance: | Out of scope |
| Sensor size (Ø x L) [mm]: | 13 x 75 mm |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP) (EF005474): | IP65 |
| Temperature range [°F] [max]: | 248 |
| SCIP dossier product name: | MBC 8100 8000 Temperature Switch |
| Temperature range [°C] [min]: | 70 |
| Connection for pocket or hose: | M 18 x 1.5 |
| Sensor type: | Remote bulb |
| Compatible with Amazon Alexa (EF014927): | FALSE |
| Temperature range [°C] [max]: | 120 |
| Quantity per packing format: | 6 |
| Ambient temperature range [°F] [max]: | 158 |
| Capillary tube length [mm]: | 5000 |
| Explosion-proof (EF004663): | FALSE |
| Armoring: | Yes |
-
Heavy duty thermostat, types MBC 8000 and MBC 8100: Instalační příručka
-
Thermostat type MBC 8000 and MBC 8100: Datový list
